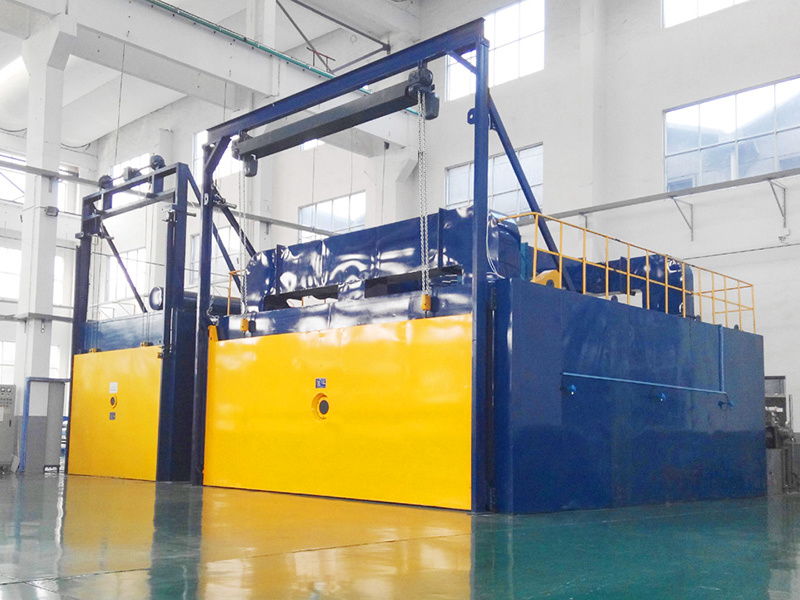

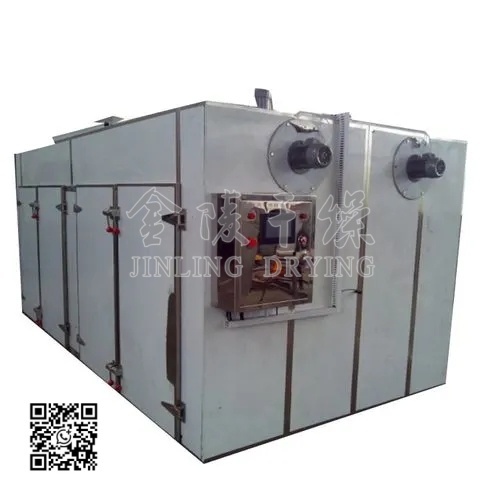

Jinling Technology manufactures advanced tray dryers using steam or electricity as heat sources. They feature efficient heat transfer, energy-saving recirculation, and customizable control systems. The dryers support a wide range of temperatures (50-350°C) and heat sources like thermal oil and natural gas. Non-standard designs are available for special needs like handling corrosive materials.

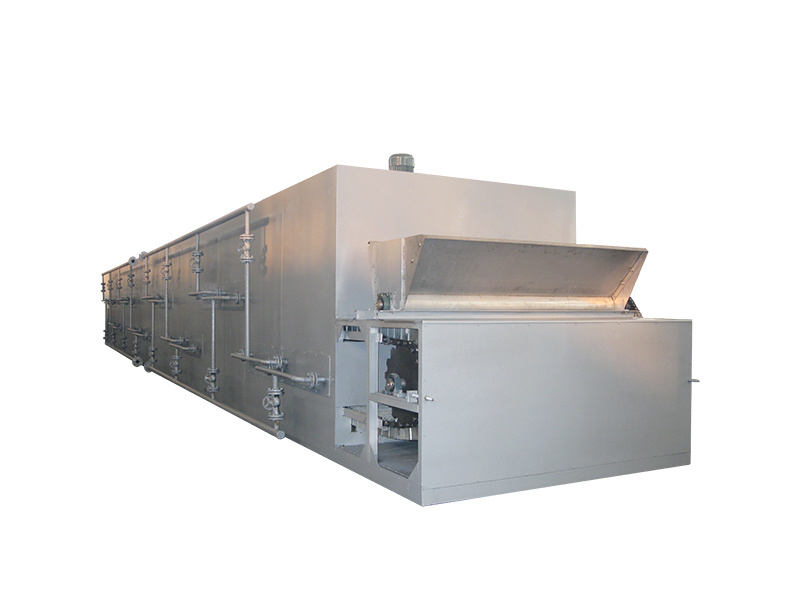

The material is evenly spread on the mesh belt by the feeder. The mesh belt is generally made from 12 -60 mesh stainless steel wire, which is dragged and moved in the dryer by the transmission device.
Principle: Fluidization, Filtration, Heat Transfer

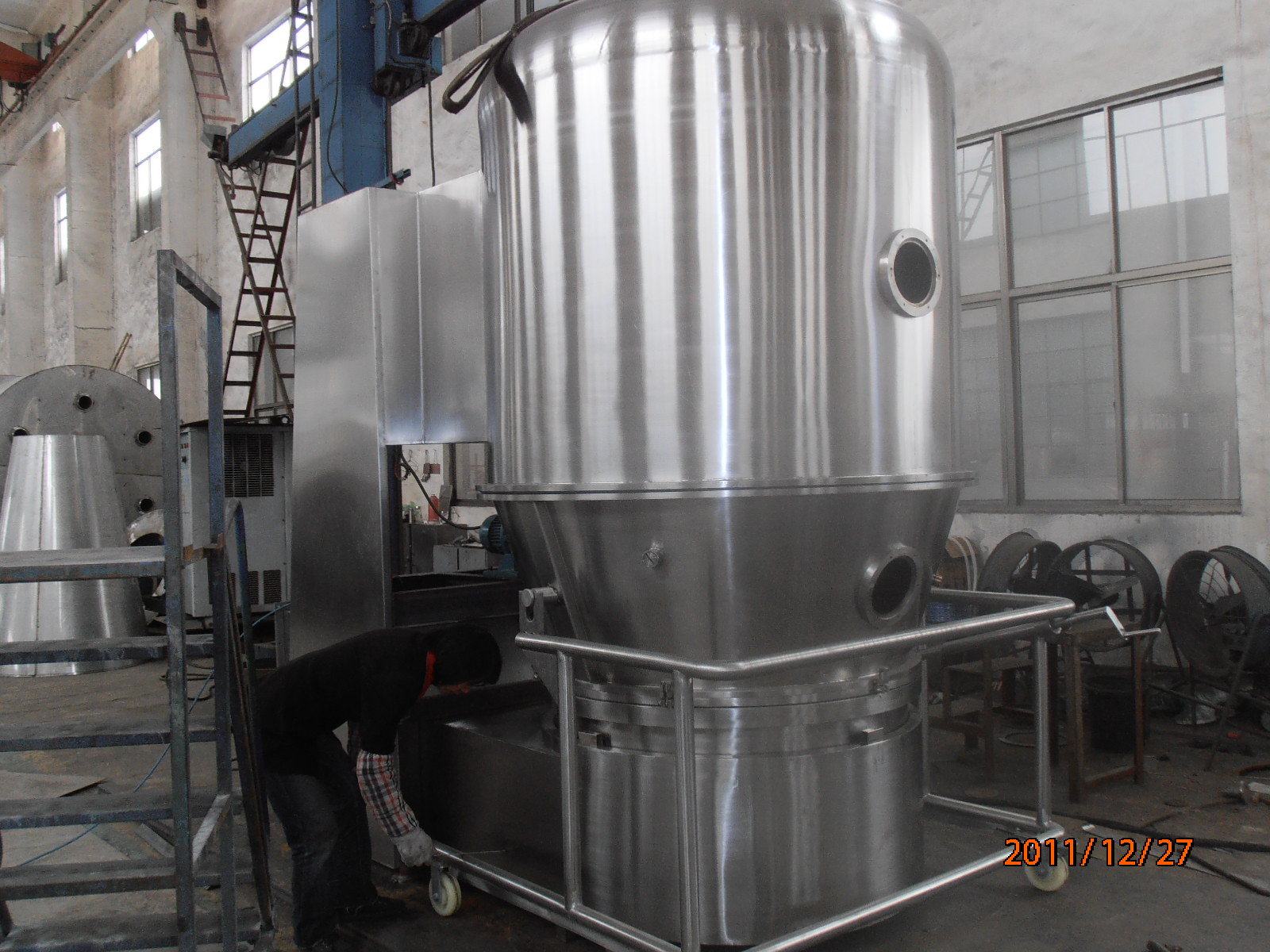

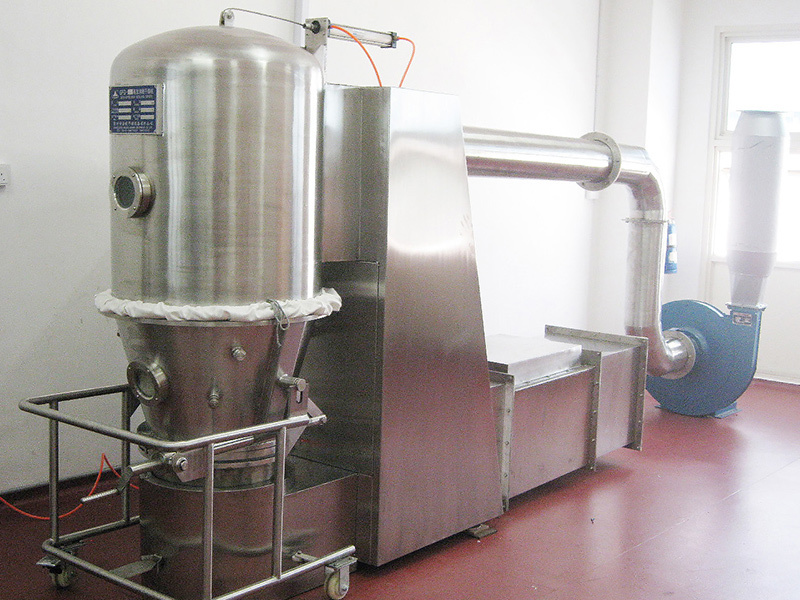

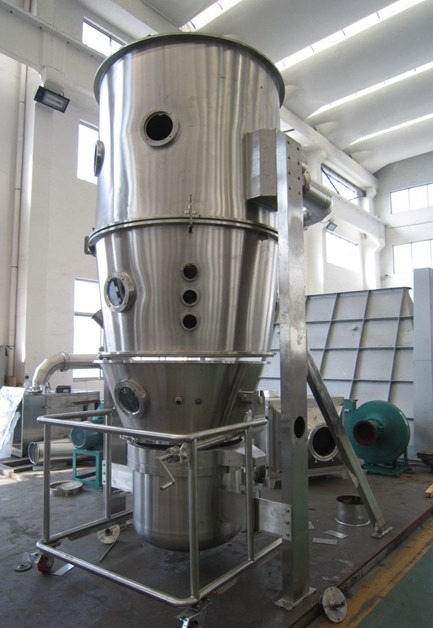

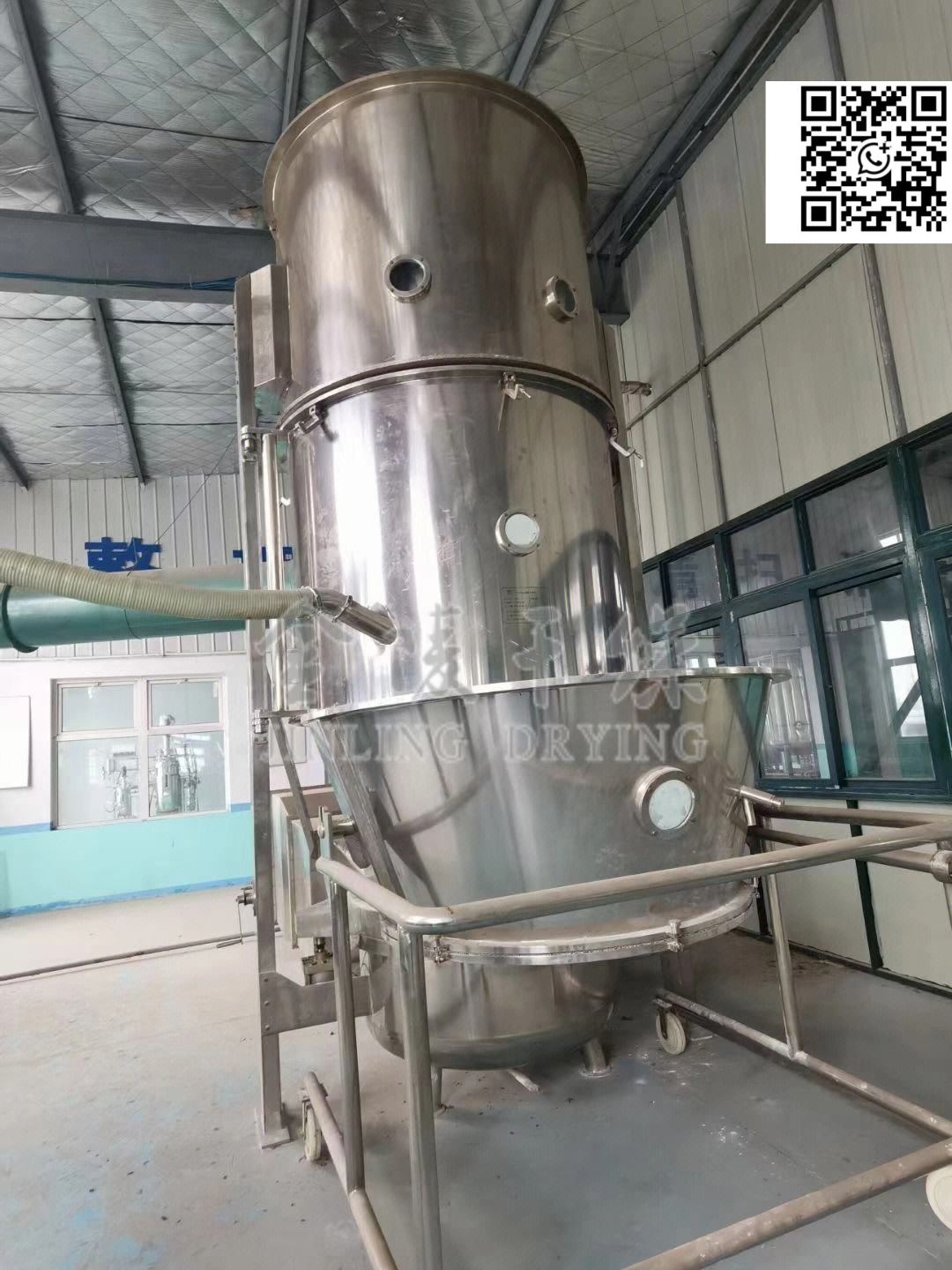

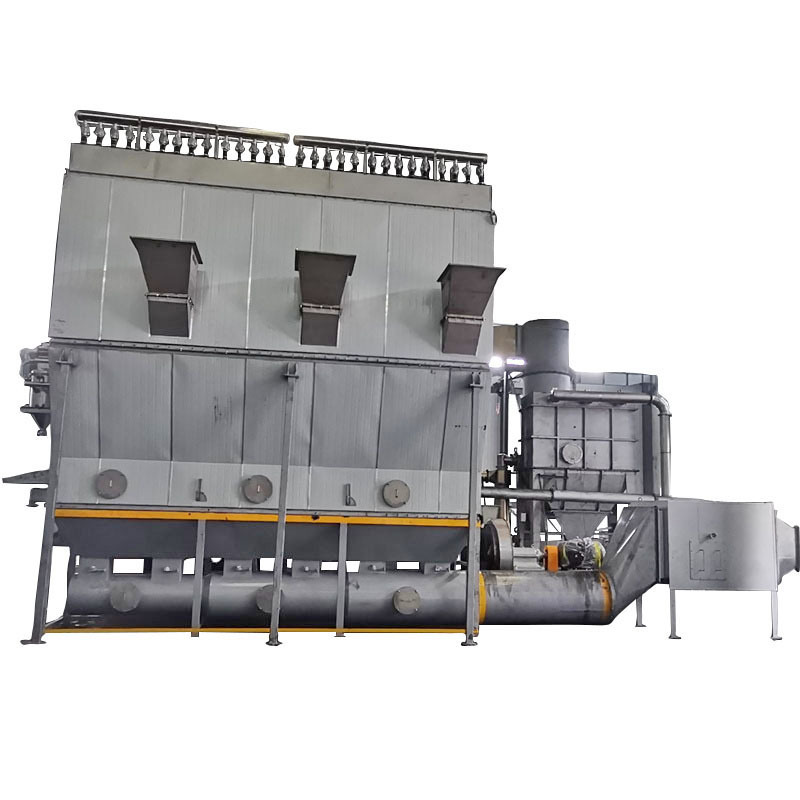

Filtered, heated air enters the dryer’s base, ascending through a mesh plate and wet material. Fluidized drying is achieved via stirring/negative pressure in the chamber. Moisture-laden air passes through dust-collecting cloth bags, expelled by an induced draft fan, ensuring material dehydration.

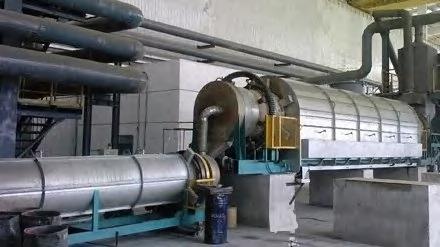

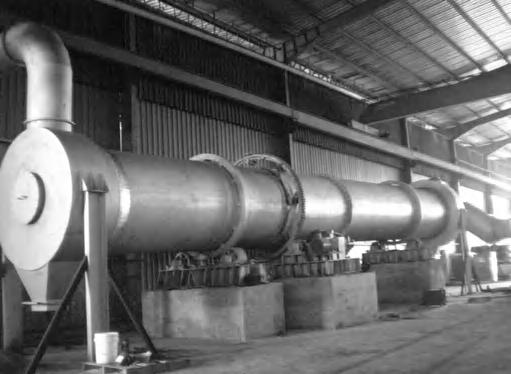

Rotary drum dries sludge using waste heat, special crushers for quick water evaporation. Larger particles stay longer; exhaust treated to meet standards. Innovations: tailored crushing, sealing, bearing cooling, indirect heating. Ensures efficiency, longevity, compliance.
Falling Film Evaporator: Efficiently evaporates liquids in food, pharmaceutical, chemical industries. Utilizes thin film, vacuum, gravity for rapid, controlled evaporation. Preserves heat-sensitive materials, enhances energy efficiency via heat recovery.

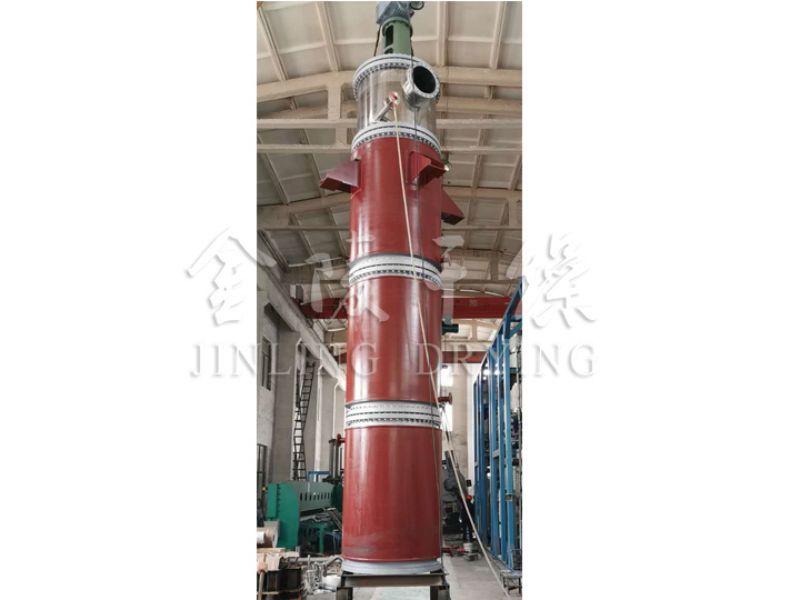

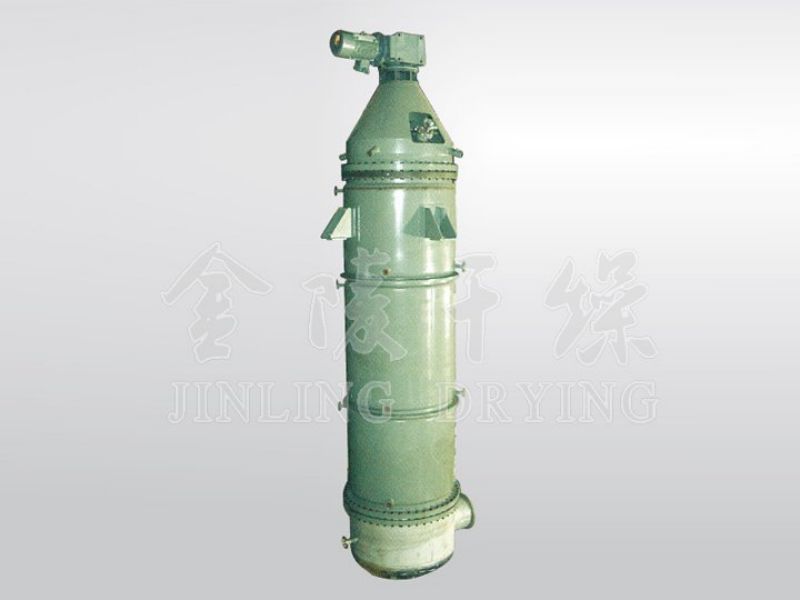

Jinling Technology specializes in thin film evaporators, featuring high heat transfer efficiency and short heating times (5-10 sec), ideal for heat-sensitive materials. Equipped with centrifugal rotors and movable scrapers, it enhances evaporation by 40-69%. Various scraper types are available for different needs. The system supports automatic, continuous production under sealed conditions, requiring minimal space and easy maintenance. Ideal for industries like pharmaceuticals and food processing.
Jinling Technology specializes in thin film evaporators, featuring high heat transfer efficiency and short heating times (5-10 sec), ideal for heat-sensitive materials. Equipped with centrifugal rotors and movable scrapers, it enhances evaporation by 40-69%. Various scraper types are available for different needs. The system supports automatic, continuous production under sealed conditions, requiring minimal space and easy maintenance. Ideal for industries like pharmaceuticals and food processing.

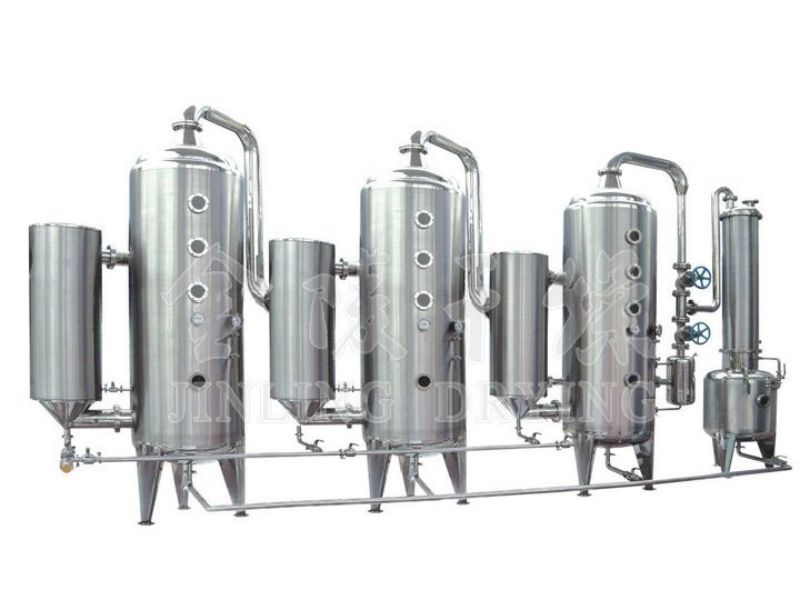

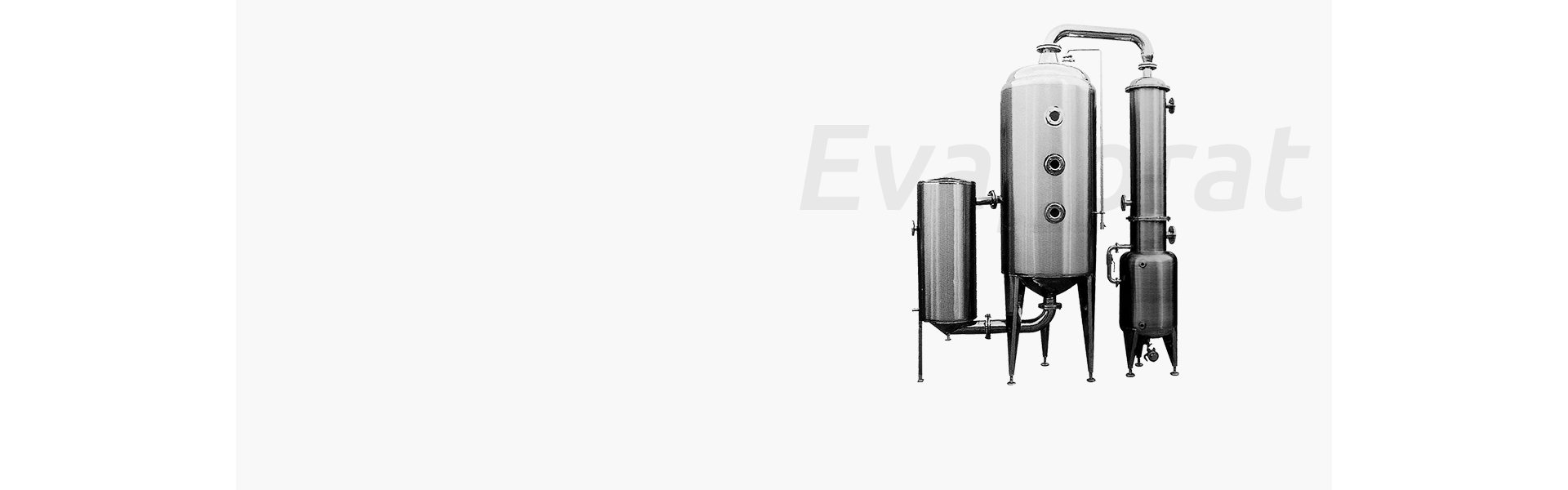

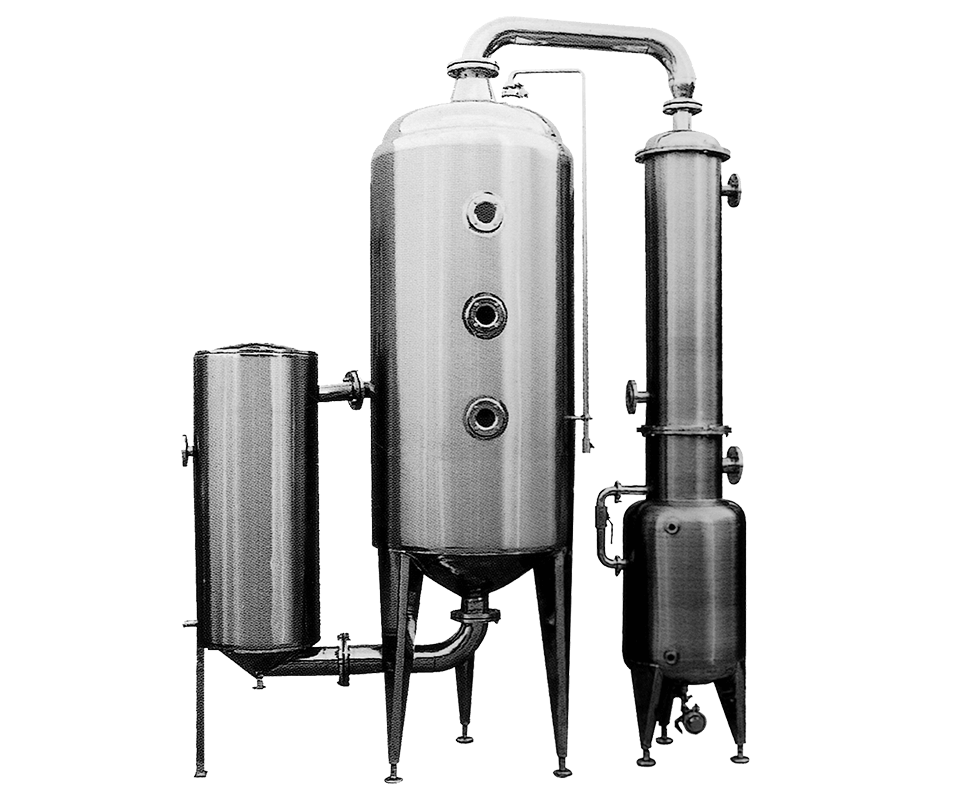

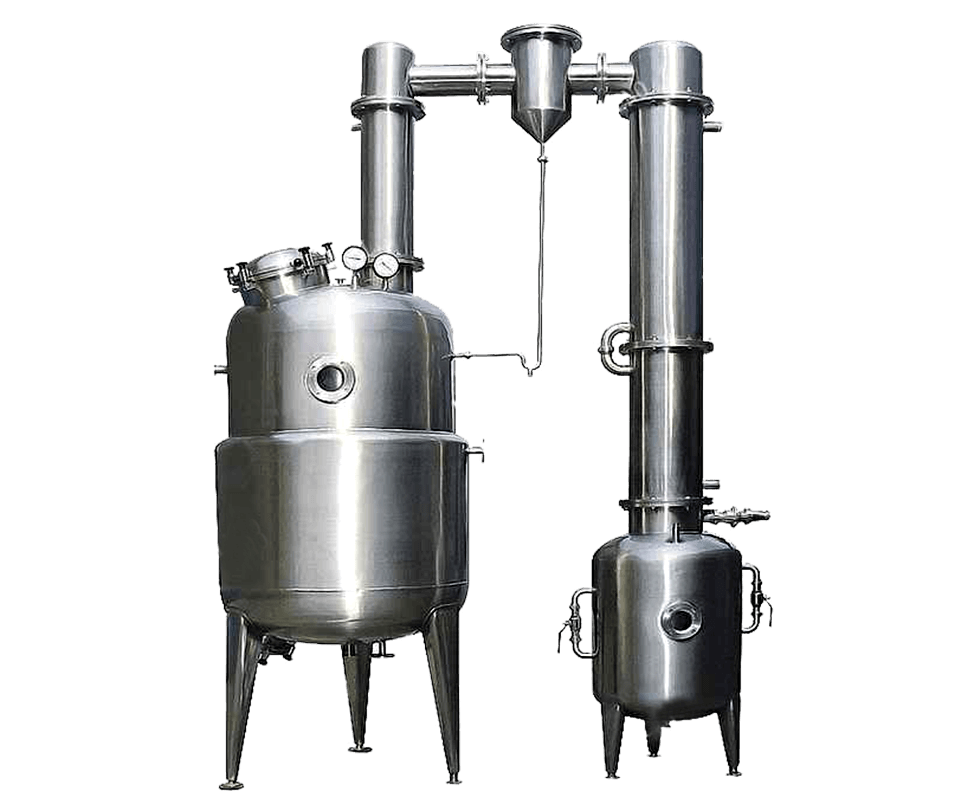

Vacuum Evaporator: Comprises evaporator tank (jacket heating), condenser, vapor-liquid separator, cooler (coil), and receiver. Used in pharmaceutical, food, chemical industries for liquid concentration, alcohol recovery, and simple reflux extraction.

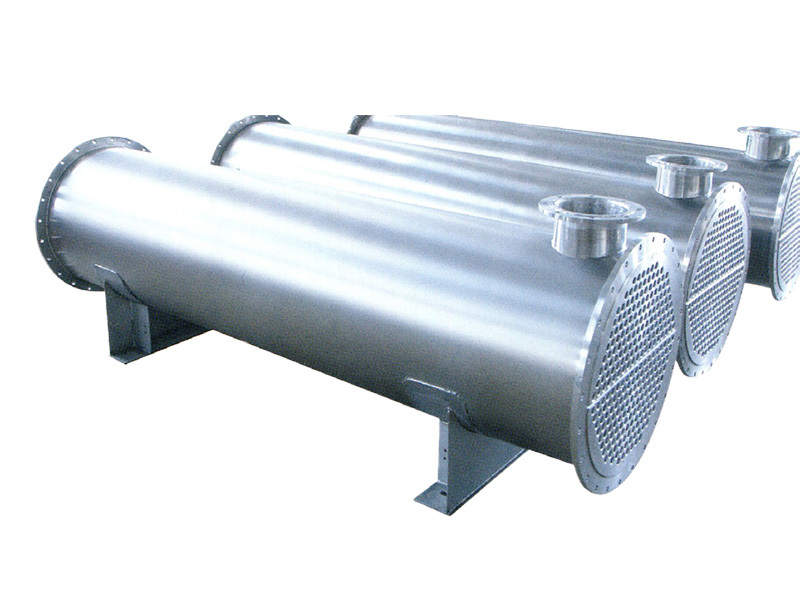

Pressure vessels are essential for storing and transporting substances under pressure. Jiangsu Jinling provides customized, high-quality solutions tailored to chemical, oil, pharmaceutical, and food industries. Advanced engineering ensures durability, safety, and efficiency. Contact us for reliable pressure vessel services.

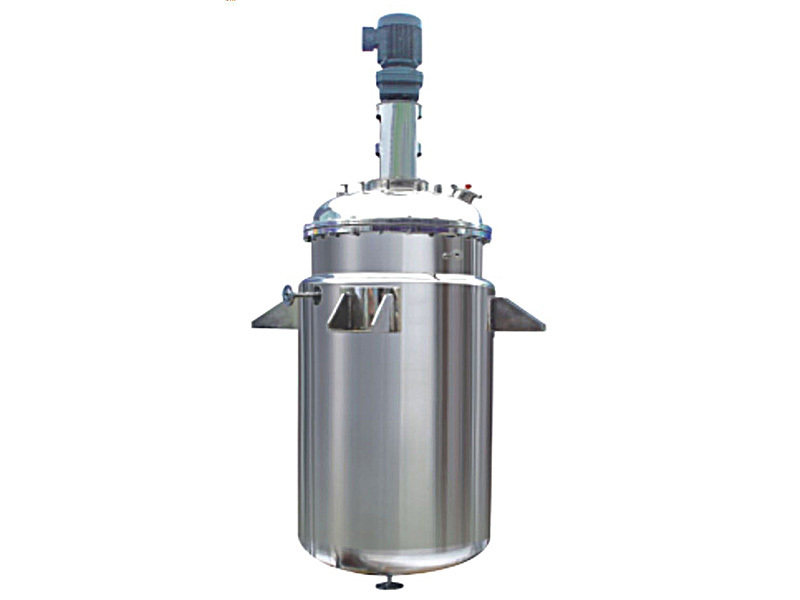

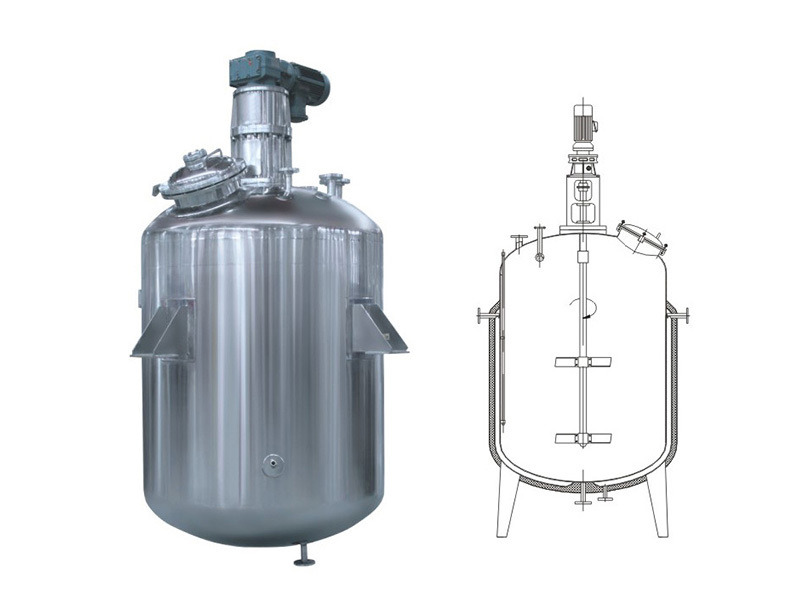

Reaction Tank: Applications and Key Features
Reaction tanks are essential in pharmaceutical, chemical, food, and light engineering industries for processes like hydrolysis, neutralization, crystallization, distillation, and evaporation. They feature anchor, frame, and paddle mixing mechanisms, mechanical sealing, and various heating/cooling systems (steam, electric, thermal oil). Customizable, resistant to acids, alkalis, high temperatures, and corrosion, these tanks are versatile and durable for modern industrial needs.

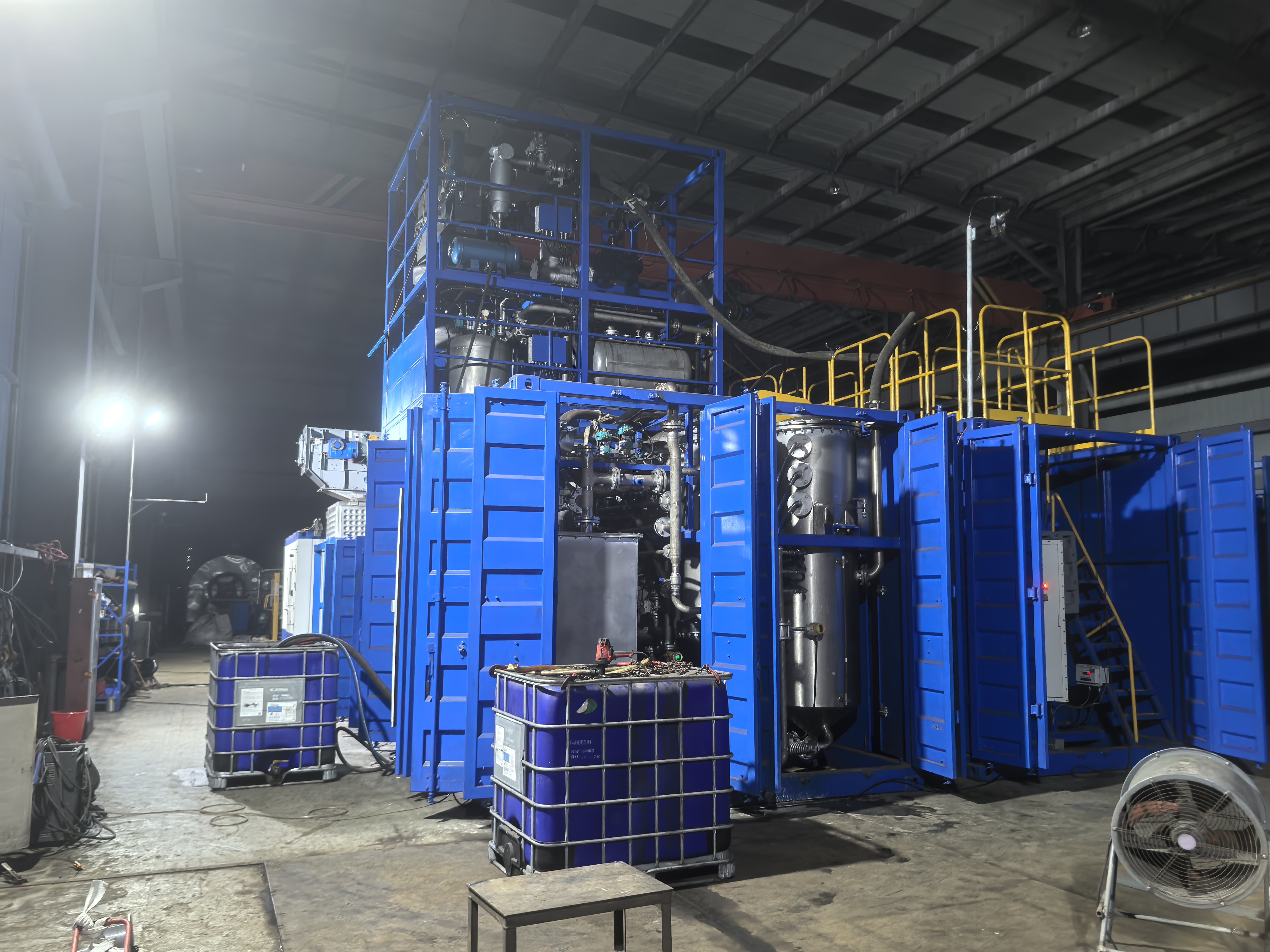

Oil sludge treatmentMany industries focus more on waste treatment thanks to the global sensitivity towards environmental issues of our time. Authorities implement more laws and regulations to ensure industrial organizations treat hazardous waste with minimum impact on nature.Some industries produce

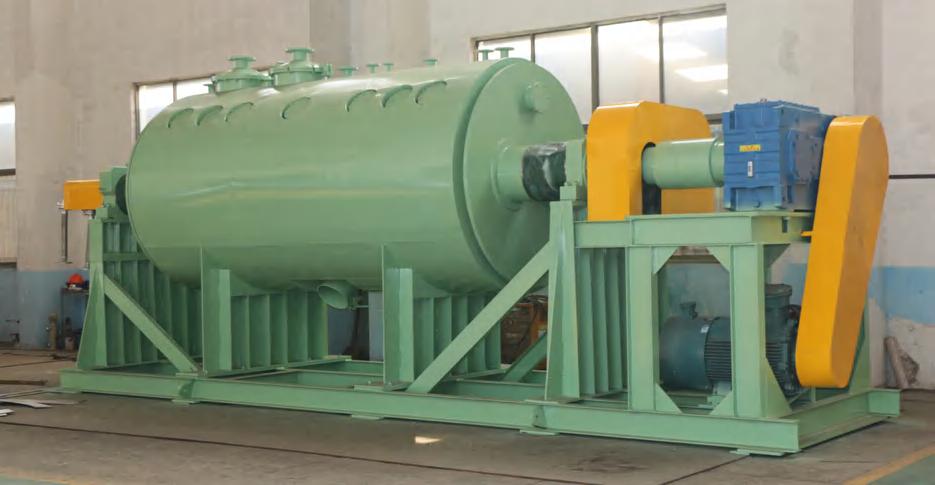

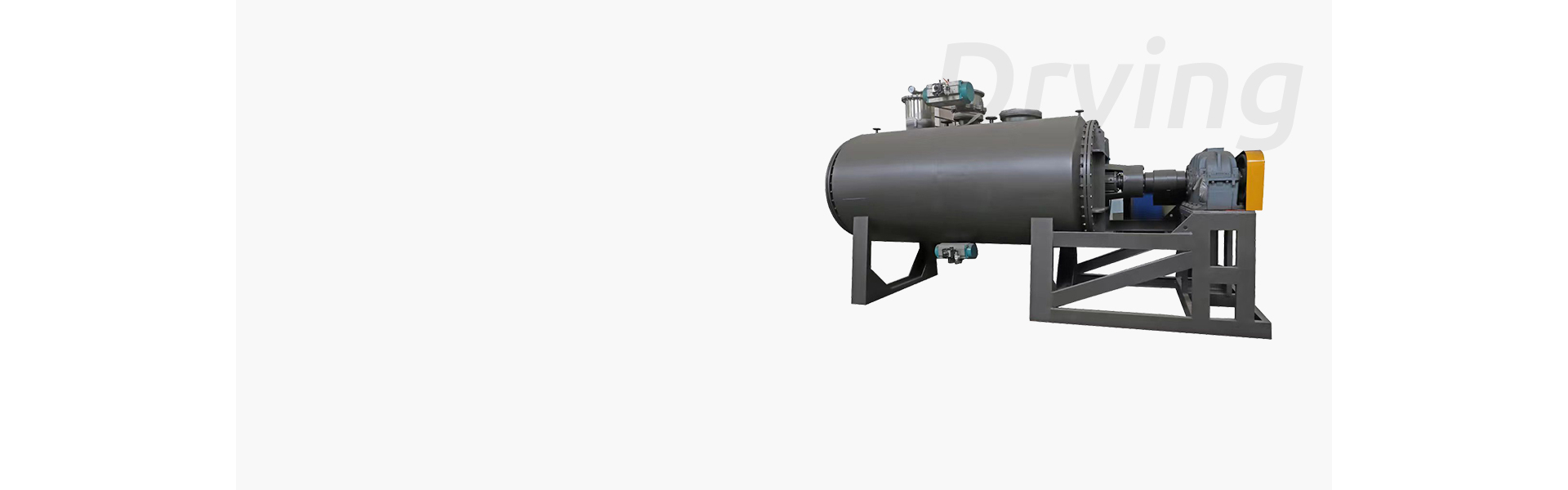

Drying equipment plays a critical role in many industrial processes, especially in the chemical, pharmaceutical, food, and environmental sectors. With increasing demand for energy efficiency, precise control, and compliance with environmental standards, the global drying equipment industry has seen
Introduction to Industrial Drying Technologies explores direct and indirect dryers, their mechanisms, and applications. From fluid bed dryer to paddle dryers, it highlights material characteristics, thermal sensitivity, and testing for optimal selection. Jiangsu Jinling Drying Technology offers innovative, tailored solutions.
