Jinling Technology manufactures advanced vacuum tray dryers, The dryer adopt vacuum pump to suck out most of the air and evaporated moisture out. Filing hot water, steam or thermal oil inside the dryer, raw material is putted into drying tray and dried under vacuum environment.
FZG
Jiangsu Jinling Drying
841939990
SUS304/SUS316L/2205 ETC
Food,chemical etc
Changzhou,Jiangsu,China
CE,ISO 9001: 2008,ISO 10004
Customized
| Quantity: | |
|---|---|
Product Description
A vacuum tray dryer is a type of industrial drying equipment used to remove moisture from heat-sensitive materials by using low-pressure (vacuum) conditions. The dryer typically consists of a series of trays or shelves stacked inside a vacuum chamber. These trays are where the material to be dried is placed.
1.Materials are loaded onto trays inside the vacuum chamber.
2.A vacuum is created, reducing the pressure inside the chamber.
3.As the pressure drops, the boiling point of water or solvents decreases, allowing moisture to evaporate at a lower temperature.
4.The moisture is removed, and the dried material is then extracted.
This method is particularly useful when dealing with materials that are sensitive to high temperatures or when retaining the integrity and quality of the product is a priority.

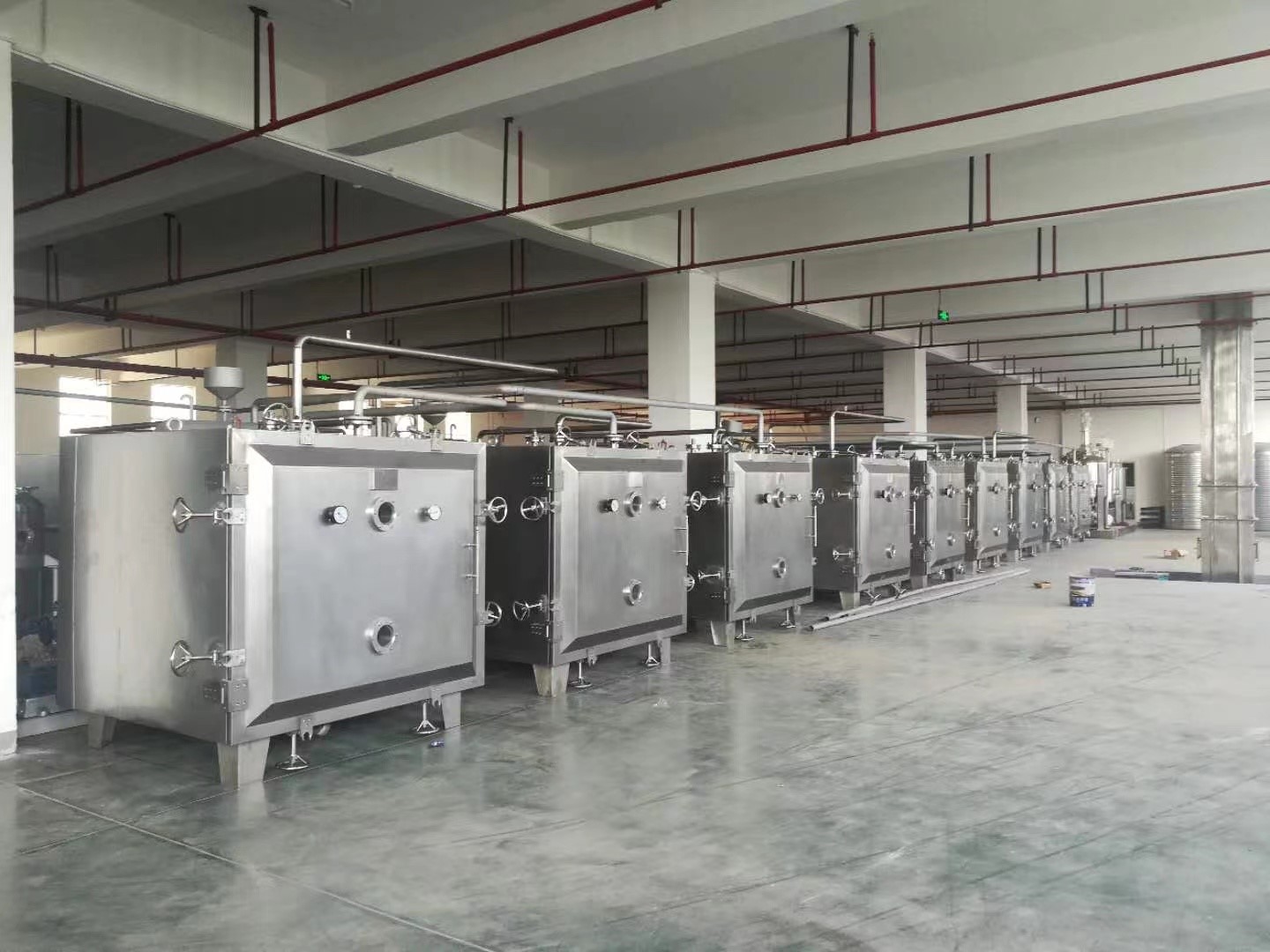

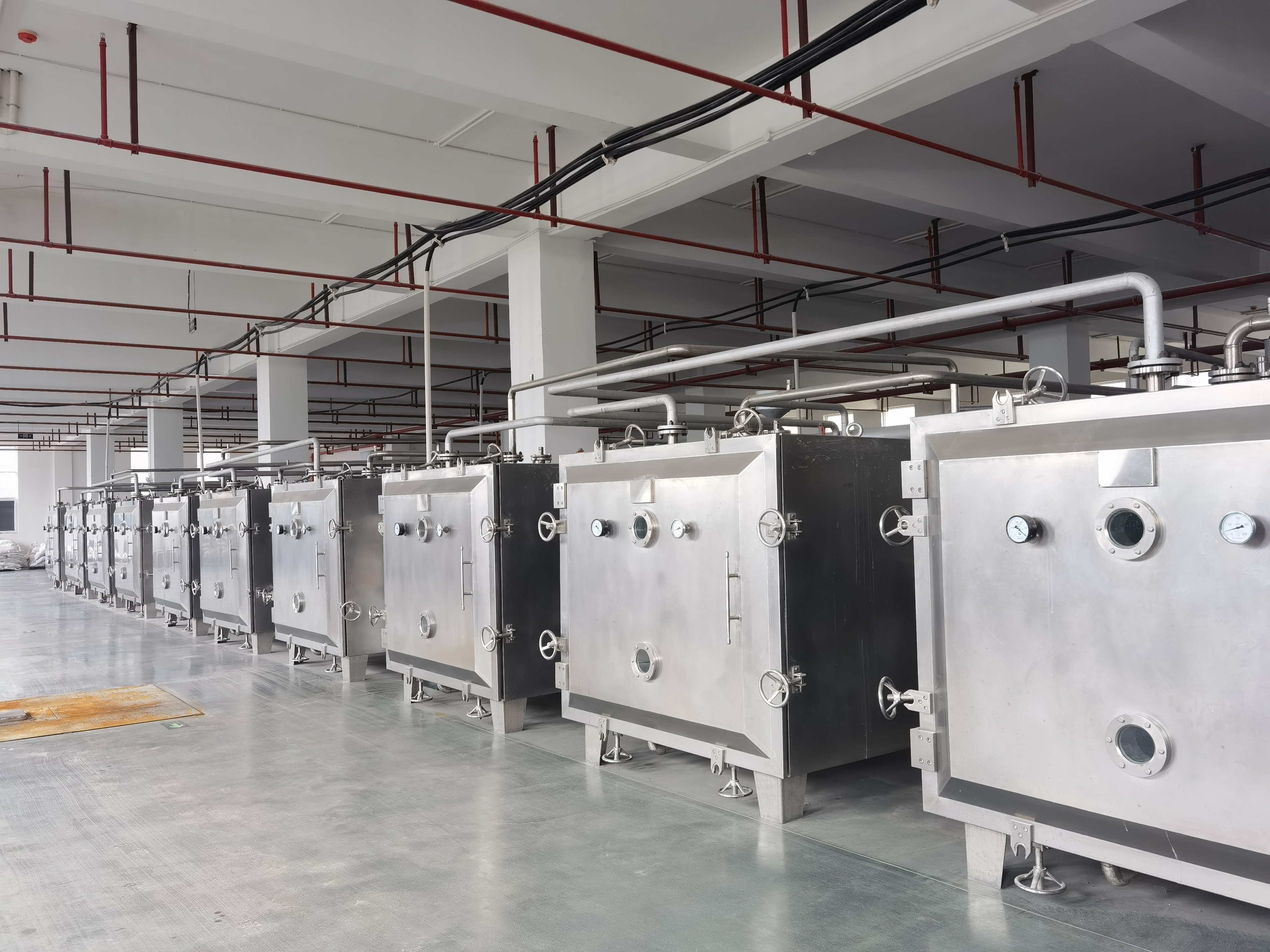

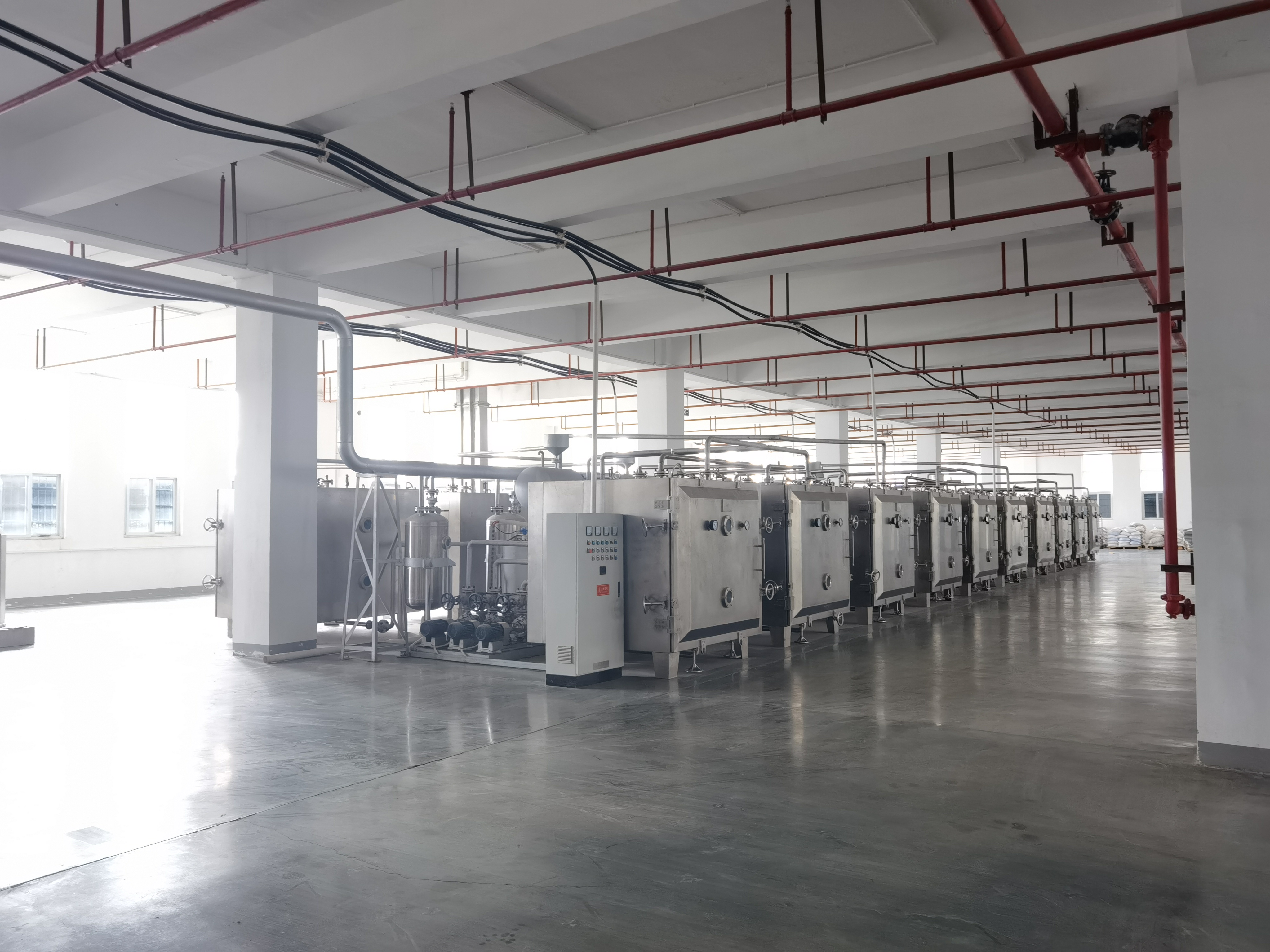

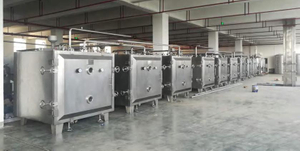

Vacuum Tray dryer on customer site

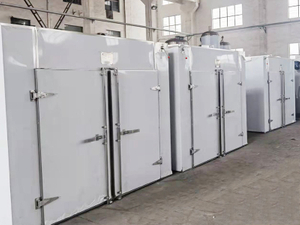

Tray Dryer

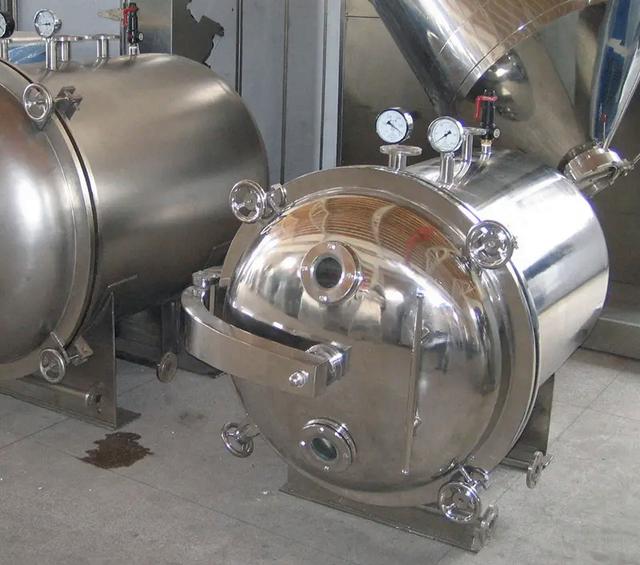

Round type Vacuum Paddle Dryer

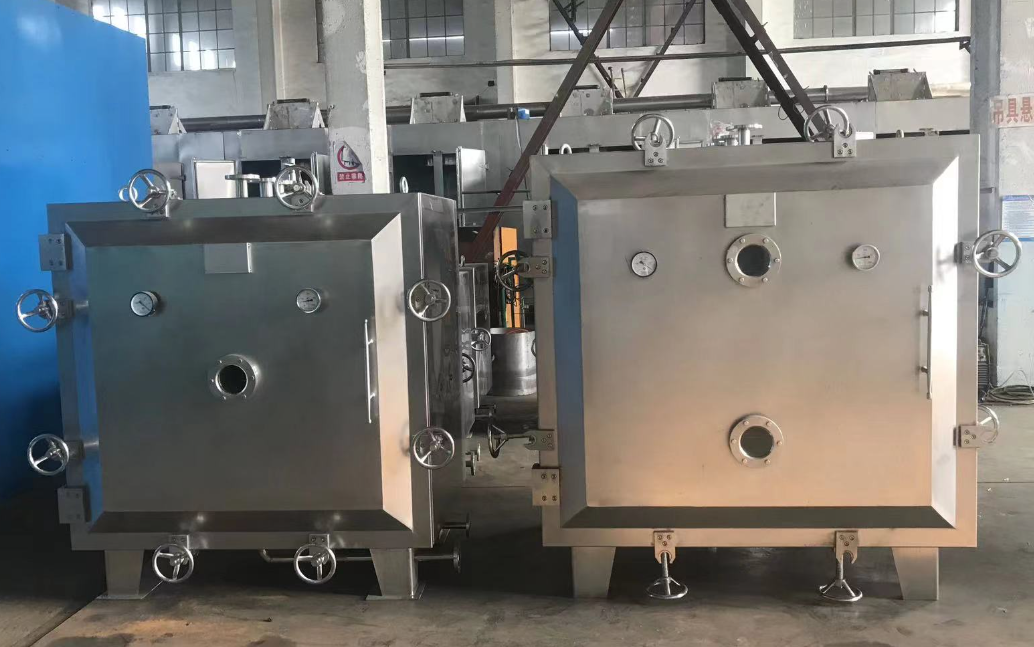

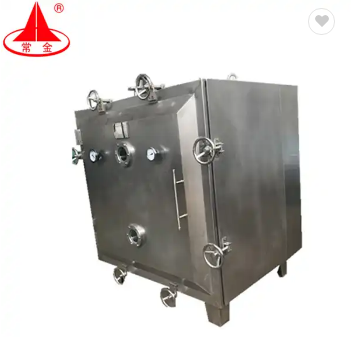

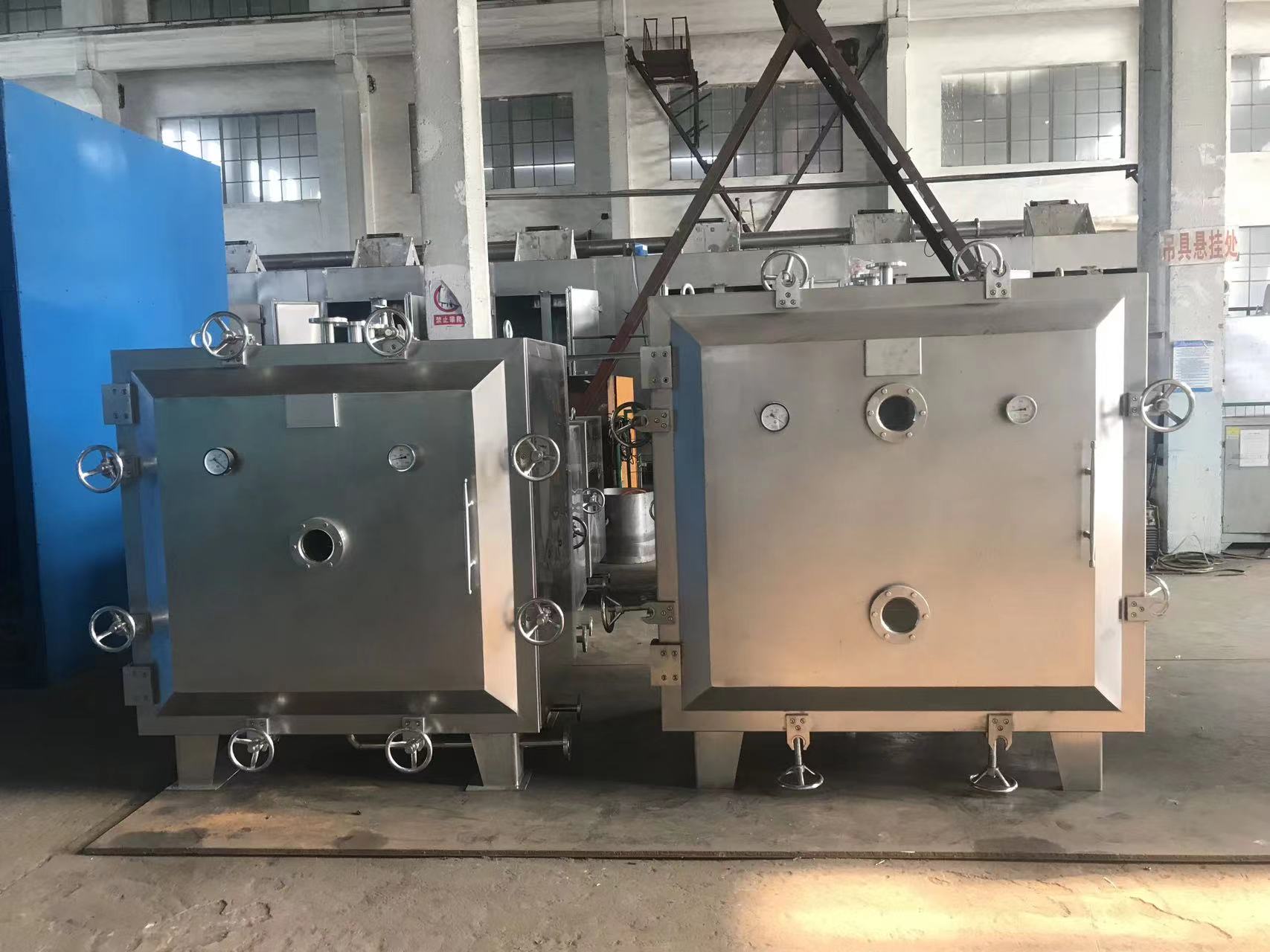

Square Vacuum Tray Dryer

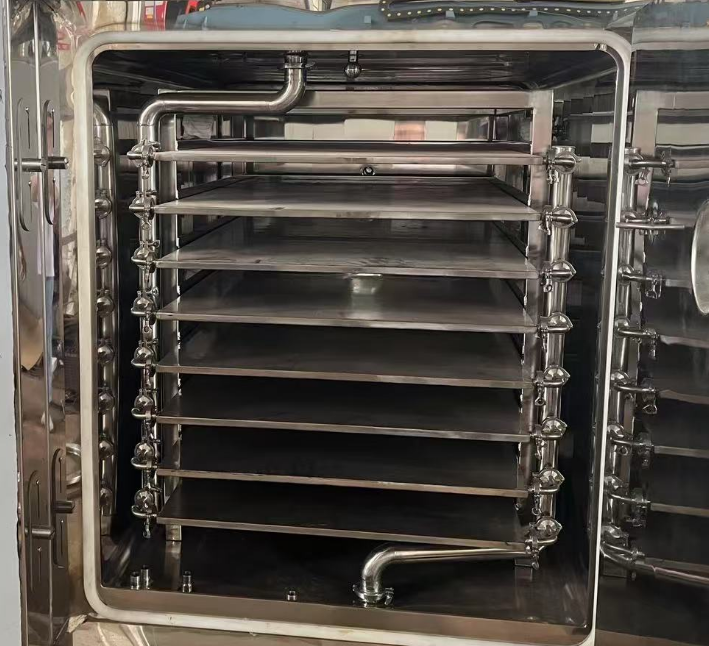

Plate Type to transfer heat to tray

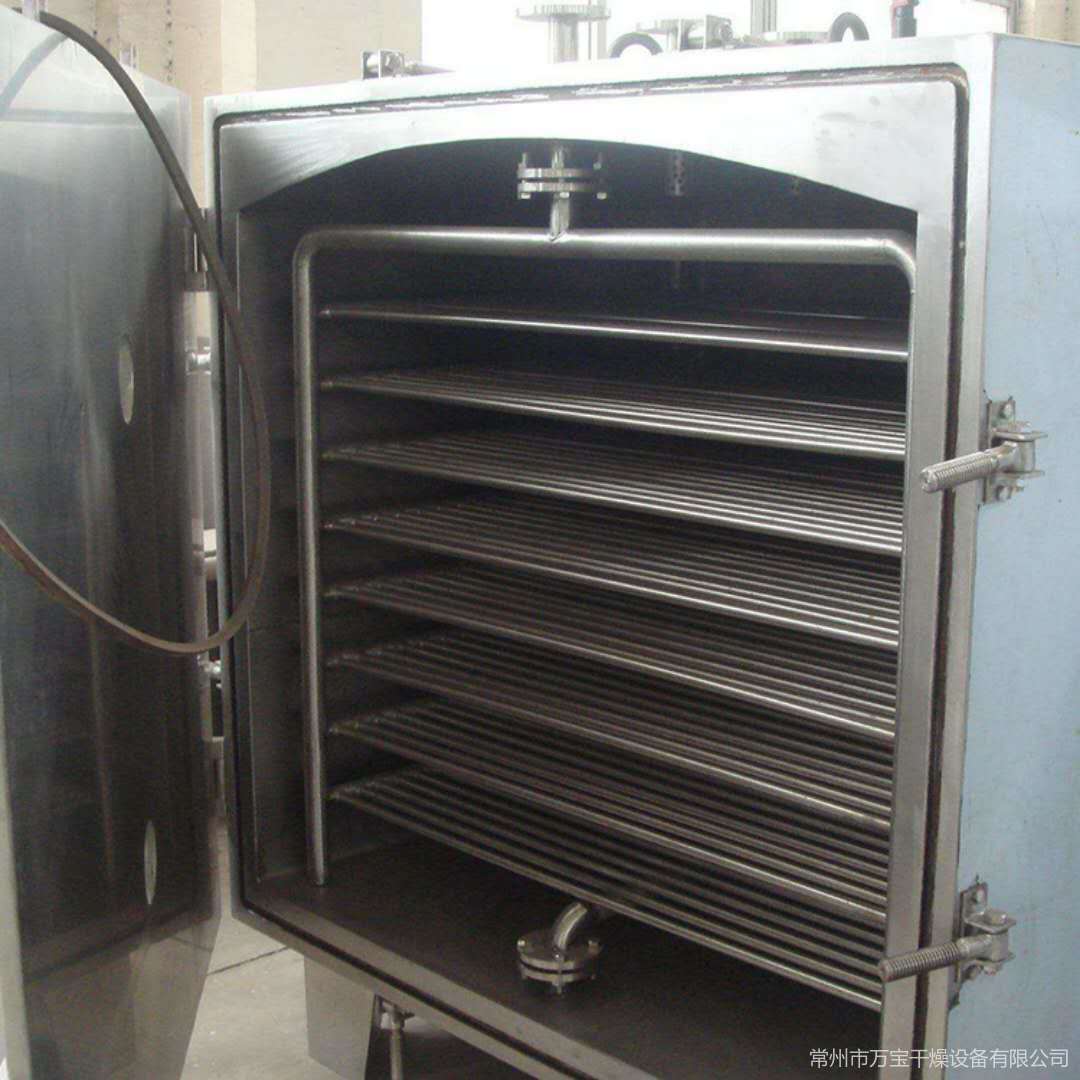

pipes to transfer the heat to tray
Operates under low-pressure conditions, reducing the boiling point of moisture and allowing drying at lower temperatures, which is ideal for heat-sensitive materials.
Offers accurate temperature regulation to ensure the drying process does not overheat or damage the product.
Uses a reliable heating system (such as steam or electric heaters) to provide uniform heat across the trays, accelerating the drying process.
Equipped with several trays or shelves for simultaneous drying of large batches, improving efficiency and capacity.
Moisture evaporated from the product is condensed and collected, often for recovery or safe disposal, maintaining a clean process.
The vacuum chamber is sealed, preventing external contamination and preserving the purity of the product, which is crucial for pharmaceuticals, food, and sensitive chemicals.
| Model | YZG-600 | YZG-1000 | YZG-1400 | FZG-15 | FZG-20 | FZG-40 | FZG-60 | FZG-90 |
|---|---|---|---|---|---|---|---|---|
| Inner chamber size(mm) | φ600*976 | φ1000*1527 | φ1400*2054 | 1500*1400*1220 | 1660*1550*1420 | 1660*1550*1756 | 2130*1540*1633 | 1600*2200*1700 |
| Layers of drying shelf | 4 | 6 | 8 | 8 | 8 | 10 | 9 | 11 |
| Space of layer(mm) | 81 | 102 | 102 | 122 | ||||
| Size of tray(mm） | 310*60*45 | 460*640*45 | ||||||
| Quantity of tray | 4 | 12 | 32 | 32 | 48 | 60 | 72 | 99 |
| Working pressure in drying shalf(Mpa) | ≤0.784（8kg/m³） | |||||||
| Temperature in chamber(°C) | ≤150°C | |||||||
| Vacuum degree in chamber(Torr) | ≤30 | |||||||
