Product Description

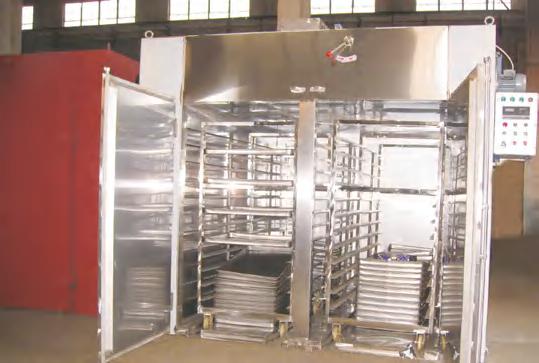

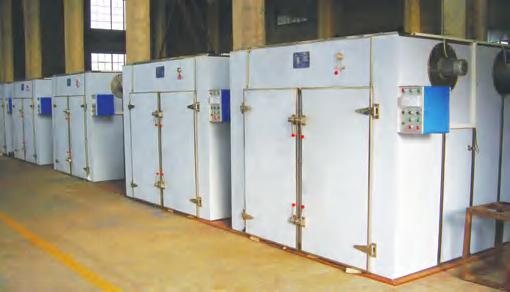

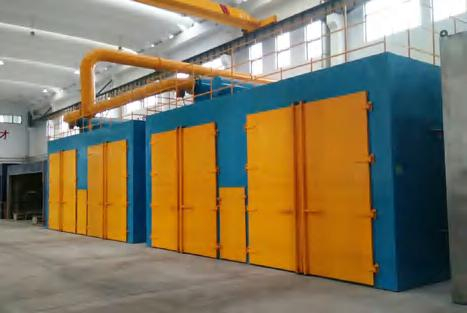

Jinling Technology specializes in manufacturing tray dryers, including large-scale models such as 12m x 6m x 3m. These dryers use steam or electricity as heat sources, with an axial fan and heat exchanger to heat air through convection. The system ensures efficient moisture removal and energy savings by recirculating most of the hot air.
Fresh air is continuously supplied, and heated wet air is discharged, ensuring proper moisture levels within the chamber. This advanced design improves heat transfer efficiency and reduces energy consumption.
Recirculation of hot air reduces energy costs and improves sustainability.
Axial fans and heat exchangers enhance the drying performance of tray dryers.
Tray dryers from Jinling Technology include various heat sources such as steam, electricity, or thermal oil. They operate within temperatures of 50-150°C for steam and up to 350°C for electrical heating. Non-standard dryers can be customized based on user requirements.
Control systems include ordinary automatic systems, PLC touch screens, and recorders, ensuring precise operation and monitoring.
Trays are designed to optimize air circulation and uniform drying, with a standard size of 460mm x 640mm x 45mm.
Steam or electricity is used as the primary heat source, with axial fans facilitating heat transfer through convection. Recirculation of hot air within the chamber enhances energy efficiency.
Tray dryers support various heat sources, including steam, electricity, and thermal oil. Operating temperatures range from 50-150°C for steam and up to 350°C for infrared heating.
Advanced control systems like PLC touch screens and recorders allow users to manage drying processes efficiently.
Special requirements, such as GMP compliance, handling corrosive materials, and high-temperature operations, can be accommodated with tailored designs.
| Model | Drying Capacity (kg/batch) | Power (kW) | Steam Consumption (kg/h) | Heating Area (m²) | Air Flow Rate (m³/h) | Max Temp Gap (℃) | Tray Quantity | Dimensions (LxWxH mm) | Truck Quantity |
|---|---|---|---|---|---|---|---|---|---|
| GMP/CT-C-0 | 25 | 0.45 | 5 | 5 | 3400 | ±2 | 16 | 1480 x 1100 x 1600 | 0 |
| GMP/CT-C-IA | 50 | 0.45 | 10 | 10 | 3400 | ±2 | 24 | 1400 x 1200 x 2000 | 1 |
| GMP/CT-C-I | 100 | 0.45 | 18 | 20 | 3450 | ±2 | 48 | 2300 x 1200 x 2000 | 2 |
| GMP/CT-C-II | 200 | 0.9 | 36 | 40 | 6900 | ±2 | 96 | 2300 x 2200 x 2000 | 4 |
| GMP/CT-C-III | 300 | 1.35 | 54 | 60 | 10350 | ±2 | 144 | 3300 x 2200 x 2000 | 6 |
