A spray dryer is a type of industrial drying equipment used to convert liquid or slurry materials into dry powder by rapidly evaporating the moisture.
The process involves atomizing the liquid feed into fine droplets and introducing them into a stream of hot air inside a drying chamber.
As the droplets contact the hot air, moisture evaporates almost instantly, leaving behind fine, uniform dry particles.
The dried product is then collected from the base or cyclone separator.
Spray dryers are widely used in the food, chemical, pharmaceutical, and dairy industries for producing powders with controlled particle size and moisture content.

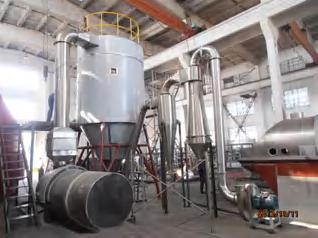

A spray dryer consists of several key components including the feed pump, atomizer or nozzle, drying chamber, air heater, cyclone separator, and powder collection system.
The atomizer converts the liquid into a mist of fine droplets.
Heated air is introduced to the chamber to dry the particles rapidly.
Exhaust air and fine particles are separated through a cyclone or bag filter to ensure clean and efficient operation.
Modern spray drying systems also include advanced controls to monitor temperature, airflow, and feed rate for consistent product quality.
Spray dryers offer rapid drying, uniform particle size distribution, and excellent control over final product characteristics.
They are ideal for heat-sensitive materials, as the short drying time prevents thermal degradation.
The process produces free-flowing powders that are easy to handle, transport, and store.
Spray drying also enables continuous, automated operation, making it highly efficient for large-scale industrial production.
Additionally, spray dryers allow precise control of moisture content and powder density, ensuring consistent quality.
Spray dryers are suitable for a wide range of liquid and slurry materials.
They are commonly used for milk powder, coffee, egg powder, flavorings, starch, and fruit juice concentrates in the food industry.
In pharmaceuticals, they are used to dry extracts, antibiotics, enzymes, and polymers.
In chemicals, they process detergents, pigments, ceramics, and catalysts.
The versatility of spray dryers makes them ideal for both organic and inorganic materials that require precise drying control.
Unlike drum or fluid bed dryers, spray dryers operate on the principle of atomization and rapid evaporation.
This method allows the transformation of liquids directly into powders in a single step.
Spray dryers provide faster drying rates and better control of particle size and morphology.
They are particularly effective for heat-sensitive materials, as the drying process occurs within seconds.
Other dryers, such as rotary or vacuum dryers, are typically used for solid or semi-solid materials and involve longer residence times.
Spray dryers can be categorized based on the type of atomization and air flow pattern.
Common types include pressure nozzle spray dryers, rotary atomizer spray dryers, and two-fluid nozzle systems.
Airflow configurations can be co-current, counter-current, or mixed flow.
Each type offers specific advantages depending on the material properties and product requirements.
For example, co-current systems are preferred for heat-sensitive products, while counter-current systems achieve higher thermal efficiency.
Several parameters affect spray drying efficiency and final product quality.
These include inlet and outlet air temperature, feed concentration, atomization pressure, and droplet size.
Airflow rate, chamber design, and residence time also play crucial roles.
Optimizing these parameters ensures consistent drying, desired particle size, and minimal product loss.
Advanced control systems and real-time monitoring help maintain stable operation and high yield.
Spray dryers are used across many industries for transforming liquid materials into powders.
In the food industry, they produce milk powder, coffee, tea, protein, and flavoring powders.
In pharmaceuticals, they are used for drying active ingredients, excipients, and herbal extracts.
In chemicals, they handle ceramics, detergents, and pigments.
Spray drying technology is also used in biotechnology and materials science for encapsulation and micro-particle production.
Yes, spray drying is particularly suitable for heat-sensitive materials such as enzymes, vitamins, and dairy products.
Because the drying occurs almost instantaneously, the product is exposed to high temperatures for only a short time.
This prevents degradation of sensitive compounds and preserves color, flavor, and nutritional properties.
For additional protection, spray dryers can operate with controlled inlet temperatures or inert gas atmospheres.
Common challenges include maintaining uniform droplet size, preventing wall deposits, and controlling powder properties.
Excessive drying temperature or poor atomization can lead to product degradation or inconsistent particle morphology.
Regular cleaning and maintenance are essential to prevent blockages and contamination.
Using high-quality atomizers, optimized airflow design, and automated control systems helps overcome these challenges effectively.
Efficiency can be improved through proper atomizer selection, optimized airflow, and energy recovery systems.
Installing heat exchangers or using exhaust air recirculation can reduce energy consumption.
Maintaining optimal feed concentration and droplet size ensures faster and more uniform drying.
Periodic maintenance and real-time process monitoring also contribute to better performance and energy efficiency.
Safety is crucial due to the combination of heat, fine powders, and airflow.
Explosion protection systems, proper grounding, and dust filtration are essential to prevent fire and explosion risks.
Operators should regularly inspect seals, filters, and pressure gauges.
Ensuring good ventilation and following operational safety protocols minimizes risks associated with spray drying processes.
Yes, spray dryers can be fully customized to meet specific process requirements.
Manufacturers can modify the drying chamber size, atomizer type, airflow pattern, and control system.
Special features such as closed-loop operation, inert gas drying, and product recovery units can be added.
Customized spray dryers ensure optimal performance, product quality, and energy efficiency across various industries.
