Pressurized Spray Dryer

The pressurized spray dryer uses a pressurized atomizer to atomize the solution or the slurry material into fine droplets with the pressure produced by the pressure pump, which significantly increases thesurface area of the material. After the sufficient heat exchange with the hot air, the material can  be driedrapidly (between ten seconds and a hundred seconds), so that the products can be powdery or fine particles.
  • YPL

  • JIANGSU JINLING DRYER

Availability:
Quantity:

Product Description

Pressurized Spray Dryer


Descriptions of Pressurized Spray Dryer

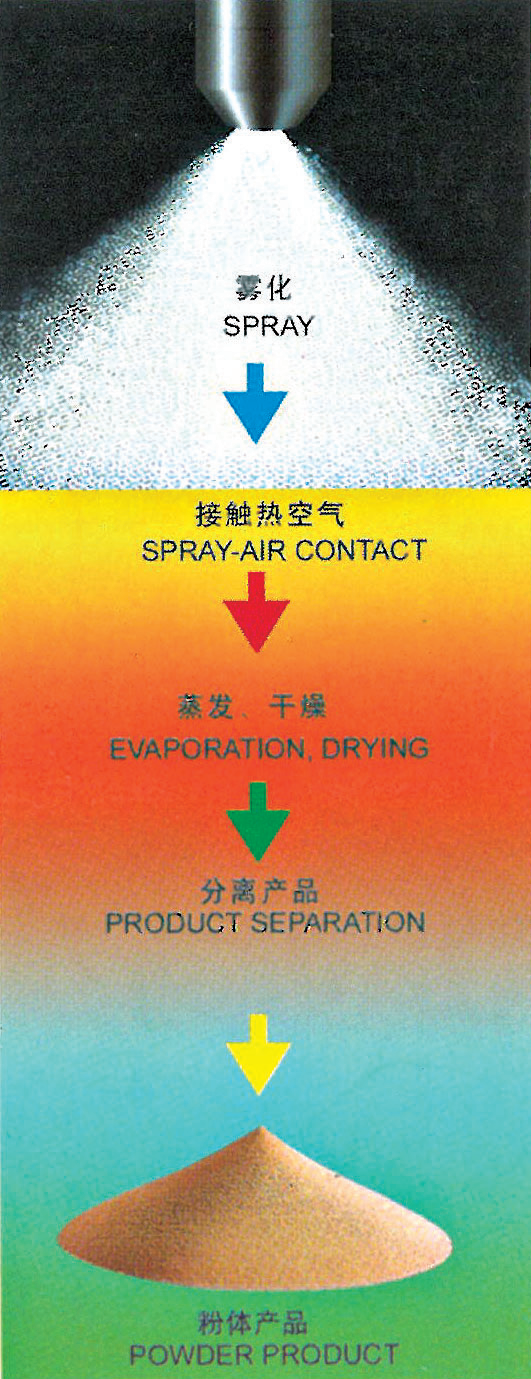

◆The pressurized spray dryer uses a pressurized atomizer to atomize the solution or the slurry material into fine droplets with the pressure produced by the pressure pump, which significantly increases thesurface area of the material. After the sufficient heat exchange with the hot air, the material can  be driedrapidly (between ten seconds and a hundred seconds), so that the products can be powdery or fine particles.



Features of Pressurized Spray Dryer


◆The drying speed of the machine is really fast. It is especially suitable for heat- sensitive materials.

◆The products obtained are powdery or granular particles with uniform particle size, good fluidity and favorable solubility.

◆This equipment has a wide range of applications, such as hot blast drying and granulation. It is also applicable for cooling and granulation.

◆This equipment can be designed with a back-flow system for fine powders and a re-wet agglomeration system, to adjust the particle size of the material properly;

◆The operation of this machine is simple and stable. It is also convenient to control the equipment and make the operation automatic. The particle size, bulk density, and moisture content of the product can be adjusted within a certain range.



Pressurized Spray Dryer



Applications of Pressurized Spray Dryer


◆For liquids with certain fluidity across food, pharmaceutical, chemical, dyeing, ceramic, biochemical, pesticide, plastic and other industries.



Pressurized Spray Dryer

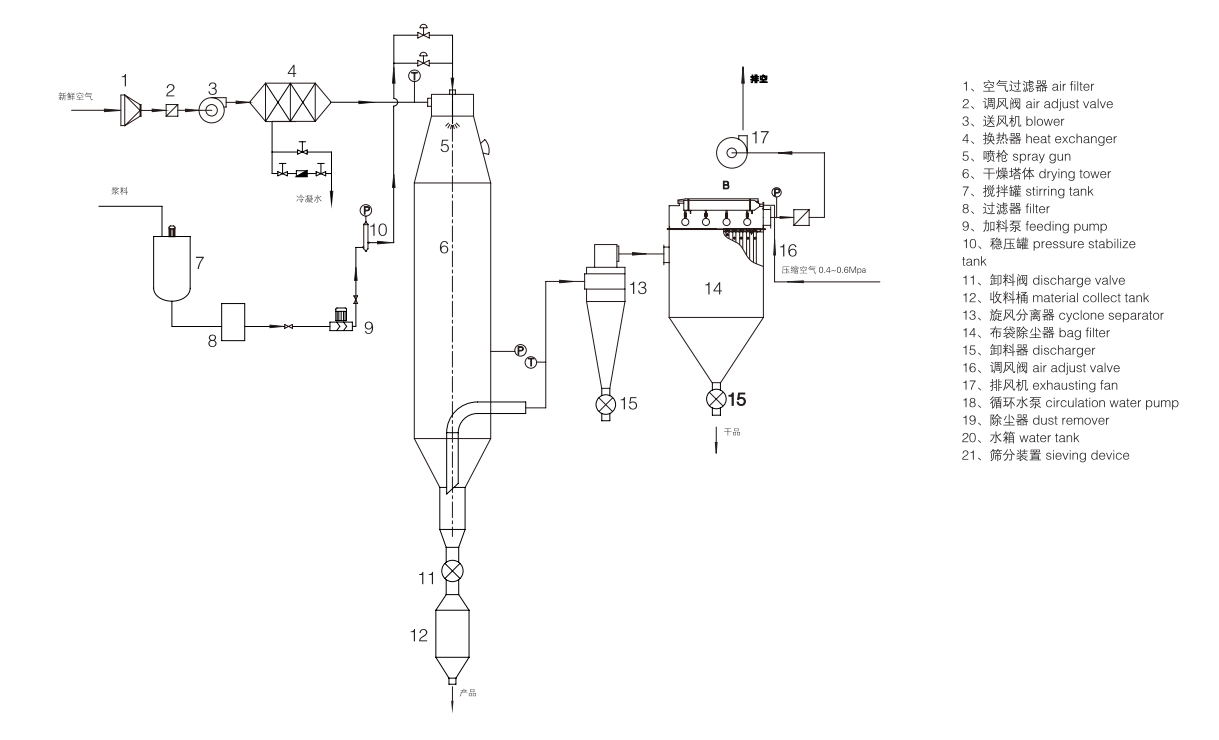

Structure Diagram of Pressurized Spray Dryer


Pressurized Spray Dryer

Pressurized Spray DryerPressurized Spray Dryer



Technical Specifications of Pressurized Spray Dryer


Model Unit 50 100 150 200 300 500 1000
Evaporated Moisture
50 100 150 200 300 500 1000
Overall Size (O*H) mm 1600
x8900
2000
x11500
2400
x13500
2800
x14800
3200
x15400
3800
x18800
4600
x22500
Pressure of Pump MPa 0.5-8
Power KW 8.5 14 22 24 30 82 30
Temperature of Inlet Air 300-350
Recovery of Raw Materia % >97
EHeating by Electricity KW 75 120 150 When the temperature is lower than 200℃, the specifications should be
calculated according to the specific situation.
Electricity + Steam MPa+KW 0.5+54 0.6+90 0.6+108
Hot Blast Stove Kcal/h 100000 150000 200000 300000 400000 500000 1200000
