Product Description
◆ Reduce the boiling point of the material under the vacuum condition to make the dried material more uniformly heated.
◆ The heat source can be low pressure steam, thermal oil, electricity or hot water.
◆ Different types of vacuum pumps can be equipped according to the requirements of our customers .
◆ No contaminants will be involved during the entire drying process, which makes it easy to clean the machine; GMP requirements are met in this case.
◆ It is a static vacuum dryer, so the shape of the dried material will not be damaged.

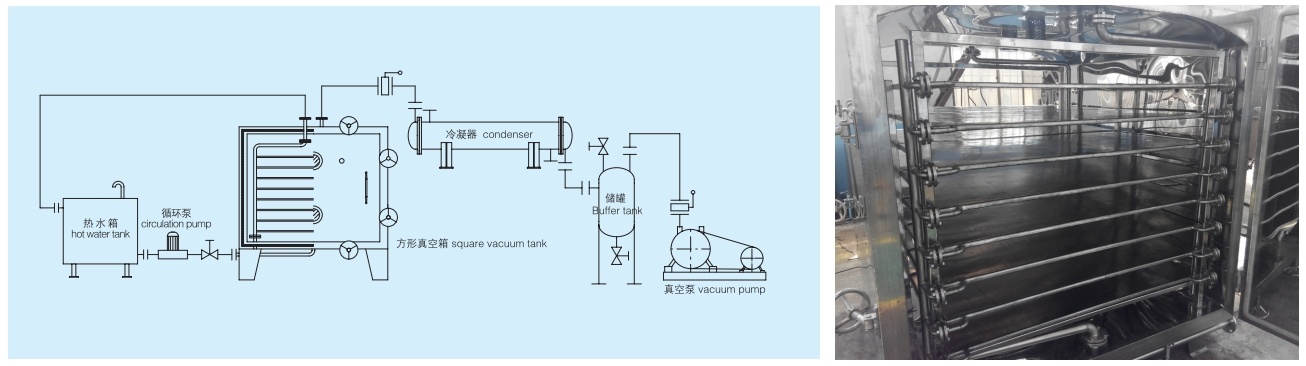

◆The principle of this model is to put the material on a special drying tray, place it on a heating rack (or a heating plate), meanwhile under vacuum conditions, heat will be conducted and transferred for drying. Vacuum pump is also used to extract air for dehumidification, which can accelerate the drying rate.
◆ If a condenser is added, the solvent in the material can be recovered through the condenser.
◆ The equipment is suitable for low temperature drying of heat-sensitive materials that are easy to decompose, polymerize and coke at high temperature; it is widely used across pharmaceutical, chemical, food, electronics and many other industries.
| Specification | Name | YZG-600 | YZG-1000 | YZG-1400 | FZG-15 | FZG-20 | FZG-40 | FZG-60 | FZG-99 |
| Inner Chamber Dimension (mm) | Ø600 x976 | Ø1000 x1527 | Ø1400 x2054 | 1500x1400 x1220 | 1660x1550 x1420 | 1660x1550 x1756 | 2130x1540 x1633 | 1600x2200 x1700 | |
| Layers of Drying Shelf | 4 | 6 | 8 | 8 | 8 | 10 | 9 | 11 | |
| Tray Dimension(mm) | 310x600x45 | 460x640x45 | |||||||
| Tray Quantity (set) | 4 | 12 | 32 | 32 | 48 | 60 | 72 | 99 | |
| Working Pressure in Drying Shelf (MPa) | Pressure with Pipes≤0.8 Mpa; Pressure within Plates ≤ 0.3 Mpa. | ||||||||
| Temperature inside Chamber ℃) | ≤150 | ||||||||
| Vacuum Level of Chamber (Torr) | ≤30 | ||||||||
