Product Description

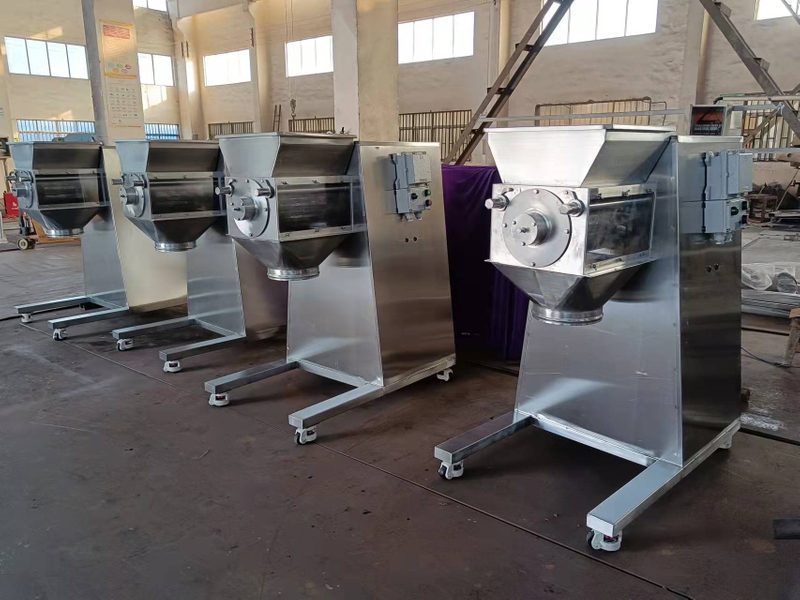

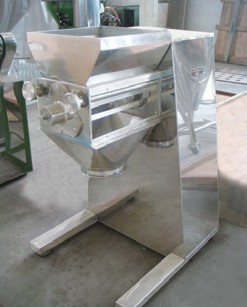

1、This machine is a specialized equipment for pressing wet powder materials and making them into granules through a sieve under the force of the positive and negative rotation of the drum. Type C is reinforced to be suitable for materials with high viscosity.
2、The particles made by this model are irregular and easy to diffuse. According to the production requirements, large models with greater production capacity are available.
3、This machine is suitable for the granulation of pharmaceutical products, food,chemical products, solid materials and materials used in other industries. This machine can also break agglomeration of materials into smaller particles.
型号 Model | A, B | C |
生产能力 Production Capacity (kg/h) | 100~200 | 150~300 |
电机功率 Motor Power (kW) | 2.2 | 3 |
滚筒转速 Revolution of Motor (r/min) | 65 | 65 |
摇摆角度 Swing Angle (° ) | 360 | 360 |
滚筒直径 Diameter of Roller (mm) | Ø160 | Ø160 |
重 量 Weight (kg) | ~300 | 450 |
外形尺寸 Overall Dimension(mm) | 1150x680x1150 | 1260x750x1150 |
