FLP Multi-Functional Pellet (Ball) Granulating / Coating Dryer

Availability:

Product Description


FLP Multi-Functional Pellet (Ball) Granulating / Coating Dryer Summary


This machine is a combination of spray granulating, centrifugal coating and fluidized-bed drying. The machine is compatible with a variety of process operations. It is especially suitable for granulating and coating across pharmaceutical industry, food industry, chemical industry and many other industries. The particles produced are mostly porous instant particles, and they can also be dense pellet (ball) particles with extremely high sphericity. The machine has good airtightness; no corners are missed; it is easy to clean and operate. The entire process can be operated with one single machine, and the pellet (ball) granulating and coating process can be completed within one step in the same sealed negative pressure container.

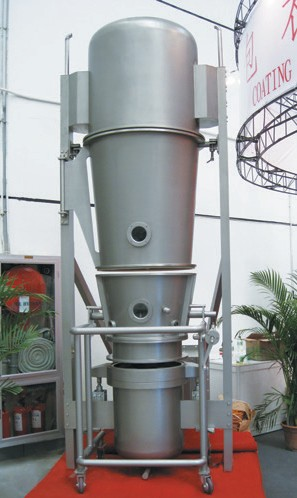

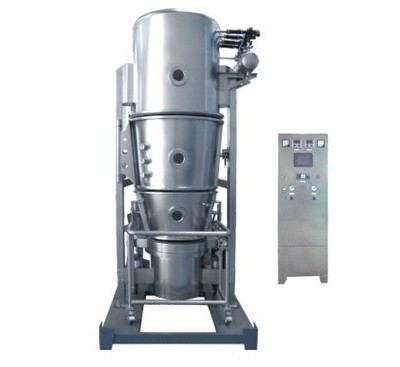

FLP Multi-Functional Pellet (Ball) Granulating / Coating Dryer

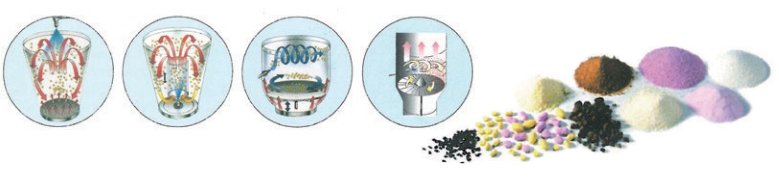

FLP Multi-Functional Pellet (Ball) Granulating / Coating Dryer Structure Diagram

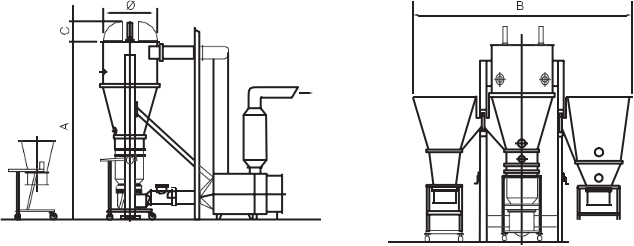

FLP Multi-Functional Pellet (Ball) Granulating Structure Diagram



FLP Multi-Functional Pellet (Ball) Granulating / Coating Dryer Technical Specifications


项目 Item

机型 Model

名称 Name

单位 Unit

3

5

10

15

30

60

120

容器直径 Diameter of Container

mm

400

600

700

800

1000

1200

1500

生产能力 Production Capacity

kg/ h

0.75-3

1.2-5

2.5-10

3-15

7.5-30

15-60

30-120

风机功率 Power of Fan

kw

3

4

5.5

7.5

7.5

11

18.5

蒸汽Steam

压强 Pressure

Mpa

0.4-0.6


耗量

Consumption

kg/h

6kW

20

35

42

60

160

2440

压缩空气Compressed air

压强 Pressure

Mpa

0.6


耗量

Consumption

m3/min

0.3

0.4

0.6

0.6

0.9

1.1

1.5

噪音 Noise

dB

风机处理不大于 75 分贝 Noise near the fan isolation is less than 75 dB.
