Product Description

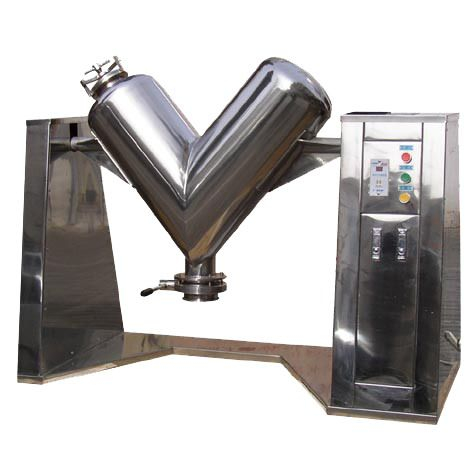

This is a V-shaped mixer. It has high efficiency and many applications. Materials will be mixed thoroughly and evenly. It is used for simple powder particles. GMP standards are met for this application.
型号规格 Model | 0.18 | 0.5 | 1.0 | 1.5 | 2.5 | 4.0 | 6.0 |
生产能力 Capacity (kg/h) | 72 | 200 | 400 | 600 | 1000 | 1600 | 2400 |
进料时间 Feeding Time (min) | 3-5 | 4-6 | 6-9 | 6-10 | 8-15 | 10-15 | 18-25 |
混合时间 Mixing Time (min) | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 8-12 | 8-12 |
全容积 Total Volume (m3) | 0.18 | 0.5 | 1.0 | 1.5 | 2.5 | 4.0 | 6.0 |
搅拌转速 Stirring Speed (rpm) | 12 | 12 | 12 | 12 | 12 | 5 | 5 |
电机功率 Motor Power (kW) | 1.1 | 2.2 | 4 | 4 | 7.5 | 11 | 18.5 |
回转高度 Rotating Height (mm) | 1580 | 2400 | 2840 | 3010 | 3680 | 4350 | 5300 |
