Dry Rolling Granulator

Availability:
Quantity:

Product Description


Dry Rolling Granulator Descriptions


The specialized drying granulators developed and designed by our company with features such as GMP, vertical roller, and horizontal roller have shown significant improve- ment in terms of granulation level, energy efficiency, cleaning and maintenance.


Dry Rolling Granulator Applications


This equipment is widely used for granulation of chemical medicine, chemical products, sodium carbonate, fertilizer, animal feed, plastic additives, food, cosmetics, synthetic detergent and other types of dry powder.

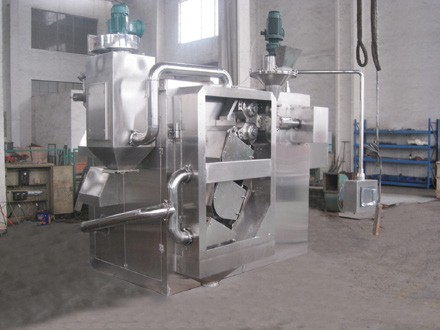

Dry Rolling Granulator

Dry Rolling Granulator 1

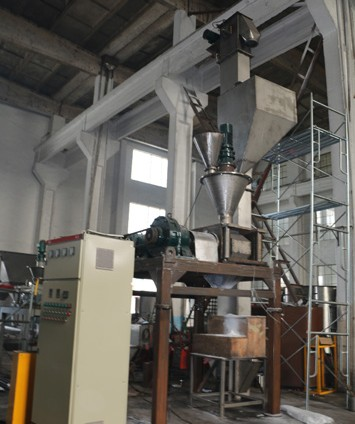

Dry Rolling Granulator 2

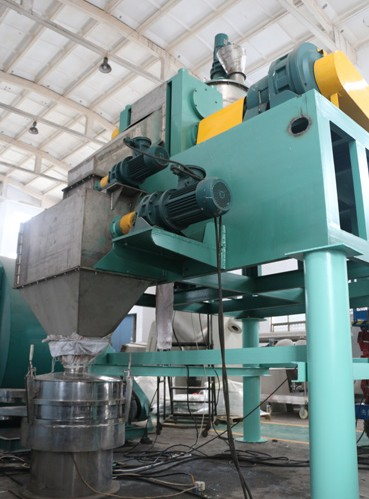

Dry Rolling Granulator 3



Dry Rolling Granulator Features


1、The screw device for agitating and crushing is equipped inside the feeding device to ensure uniform feeding.

2、Horizontal spiral feeding or vertical feeding is used to pre-press the materials; the speed can be adjusted continuously.

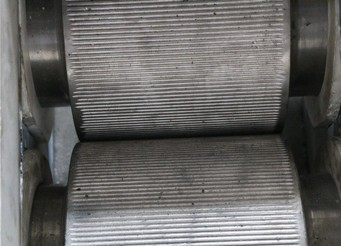

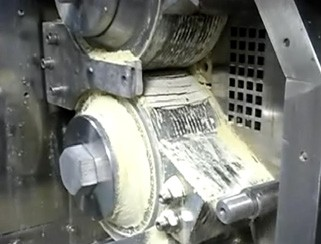

3、The press roller is either vertical or horizontal; the surface of the press roller is specially treated to have high hardness.

4、Depending on the characteristics of the material, different surface shapes can be applied for the roller.

5、The main drive is equipped with adjustable hydraulic support to ensure stable pressure and uniform density during the pressing process.

6、The single-stage, D-shaped granulating device is used to reduce the fine powder content in the granules after being crushed.

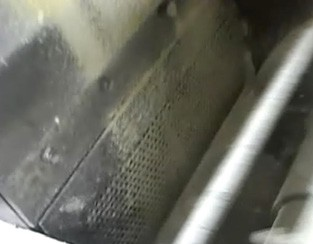

7、The sieve can be replaced if necessary to obtain material particles with different meshes.

8、The speed ratio between the feeding screw and the roller can be changed to obtain particles with different hardness (or specific gravity).

9、This equipment can be divided into different modules, which makes it easy for disassembly and automatic operation.

10、The sealed dry granulation system reduces dust pollution during production.

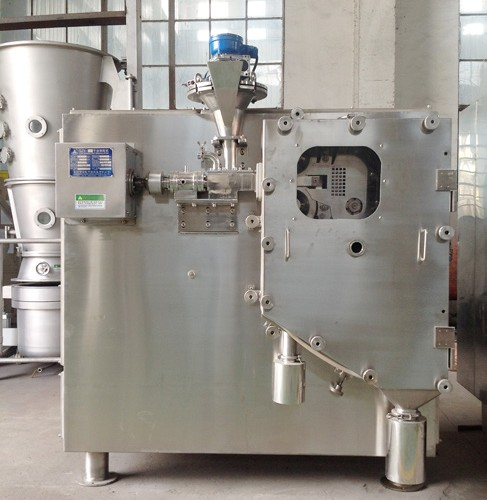

Dry Rolling Granulator6


Dry Rolling Granulator Technical Specifications


型号 Model

GMP×100

GMP×120

GMP×150

GMP×180

压辊宽度 Width of Roller (mm)

100

120

150

180

压辊直径 Diameter of Roller (mm)

240

240

250

300

压辊最大压力 / 压辊宽度 Max Pressure of Roller/Width of Roller

21.3 kN/cm

压片厚度 Thickness of Material Piece(mm)

1-4

1-4

1-4

1-4

连续处理能力 ( 约 ) Capacity (Approximate) (kg/h)

80-150

150-250

200-300

250-500

颗粒范围 Size of Granules


可调 Adjustable

成品率 ( 约 )Productivity

65%-75%

65%-75%

65%-75%

65%-75%

压辊与加料转数 Rotation Speed of Roller

可调 Adjustable

装机总功率 ( 约 )Total Power (kW)

~15

18

22

28

外形尺寸长×宽×高(约)

Overall Size (L×W×H) (Approximate) (mm)

2100×1500

×1800

2100×1500

×1800

2100×1500

×1800

2100×1500

×2000

Dry Rolling Granulator 7
