Product Description

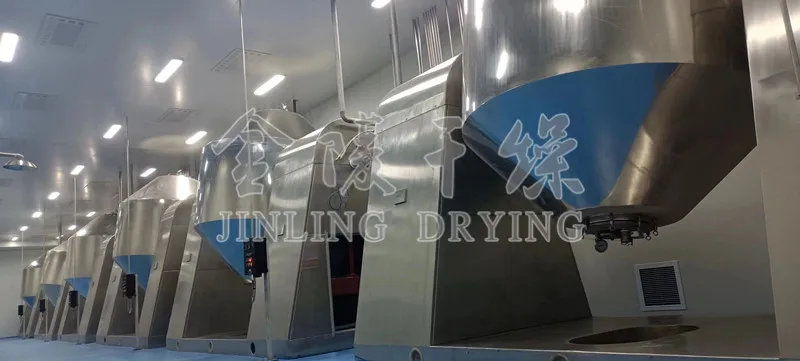

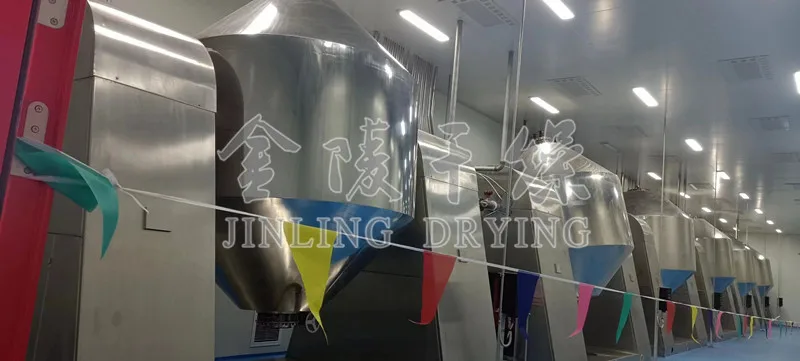

A Double Cone Rotary Vacuum Dryer is a batch-processing dryer designed for gentle, efficient drying of free-flowing, powdery, or granular materials. It combines three key principles to achieve drying:
The double cone vessel rotates, continuously tumbling the product.
The vessel is jacketed, allowing a heat transfer fluid (like steam, hot water, or hot oil) to circulate.
The entire vessel is placed under a vacuum, which lowers the boiling point of the solvent (usually water or a solvent) inside the product.
This combination allows for very efficient drying at lower temperatures, making it ideal for heat-sensitive materials.

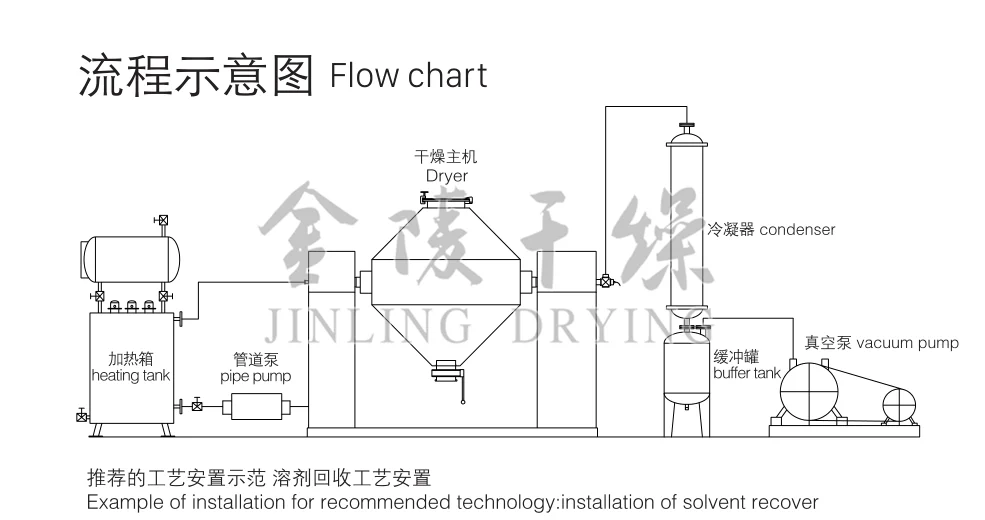

SZG vacuum rotary dryer is a kind of double conical vacuum dryer.under the vacuum condition,gilling the heat mediu into dryer jacket,raw material being dried with the contact of dryer chamber.evaporated moisture is sucked out by vacuum pump/due to the rotating of dryer body,raw material is moving inside the chamber,which increase the drying speed and uniformity.
The dryer is suitable for powder and granule form raw material with good fluidity.
-Ph Industry: Drying of active ph ingredients (APIs), intermediates, and granules.
-Chemical Industry: Drying of pigments, dyes, pesticides, and various chemical powders.
-Food Industry: Drying of spices, flavorings, and food additives where quality is critical.
-Fine Chemicals & Ceramics: Precious catalysts and specialty ceramic powders.
Volume (liters) of the vessel. Common sizes range from 5L R&D units to large 5000L production models.
Pressure rating and type (half pipe jacket for high pressure/temperature).
Maximum temperature requirement (e.g., steam vs. hot oil).
The ultimate vacuum pressure required (often in mbar or mmHg).
Usually 316L or 304 stainless steel for product contact parts, with a mirror finish (e.g., Ra < 0.4 µm) for easy cleaning.
-Designed to meet specific standards like GMP (Current Good Manufacturing Practices) for ph, including CIP/SIP (Steam-in-Place) capabilities.
-Flammable and explosive material drying should be clamed.
-When use hot water or heat conducting oil as heating source,should be claimed before the order.please claimed when order if need certificate of pressure vessel.

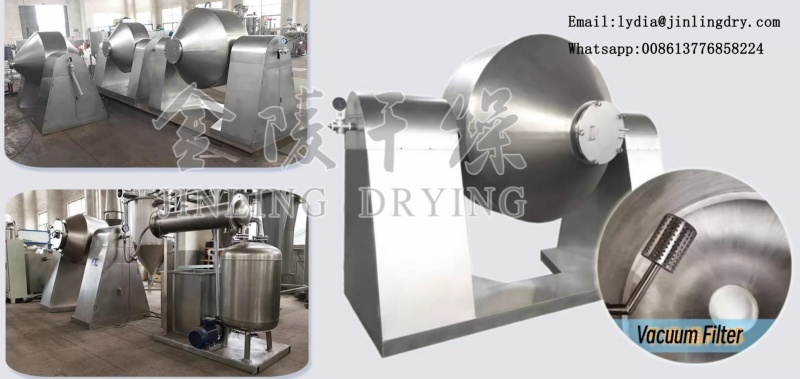

-Please claim it when need GMP stardard.it shoulde be use direct gear drive,closed construction,vacuum cover is sintered metal mesh.
-Material:SS304/SS316L/SS321/hastelley etc,inner wal is enamel for your choice.
-We recommend being adopt speed adjustable control and central axis integrated procession when the volume of machine is larger than 2000L.
| Item | Unit | Type | |||||||||
| Name | 100 | 200 | 350 | 500 | 750 | 1000 | 1500 | 2000 | 5000 | 8000 | |
| Total volume | L | 100 | 200 | 350 | 500 | 750 | 1000 | 1500 | 2000 | 5000 | 8000 |
| Working volume | L | 50 | 100 | 175 | 250 | 375 | 500 | 750 | 1000 | 2500 | 4000 |
| Heating area | m2 | 1.16 | 1.5 | 2 | 2.63 | 3.5 | 4.61 | 5.58 | 7.5 | 14 | 20 |
| Rotating speed | r/min | 6 | |||||||||
| Power | KW | 0.75 | 1.1 | 1.5 | 1.5 | 2.2 | 3 | 3 | 4 | 11 | 22 |
| Rotating frame of height | mm | 1810 | 1910 | 2090 | 2195 | 2500 | 2665 | 2915 | 3055 | 4200 | 5200 |
| Inside tank pressure | MPa | -0.09-0096 | |||||||||
this rotary double conical dryer is filtering,washing and drying multifunctional dryer machine
Jiangsu Jinling Drying Technology Co., Ltd. was founded in 2000, as an innovation-oriented enterprise specialized in advanced technology.We have over 30 years of experience in machine manufacturing. We have achieved more than fifty national level patents and ten provincial level certificates for new high-tech products. There are more than 120 employees in our factory, Jinling is professionally engaged in designing, manufacturing over 30 series of drying equipment, environmental protection equipment, evaporation & concentration equipment and dry granulation equipment which are widely used for environmental protection field, chemical field, food field, national defense field etc.
Jinling is the qualified manufacturer of special pressure vessel, established the biggest drying & granulating testcenter in China, and passed the examination of ISO 9001, ISO 14001, OHSAS18001 and CE certification.Jinling's equipment has been spread all over China and has been exported to over 40 countries.
We have our own processing and production equipment in our workshop!!!
Below is the photo.
We have a powerful team which is more than 150 staff.
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents meet customer’s requirements.
Provide considerate services to minimize clients’ worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.
Service commitment
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely
