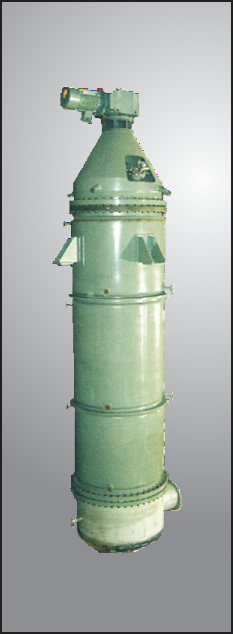

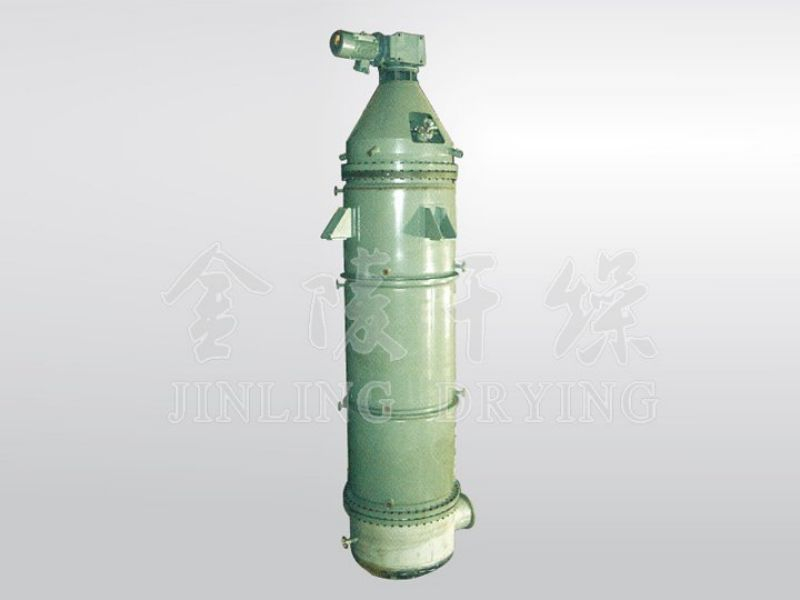

DZ Molecular Distillation Equipment

Availability:
Quantity:

Product Description


DZ Molecular Distillation Equipment Descriptions


Molecular distillation, also called short-path distillation, is mainly used for the gentle separation of materials with high heat sensitivity or high boiling point. It is widely used for deodorization,purification, concentration and other processes across petrochemical industry, fine chemical industry, pharmaceutical industry, pesticide industry, food industry, oil industry, and environmental protection industry.


DZ Molecular Distillation Equipment Features


1、The vacuum level to operate molecular distillation is high, which is around 1Pa;


2、Molecular distillation has a low evaporation temperature, which is much lower than the boiling point of the material;


3、The material used for molecular distillation has a short heating time;


4、The efficiency of separation is high.


DZ Molecular Distillation Equipment Technical Specifications


型号 Model

蒸发面积Evaporation Area (m2)

冷凝面积Condensing Area (m2)

高度Height (mm)

内径

Vessel Diameter (mm)

重量Weight (kg)

DZ0.06

0.06

0.06

1000

80

20

DZ0.1

0.1

0.11

1100

125

40

DZ0.3

0.3

0.38

1600

160

100

DZ0.75

0.75

1.2

2100

280

200

DZ1.5

1.5

2

3200

350

500

DZ3

3

5

3800

500

900

DZ4.5

4.5

7.5

5000

500

1100

DZ6

6

10

5300

800

1500

DZ9

9

16

6200

1000

3000

DZ12

12

24

6500

1200

6000

DZ18

18

36

7200

1500

9000

DZ24

24

50

8500

1500

12000

DZ36

36

80

9300

2000

23000

DZ50

50

120

11000

2200

30000
