Jinling Technology specializes in thin film evaporators, featuring high heat transfer efficiency and short heating times (5-10 sec), ideal for heat-sensitive materials. Equipped with centrifugal rotors and movable scrapers, it enhances evaporation by 40-69%. Various scraper types are available for different needs. The system supports automatic, continuous production under sealed conditions, requiring minimal space and easy maintenance. Ideal for industries like pharmaceuticals and food processing.
Jiangsu Jinling Drying
841939990
| Quantity: | |
|---|---|
Product Description

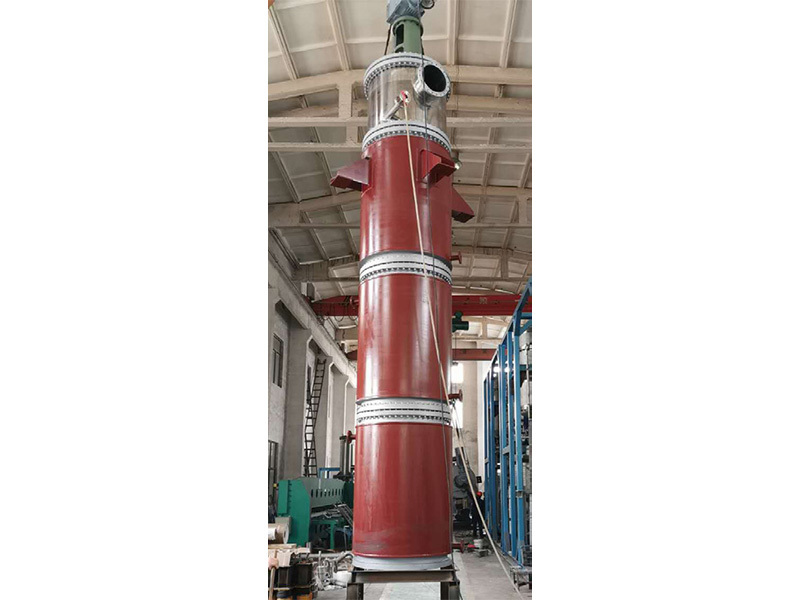

Thin film evaporators are advanced devices designed for the efficient evaporation, concentration, and distillation of various materials. Jinling Technology specializes in manufacturing high-performance thin film evaporators that handle heat-sensitive and viscous materials effectively, delivering enhanced efficiency and product quality.
The system uses a centrifugal rotor combined with a movable scraper to quickly remove sediment from the inner wall surface of the evaporation cylinder. This design enhances evaporation efficiency by up to 69% compared to traditional fixed-gap scrapers.
The thin film design ensures efficient heat transfer, reducing energy consumption and improving performance.
The heating time is limited to 5-10 seconds, making it ideal for heat-sensitive materials, minimizing thermal degradation and preserving product integrity.
Uniform thin film formation ensures consistent thermal exposure, improving material quality.
Jinling Technology's thin film evaporators offer multiple scraper structures for different applications, ensuring flexibility and efficiency.
Membrane pillar scrapers
Hinged scrapers
Fixed scrapers
W-type scrapers
Each scraping structure can be optimized based on material properties and process requirements.
The equipment is designed for space efficiency and ease of maintenance, making it suitable for integration with other systems in industrial environments.
The evaporator operates under sealed conditions to enable automatic, continuous production. This ensures safety, consistent performance, and ease of operation.
| Model | Heat Transfer Area (m²) | Steam Pressure (MPa) | Vacuum Level (MPa) | Evaporation Capacity (kg/h) | Steam Consumption (kg/h) | Motor Power (kW) | Agitator Speed (rpm) | Height (mm) |
|---|---|---|---|---|---|---|---|---|
| GBN1 | 1 | 0.3 | -0.08 | 200 | 220 | 1.5 | 35 | 3100 |
| GBN2 | 2 | 0.3 | -0.08 | 400 | 440 | 2.2 | 50 | 4000 |
| GBN6 | 6 | 0.3 | -0.08 | 1200 | 1320 | 7.5 | 120 | 8000 |
Thin film evaporators handle materials with solid particles, crystallization, polymerization, and scaling. They are ideal for pharmaceuticals, food, chemicals, and more.
Short heating times (5-10 seconds) minimize thermal degradation, preserving the quality of heat-sensitive materials.
Yes, thin film evaporators can be customized with different scraper types and configurations to meet specific application requirements.
