English
 |
GZL
SUS304/SUS316L/2205 ETC
fertilizer, chemical, pharmaceutical
Changzhou,Jiangsu,China
CE,ISO 9001: 2008,ISO 10004
Customized
| Quantity: | |
|---|---|
Product Description

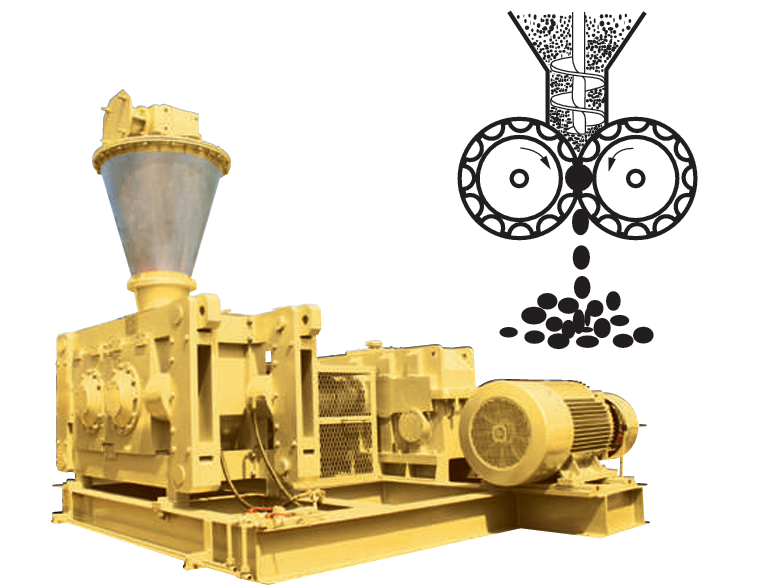

The Double Roller Compactor Dry Granulator is an advanced dry granulation machine that converts fine powders into dense, free-flowing granules using roller compaction technology. This binder-free granulation system operates without liquid addition and without a drying process, making it an ideal solution for heat-sensitive and moisture-sensitive materials.
Also referred to as a double roller dry granulator, roller compaction granulator, or twin roller granulator, this equipment is widely applied in fertilizer, chemical, pharmaceutical, food additive, and battery materia processing industries.

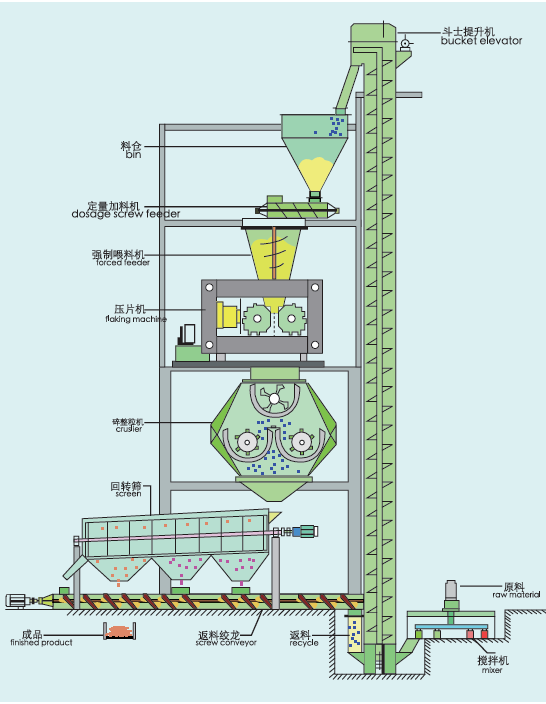

The double roller compactor dry granulator feeds dry powder uniformly into a roller press granulator, where
two counter-rotating rollers apply high pressure to form compact flakes. These flakes are then processed by a flake crusher granulator and classified through a screening system to obtain granules with controlled particle size.
This dry granulation process eliminates the need for drying equipment, reduces energy consumption, and improves overall production efficiency compared to traditional wet granulation systems.
No liquid binders or solvents required
No drying system or evaporation stage
Ideal for dry powder granulation
Adjustable roller pressure and roller gap
Stable powder compaction granulation
Consistent granule density and strength
Compact dry granulator structure
Low power consumption
Continuous granulation system for industrial production
Produces high-density granules
Uniform granule size distribution
Excellent flowability for storage and packaging
Integrated flake crusher granulator
Multi-stage screening system
Flexible adjustment for different applications
Simple and robust mechanical design
Easy operation and maintenance
Long service life with low operating cost
| Part no | GF-2 | GF-3 | GF-450 | GF-550 | GF-650 |
| Rotating speed(rpm) | 10-25 | 10-25 | 10-25 | 10-25 | 10-25 |
| Roller diameter(mm) | 240 | 300 | 450 | 550 | 650 |
| Maximum forming pressure（KN） | 320 | 800 | 1300 | 1500 | 2100 |
| Finished product particle(mm) | 0.5-10 | 0.5-10 | 0.5-10 | 0.5-16 | 0.5-16 |
| Material capacity(kg/h) | 200 | 500-1000 | 1000-3000 | 2000-3500 | 2500-5000 |
| Installation power(kw) | 30 | 50 | 80 | 110 | 175 |
Compound fertilizer granulation
NPK fertilizer dry granulator
Mineral and soil conditioner processing
Pigments, catalysts, resins, additives
Organic and inorganic chemical powders
Pharmaceutical dry granulator
Food additive granulation machine
Clean and controlled granulation process
Battery material granulator
Electrode powder compaction
High-precision dry granulation
Eliminates drying and liquid handling costs
Energy-saving and environmentally friendly
High production efficiency and stable quality
Suitable for continuous industrial operation
As a professional double roller compactor dry granulator manufacturer, we supply reliable industrial dry granulation equipment for global markets. Our solutions are designed to meet diverse material requirements and production capacities, with options for customized dry granulator solutions and automation.
If you are looking for a trusted dry granulator supplier offering stable performance, competitive pricing, and long-term technical support, our roller compaction granulator is a proven choice.
