A Complete Guide to Pharmaceutical Roller Compaction Technology
A GMP dry granulator is a pharmaceutical-grade roller compaction system designed and manufactured in compliance with Good Manufacturing Practice (GMP) standards. It is used to convert fine powders into uniform granules without adding liquid binders, making it ideal for moisture-sensitive and heat-sensitive materials.
In the pharmaceutical industry, a GMP-compliant dry granulation machine ensures:
-Controlled production environment
-Contamination-free processing
-Validation-ready documentation
-Easy cleaning and maintenance
-Regulatory compliance (FDA, EU GMP, WHO GMP)
Dry granulators are widely used in tablet production, capsule filling, battery materials, food additives, and chemical processing industries.
GMP (Good Manufacturing Practice) is a regulatory system enforced by authorities such as:
-U.S. Food and Drug Administration
-European Medicines Agency
-World Health Organization
GMP ensures that pharmaceutical equipment:
-Is made from food-grade or pharmaceutical-grade materials (e.g., SS316L stainless steel)
-Has no dead corners or contamination zones
-Supports cleaning validation (CIP/SIP)
-Maintains traceability and documentation
Unlike wet granulation, dry granulation does not require water or solvents. The process typically involves:
Powder Feeding System
Roller Compaction
Flake Crushing
Granule Milling
Sieving and Collection

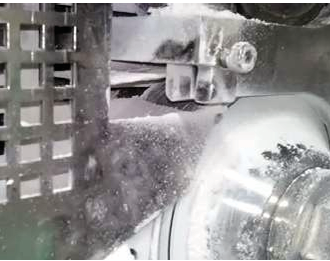

The core principle is high-pressure roller compaction, where powders are compressed between two counter-rotating rollers to form solid sheets (flakes), which are then milled into granules.
Powder → Feeding Screw → Compaction Rollers → Flakes → Milling → Uniform Granules
-316L stainless steel contact parts
-Mirror-polished surface (Ra ≤ 0.4 μm)
-Fully enclosed design
-Explosion-proof options
-Negative pressure dust control
-PLC + HMI touch screen
-Data recording and batch traceability
-Pressure monitoring system
-Automatic roller gap adjustment
Below is a typical specification table for a pharmaceutical GMP dry granulation machine:
| Model | Capacity (kg/h) | Roller Diameter (mm) | Roller Width (mm) | Motor Power (kW) | Application |
|---|---|---|---|---|---|
| GMP-50 | 5–20 | 200 | 50 | 5.5 | Lab / R&D |
| GMP-120 | 30–80 | 240 | 120 | 15 | Pilot scale |
| GMP-200 | 100–300 | 300 | 200 | 30 | Industrial production |
| GMP-360 | 300–800 | 360 | 360 | 55 | Large-scale pharma |
| Comparison | GMP Dry Granulator | Wet Granulator |
|---|---|---|
| Liquid Required | No | Yes |
| Suitable for Heat-Sensitive Materials | Yes | No |
| Energy Consumption | Lower | Higher |
| Process Time | Shorter | Longer |
| Environmental Impact | Minimal | Higher solvent handling |
Dry granulation is especially suitable for:
-APIs sensitive to moisture
-Effervescent tablets
-Traditional Chinese medicine extracts
-Battery cathode materials
-Tablet compression granules
-Capsule filling materials
-Sustained-release formulations
-Direct compression improvement
-Fertilizer granulation
-Catalyst production
-Fine chemical powders
-Nutritional supplements
-Food additives
-Protein powders
-Meets FDA and EU standards
-Supports validation documentation (IQ/OQ/PQ)
-Easy cleaning validation
-Uniform granule density
-Better flowability
-Higher tablet hardness
-Reduced dust
-No drying step required
-Lower operational cost
-Reduced manpower
As a professional OEM pharmaceutical equipment manufacturer, Jiangsu Jinling offers:
-ISO-certified production facility
-CE certification
-Exported to USA, EU, Southeast Asia
-Roller surface customization
-Explosion-proof design
-Integrated granulation & milling system
-FAT/SAT support
-DQ documentation
-Remote technical assistance
Direct manufacturer supply with global export experience.
Dry granulation uses mechanical compression without liquid binders, while wet granulation requires a solvent and drying process.
Yes, for pharmaceutical production targeting regulated markets such as the US or EU, GMP compliance is essential.
Moisture-sensitive APIs, effervescent powders, herbal extracts, nutraceuticals, and battery materials.
Yes. Modern GMP dry granulators use PLC-controlled hydraulic systems to adjust compaction pressure precisely.
A GMP dry granulator is an essential piece of pharmaceutical manufacturing equipment that enables efficient, binder-free granulation while maintaining strict regulatory compliance. With advanced roller compaction technology, intelligent PLC control, and contamination-free design, it ensures high-quality granule production suitable for modern pharmaceutical and chemical industries.
As global regulations continue to tighten, investing in GMP-compliant dry granulation systems is not only a quality decision but also a strategic one for long-term business growth.
