Product Description
The sludge paddle dryer operates on the principle of indirect heat transfer combined with gentle mechanical agitation. It is specially designed to dry high-moisture, sticky, or paste-like sludge materials using hollow paddles and a jacketed trough as the heat exchange surfaces.
Heating medium (such as steam, hot water, or thermal oil) flows through the hollow paddles and dryer jacket.
Heat is indirectly transferred to the sludge through the metal surfaces, avoiding direct contact with hot air, which reduces dust and emissions.
The rotating hollow shafts with paddles continuously mix and agitate the sludge.
This ensures even exposure to heat and prevents caking or sticking to the inner surfaces.
The applied heat causes the moisture in the sludge to evaporate gradually.
In vacuum systems, the boiling point of water is reduced, speeding up evaporation and improving energy efficiency.
The evaporated water (as vapor) is removed through a vapor outlet and sent to a condenser or scrubber system, depending on the setup.
This maintains low humidity inside the dryer, supporting continuous drying.
The dried sludge is discharged from the bottom outlet, often as a semi-dry or dry powder/cake.
Indirect heat + mechanical mixing → uniform drying with low energy loss and controlled emissions

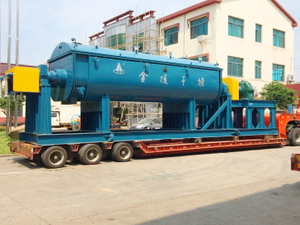

200 square meter sludge paddle dryer
100 square meter sludge paddle dryer
Lab test using sludge paddle dryer

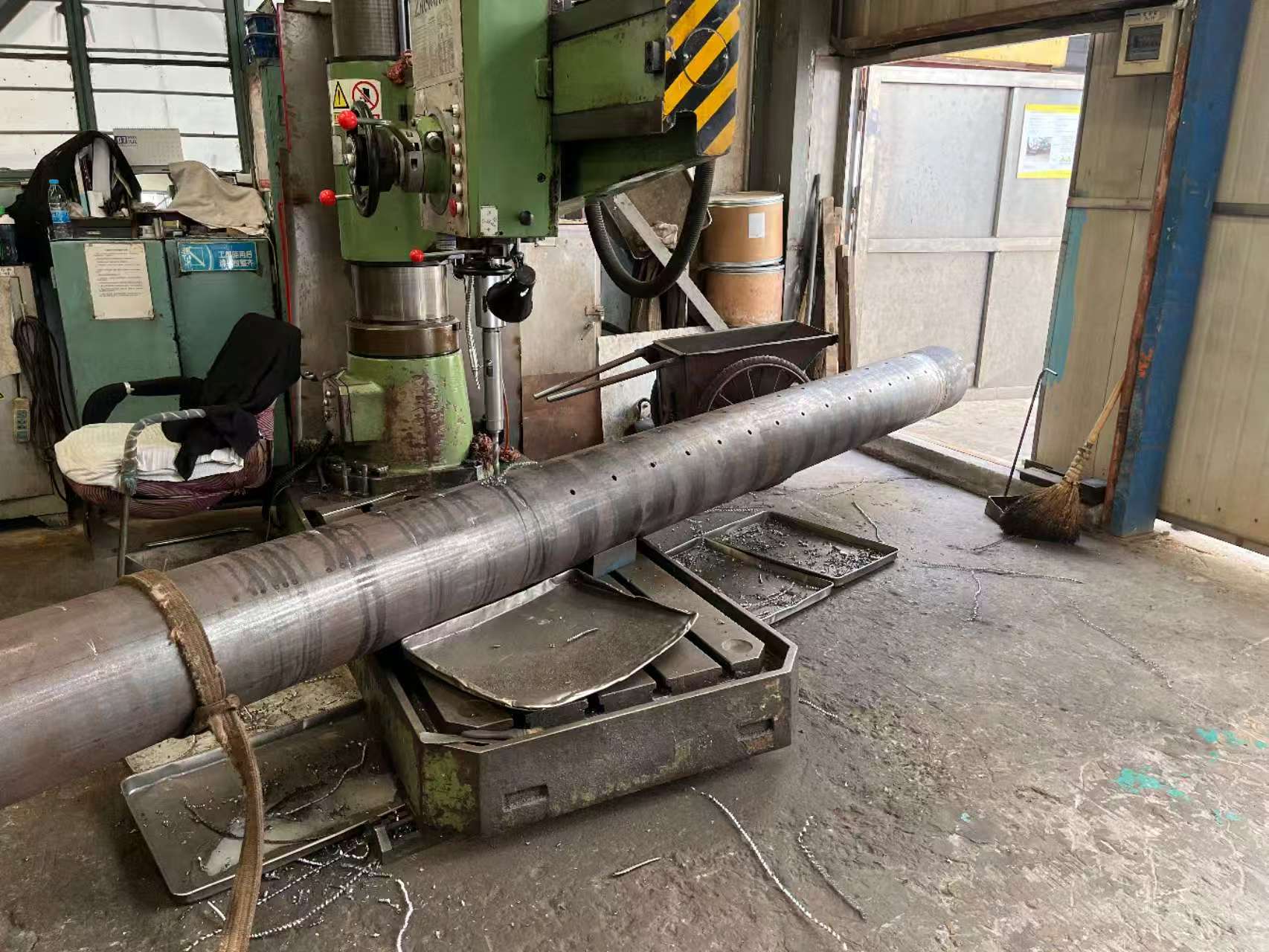

Paddle Dryer Inner shaft

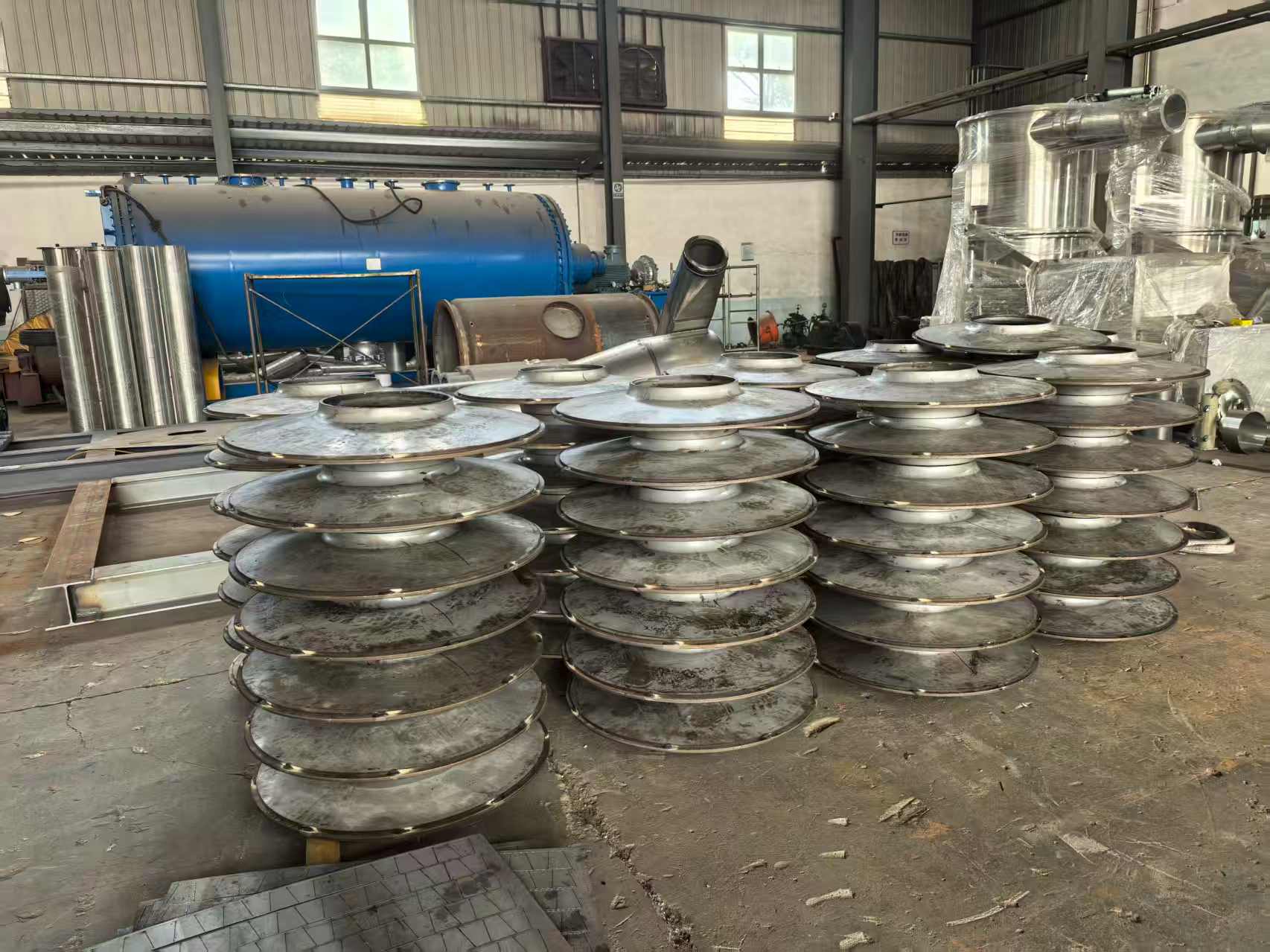

Round plate to install on the shaft

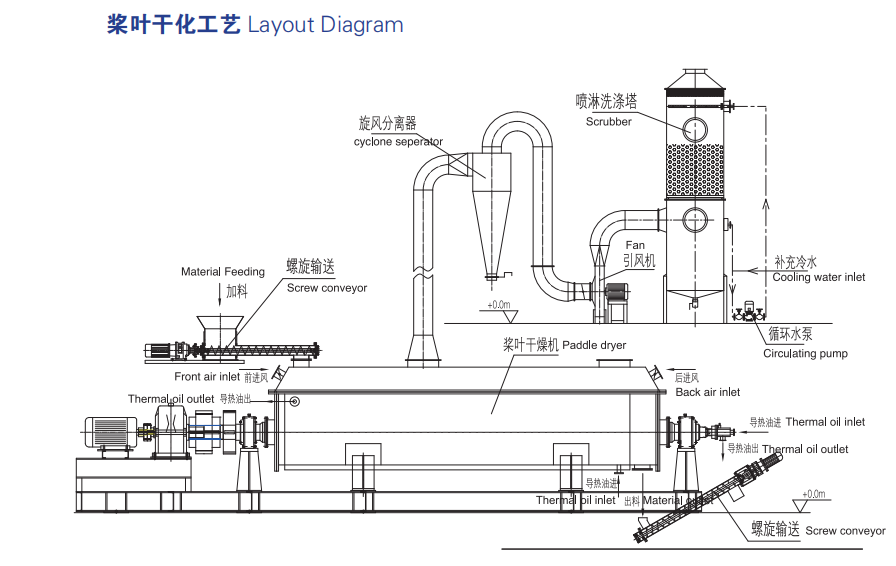

Hollow Sludge Paddle Dryer Design and Structure
The sludge paddle dryer consists of several key components, all designed to ensure efficient, uniform, and safe drying of sludge materials. Its structure supports indirect heat transfer, continuous mixing, and effective moisture removal.
A horizontal, jacketed trough made of carbon steel or stainless steel.
The outer jacket circulates the heating medium (steam, thermal oil, or hot water) to provide indirect heat.
One or two hollow shafts run through the dryer and are fitted with numerous wedge-shaped or semi-circular hollow paddles.
These paddles are also filled with the heating medium to maximize heat exchange surface area.
They rotate slowly to mix, agitate, and convey the sludge forward.
Includes a motor, reducer, and gear system that drives the rotation of the paddle shafts.
Ensures low-speed, high-torque operation for handling heavy and sticky sludge.
A screw feeder, pump, or gravity chute introduces sludge into the drying chamber.
Designed to avoid material blockage and maintain a continuous flow.
Dried sludge exits through a discharge port at the opposite end.
May include a screw conveyor or rotary valve to control output.
Moisture evaporated during drying exits through a vapor outlet.
The vapor can be sent to a condenser, scrubber, or dust collector, depending on environmental requirements.
The outer surface of the shell is often insulated and clad to minimize heat loss and improve energy efficiency.
A centralized PLC or HMI control system monitors temperature, shaft speed, feed rate, and pressure for safe and automated operation.
5.Optional Components:
6.Vacuum system(for low-temp drying)
Gas-tight seals(for hazardous materials)
Explosion-proof design (for flammable content)
This structure allows the sludge paddle dryer to handle sticky, high-moisture content materials efficiently, with minimal odor and dust emissions.
Let me know if you need a labeled diagram or technical specs for each component.
