Product Description
A Horizontal Fluid Bed Dryer is a highly efficient continuous drying system designed for drying powders, granules, crystals, pellets, and other bulk materials. By suspending the product in a stream of heated air, the material behaves like a fluid, ensuring uniform heat transfer and rapid moisture evaporation.
Jiangsu Jinling Drying Technology specializes in manufacturing advanced Horizontal Fluidized Bed Dryers for the pharmaceutical, chemical, food processing, battery materials, fertilizer, and mineral industries.
High thermal efficiency
Uniform drying performance
Continuous production operation
Low energy consumption
Excellent product quality retention
Adjustable drying parameters
Easy cleaning and maintenance
Suitable for heat-sensitive materials
Pharmaceutical granules
Food additives
Chemical powders
Fertilizer particles
Battery materials
Pigments and dyes
Agricultural products
Crystalline materials
The Horizontal Fluid Bed Dryer operates by introducing heated air through a perforated distribution plate. The airflow lifts and suspends the material, creating a fluidized state.
As the material moves through multiple drying zones, moisture is efficiently removed while maintaining product integrity.
Wet material enters the dryer through a feeding system.
Hot air passes upward through the air distribution plate, creating a fluidized bed.
The fluidized particles are continuously exposed to heated air, maximizing heat exchange efficiency.
Water evaporates rapidly and exits through the exhaust system.
The dried product is continuously discharged from the outlet.

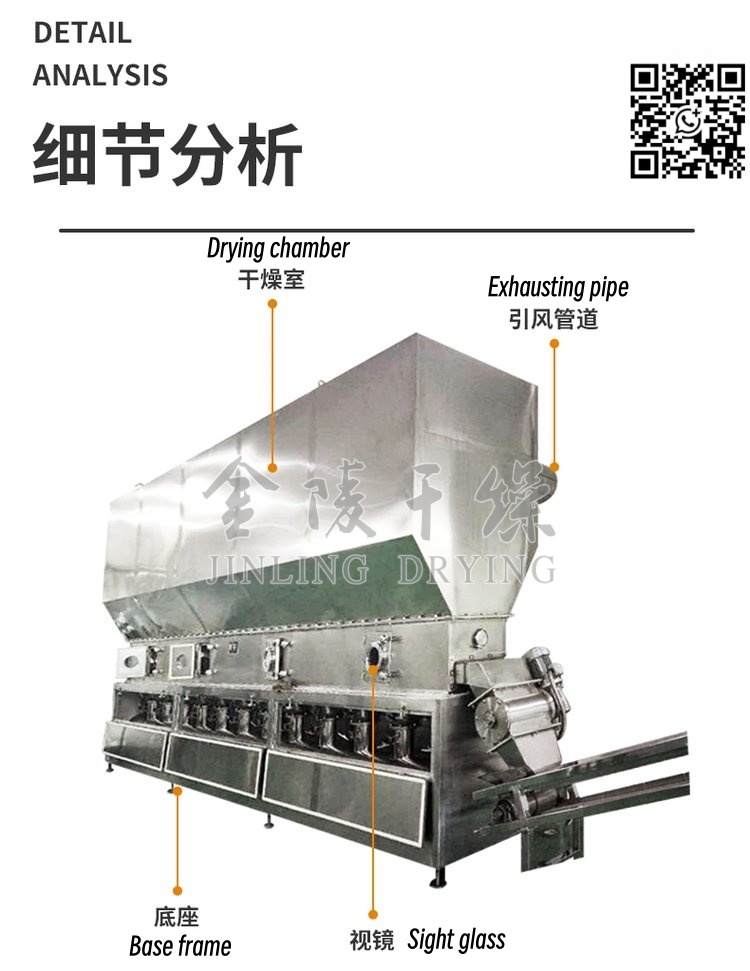

Constructed from stainless steel for corrosion resistance and hygienic operation.
Ensures uniform airflow distribution and stable fluidization.
Can utilize:
Steam heating
Electric heating
Natural gas heating
Thermal oil heating
Includes cyclones, bag filters, and dust collectors for environmental compliance.
Provide continuous and controlled product handling.
Different temperature zones improve drying efficiency and product quality.
Optimized for various particle sizes and moisture contents.
Ideal for large-scale industrial production.
High heat utilization reduces operational costs.
Suitable for pharmaceutical and food-grade applications.
Used for drying tablets and capsule granules.
Suitable for active pharmaceutical ingredient production.
Protein powder
Starch
Seasonings
Sugar granules
Ensures consistent moisture content and product quality.
Pigments
Resins
Catalysts
Fine chemicals
Widely used in lithium battery production.
Improves storage stability and product appearance.
Our fluidized bed dryers are engineered for maximum efficiency and reliability.
We provide tailor-made drying systems according to:
Material characteristics
Production capacity
Moisture requirements
Industry standards
Our equipment has been successfully exported to:
Europe
Russia
Southeast Asia
Middle East
South America
Installation guidance
Commissioning support
Operator training
Spare parts supply
Technical consultation
| Model | Power of Fan(kw) | Capacity (kg/h) | Air Temperature (°C) | Feeding Type | |
|---|---|---|---|---|---|
| XF-10 | 7.5 | 10-15 | 60-200 |
| |
| XF-20 | 11 | 20-25 | 60-200 | ||
| XF-30 | 18.5 | 30-40 | 60-200 | ||
| XF-50 | 30 | 50-80 | 60-200 | ||
| XF 1*6 | 60 | -200 | 60-200 | ||
| XF 2*12 | 230 | -1200 | 60-200 | ||
Custom sizes and capacities are available upon request.
We are a professional manufacturer of industrial drying equipment with extensive expertise in:
Fluid Bed Dryers
Spray Dryers
Paddle Dryers
Vacuum Dryers
Belt Dryers
Rotary Dryers
ISO Certified Manufacturing
GMP Design Available
CE Compliance Available
From laboratory testing to full-scale industrial production, we offer complete drying solutions.
Powders, granules, crystals, pellets, fertilizers, chemicals, pharmaceuticals, food ingredients, and battery materials.
Yes. The Horizontal Fluid Bed Dryer is specifically designed for continuous drying operations.
Yes. Airflow, temperature, drying zones, capacity, and construction materials can all be customized.
Steam, electricity, thermal oil, and natural gas heating systems are available.
Looking for a reliable Horizontal Fluid Bed Dryer manufacturer?
Jiangsu Jinling Drying Technology provides customized fluidized bed drying solutions with high efficiency, low energy consumption, and long service life.
Contact us today to receive technical support, material testing, and a competitive quotation for your drying project.
