Principle: Fluidization, Filtration, Heat Transfer
Filtered, heated air enters the dryer’s base, ascending through a mesh plate and wet material. Fluidized drying is achieved via stirring/negative pressure in the chamber. Moisture-laden air passes through dust-collecting cloth bags, expelled by an induced draft fan, ensuring material dehydration.
Jiangsu Jinling Drying
841939990
| Quantity: | |
|---|---|
Product Description

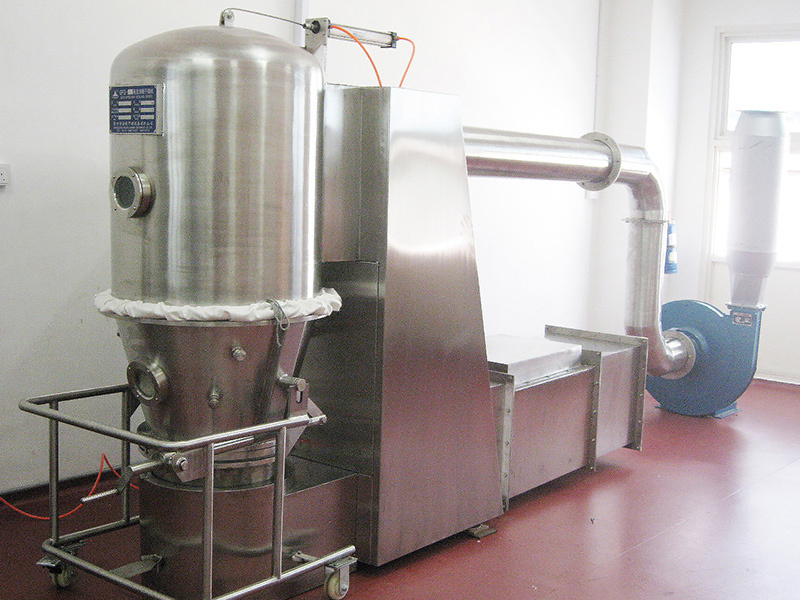

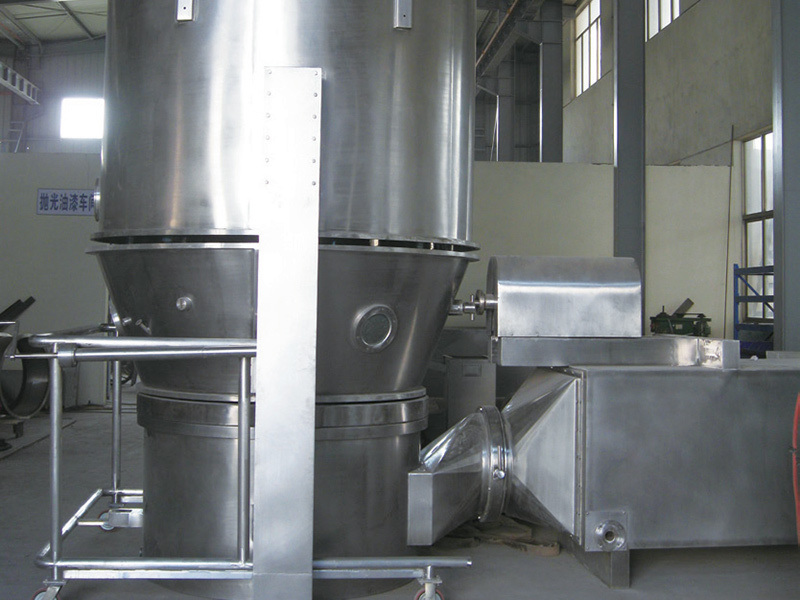

Once the air is filtered and heated, it enters the main body of the dryer from the bottom. The air passes through the mesh plate of the hopper and the material. In the drying chamber, a fluidized drying state is achieved through stirring or negative pressure. As the drying process continues, the dust is captured by a cloth bag, and the moisture is discharged via the induced draft fan, ultimately drying the material efficiently.
The fluidized bed is designed with a circular structure to ensure complete coverage without missing any corners.
The system can utilize vibration or the pulsing of the cylinder for effective dust removal during operation.
An agitator can be added to the hopper to prevent the agglomeration of wet materials and eliminate channeling issues during the drying process. Note that smaller machines may not include agitators.
Materials are typically tilted and unloaded manually. However, automatic feeding and discharging systems can be incorporated, depending on specific requirements.
The entire system operates under negative pressure with a sealed design. Air can be filtered or dehumidified through multiple stages, ensuring compliance with "GMP" standards.
This equipment offers fast drying speed, a wide range of applications, and is easy to operate and clean.
Model 60: Power of the Main Machine (kW): 7.5, Stirring Power (kW): 0.55
Model 100: Power of the Main Machine (kW): 11, Stirring Power (kW): 0.55
Model 120: Power of the Main Machine (kW): 15, Stirring Power (kW): 0.55
Model 150: Power of the Main Machine (kW): 18.5, Stirring Power (kW): 0.55
Model 200: Power of the Main Machine (kW): 22, Stirring Power (kW): 0.75
Model 300: Power of the Main Machine (kW): 30, Stirring Power (kW): 1.1
Model 500: Power of the Main Machine (kW): 45, Stirring Power (kW): 1.5
The fluid bed dryer is extensively used in the pharmaceutical industry for batch drying or cooling of powdery and granular materials, ensuring uniform quality and efficient production processes.
In the food processing industry, the fluid bed dryer is employed for drying various food products, maintaining quality and texture while speeding up the drying process.
Fluid bed dryers are commonly used in animal feed production, offering fast and uniform drying of feed materials, which improves product quality and consistency.
The fluid bed dryer finds significant use in the chemical industry for drying granular chemicals, offering an efficient and controlled drying environment to maintain chemical properties.
