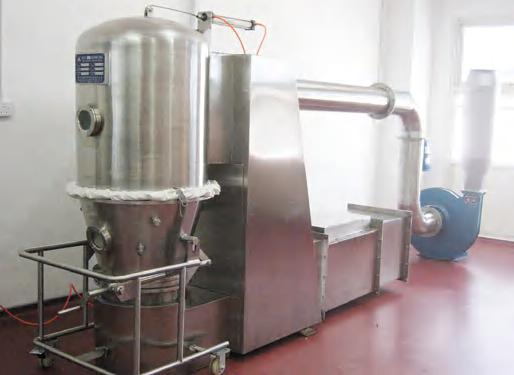

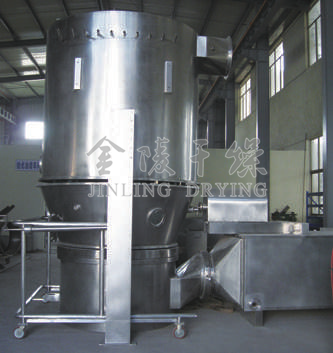

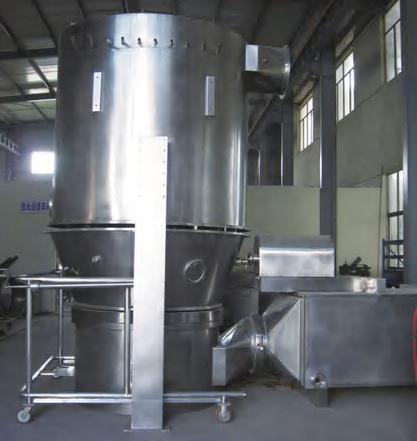

High -Efficiency Fluidized Bed Dryer



Once the air is filtered and heated, it enters the main body of the dryer from the bottom, and passes through the mesh plate of the hopper and the material. In the drying chamber, the fluidized drying state is formed by stirring or negative pressure. After the dust is collected by the cloth bag,the  moisture is discharged by the induced draft fan so that the material can be dried in the end.
  • GFG

  • JIANGSU JINLING DRYER

Availability:
Quantity:

Product Description

High-Efficiency Fluidized Bed Dryer


Principle of High-Efficiency Fluidized Bed Dryer


◆Once the air is filtered and heated, it enters the main body of the dryer from the bottom, and passes through the mesh plate of the hopper and the material. In the drying chamber, the fluidized drying state is formed by stirring or negative pressure. After the dust is collected by the cloth bag,the  moisture is discharged by the induced draft fan so that the material can be dried in the end.



Features of High-Efficiency Fluidized Bed Dryer


◆The fluidized bed has a circular structure in case any corners are missing.

◆The vibration or the pulse of the cylinder can be used for dust removal;

◆We can add an agitator to the hopper to avoid the agglomeration of wet materials and channeling formed during the drying process (small machines do not have any agitators).

◆We usually tilt and unload the material manually. The automatic feeding and discharging system can also be designed if necessary.

◆The equipment is sealed and operated under negative pressure. The air can be filtered or dehumidified through multiple stages. It is a fluidized drying equipment that meets the requirements of "GMP".

◆This equipment has fast drying speed, wide range of applications, easy operation and easy cleaning.


Applications of High-Efficiency Fluidized Bed Dryer


◆It is widely used for batch drying or cooling of powdery and granular materials with good fuidity across the pharmaceutical, food, animal feed, chemical and other industries.





Technical Specifications of High-Efficiency Fluidized Bed Dryer


 Item Model
Model 60 100 120 150 200 300 500
Power of the Main Machine (kW) 7.5 11 15 18.5 22 30 45
Stirring Power (kW) 0.55 0.55 0.55 0.55 0.75 1.1 1.5
Stirring Speed (kW) 11
Height Circular(mm) 2700 2900 2900 2900 3100 3600 3850
