ZLG Vibrating Fluid Bed Dryer Machine

Jinling dryer combines vibration technology with precise airflow control, ensuring fast moisture removal, improved product quality, and reduced energy consumption. Ideal for pharmaceutical, chemical, and food industries, this solution offers reliability, scalability, and easy maintenance. Explore how our fluidized bed drying system can optimize your production process and enhance operational efficiency.

Model:
ZLG
Brand:
Jiangsu Jinling Dryer
Code:
841939990
Material:
SUS304/SUS316L/2205 ETC
Place of Origin:
Changzhou,Jiangsu,China
Certificate:
CE,ISO 9001: 2008,ISO 10004
Capacity:
Customized

Availability:

Quantity:



Inquire

Product Description

Product Description

Continuous Vibrating Fluid Bed dryer Fluidized Bed Dryer Principle:

Raw material is fed into the dryer from the feeding end and moves forward continuously along under the function of vibration.The hot air penetrate fluid bed plate and dry damp raw material.Then he damp air is exhausted out through cyclone separator and dried raw material is discharged through discharge en.

Continuous Vibrating Fluid Bed dryer Fluidized Bed Dryer Features:

-Height if fluidizing chamber and dust collection is b requirement.

-The vibration is created by motor.it is stable in operation and convenient in maitenance,low noise with long life span.

-High efficiency,raw material is heated evenly with high efficiency and drying capacity is high.compared with ordinary dryer,the energy can be saved about 30%

-It is good in regulation and wide in suitability.The thickness of raw material,moving seed and the amplitude can be adjusted

-It makes minimum damage to the surface of raw material.the equipment can be used for drying easy broken raw material.the dryer also suitable for drying irrgylar shape raw material.

-The dryer adopt closed operation,protect raw material from cross contamination,it is in continuous production.

vibrating fluid bed dryer.jpg

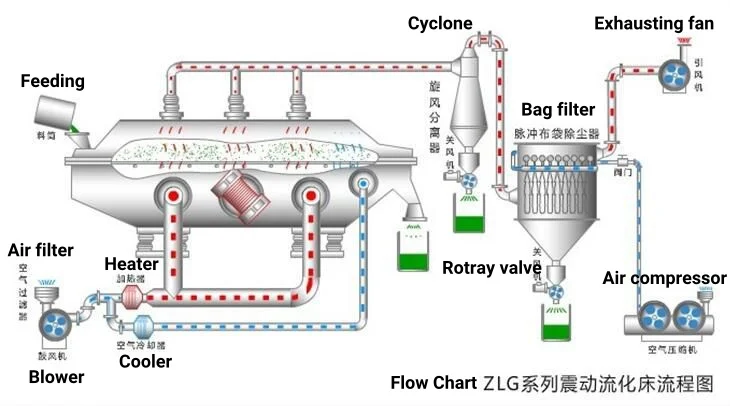

Continuous Vibrating Fluid Bed dryer Fluidized Bed Dryer Flow Chart

vibrating fluid bed dryer flow chart.jpg

Continuous Vibrating Fluid Bed dryer Fluidized Bed Dryer Specification.

Type	Area of fluid-bed(m²)	Temperature of inlet air (°C)	Evaporate moisture(kg)	Vibration motor(kw)
ZLG 0.3*3	0.9	70-300	20-35	0.75*2
ZLG 0.3*4.5	1.35	70-300	30-50	0.75*2
ZLG 0.45*4.5	2.025	70-300	50-70	1.1*2
ZLG 0.6*4.5	32.7	70-300	70-90	1.1*2
ZLG 0.45*6	2.7	70-300	80-100	2.1*2
ZLG 0.6*6	3.6	70-300	100-130	1.5*2
ZLG 0.75*6	4.5	70-300	120-170	1.5*2
ZLG 0.9*6	5.4	70-300	140-170	2.2*2
ZLG 0.6*7.5	4.5	70-300	130-150	2.2*2
ZLG 0.75*0.75	5.625	70-300	150-180	3.0*2
ZLG 0.9*7.5	6.75	70-300	160-210	3.0*2
ZLG 1.2*7.5	9	70-300	180-270	3.7*2
ZLG 1.5*7.5	11.25	70-300	200-350	3.7*2

Technical Features

Feature	Description
Bed Size	Customizable according to production capacity
Airflow System	Uniform hot air distribution for consistent drying
Vibration Mechanism	Adjustable frequency and amplitude
Temperature Control	Precise PID control for heat-sensitive materials
Material Compatibility	Stainless steel, corrosion-resistant alloys

Vibrating Fluid Bed dryer Fluidized Bed Dryer Vedio

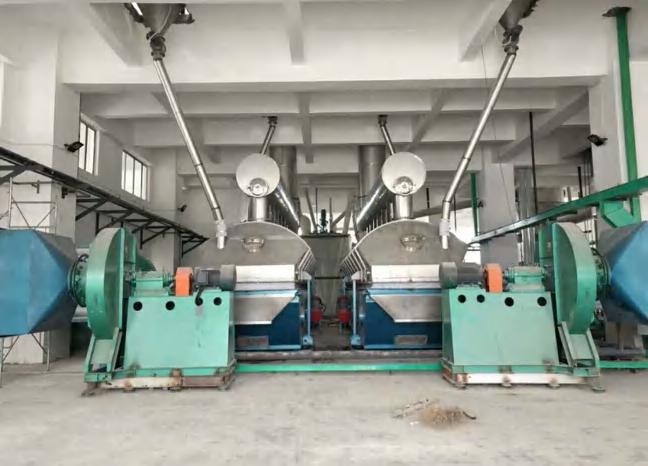

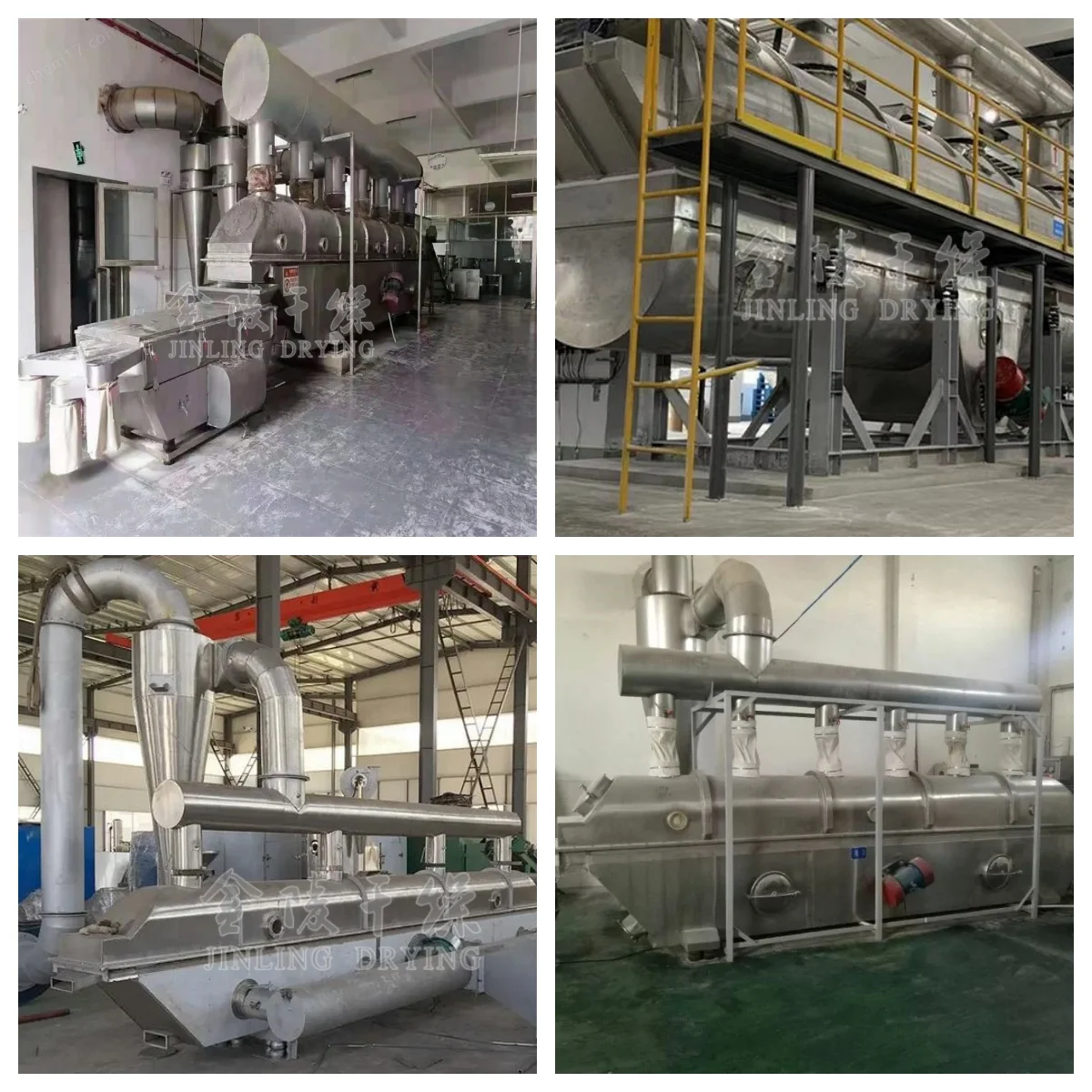

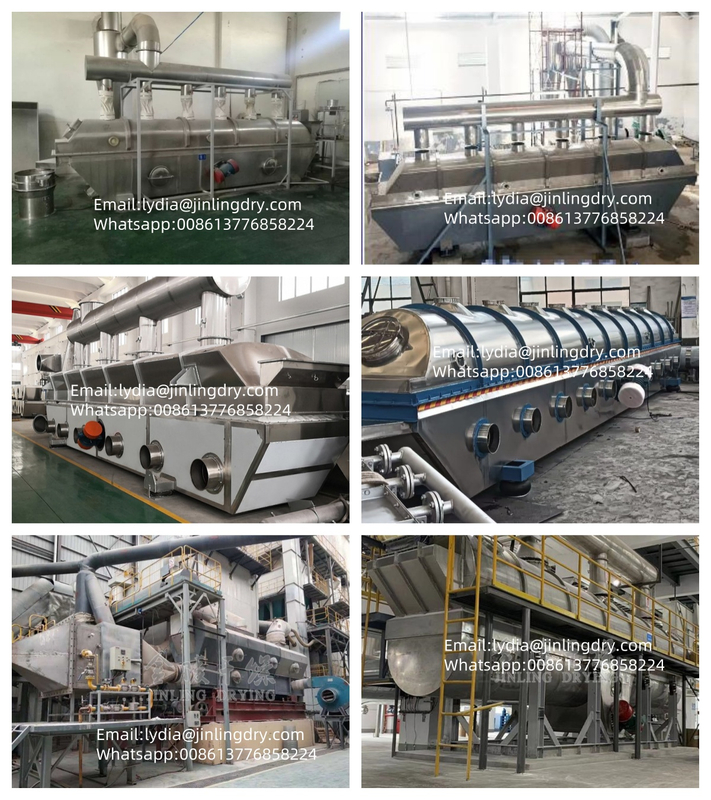

Continuous Vibrating Fluid Bed dryer Fluidized Bed Dryer On Customer Site Photo

Drying Bed Plate Of Continuous Vibrating Fluid Bed dryer Fluidized Bed Dryer

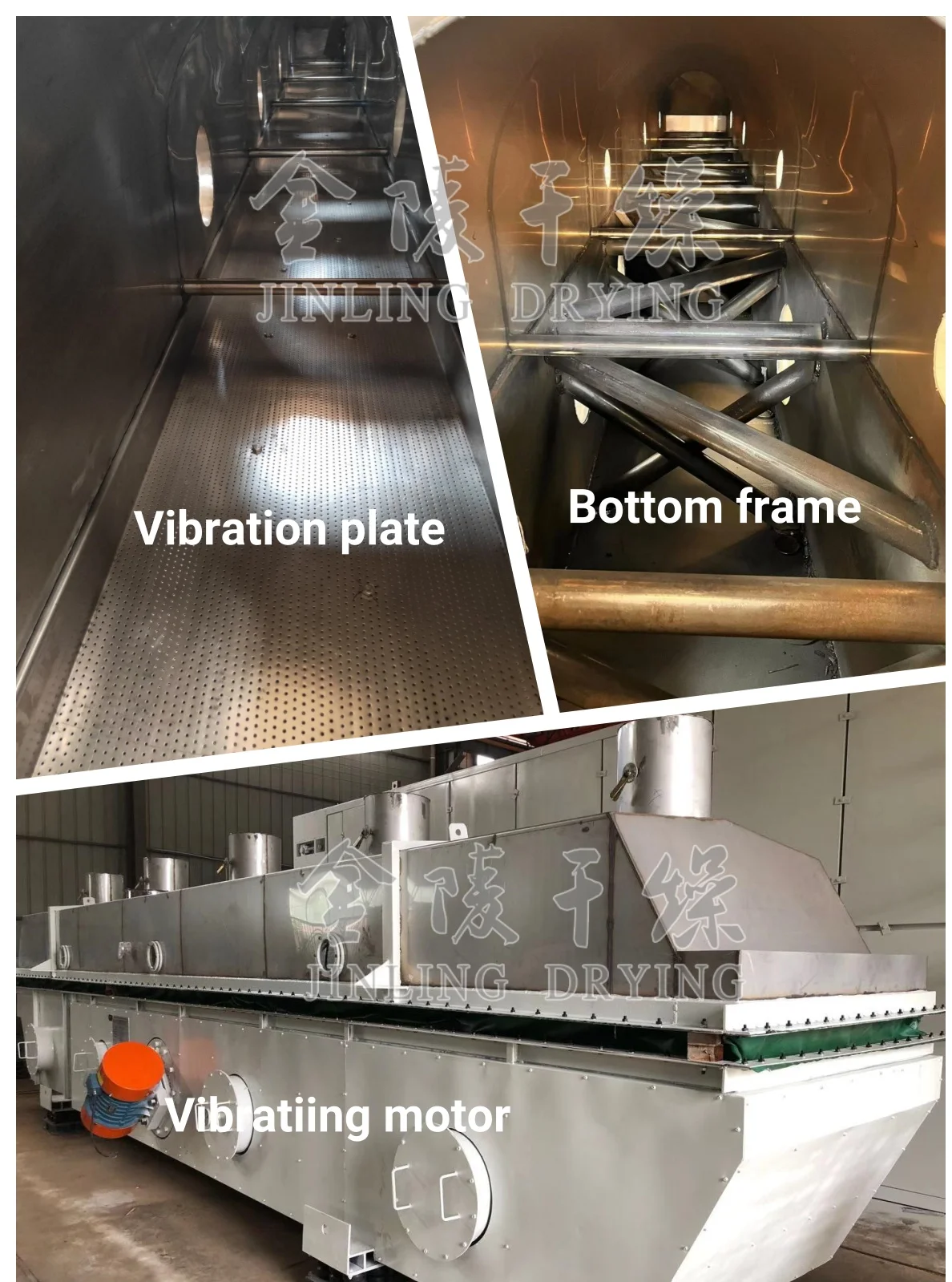

The vibration fluid bed dryer board is the main place where the material has been in contact with the material during the whole drying process and the water evaporates. so the bedboard of the vibration fluid bed dryer is very important. According to the characteristics of different materials, the fluidized bed dryer has a variety of drying bed plates to choose from. Jinling Drying has a straight perforated plate, tongue type perforated plate, mesh plate, or mixed perforated plate. For materials with small specific gravity, tongue-shaped hole bed plates are generally used. For powders or particles with large specific gravity and small particles, mesh plates are generally used (the minimum hole can reach 0.2 mm), such as salt, sodium sulfate, etc. Welcome to consult Jinling Drying Lydia. our engineers will give you free technical consultation.

vibrating fluid bed dryer plate.jpg

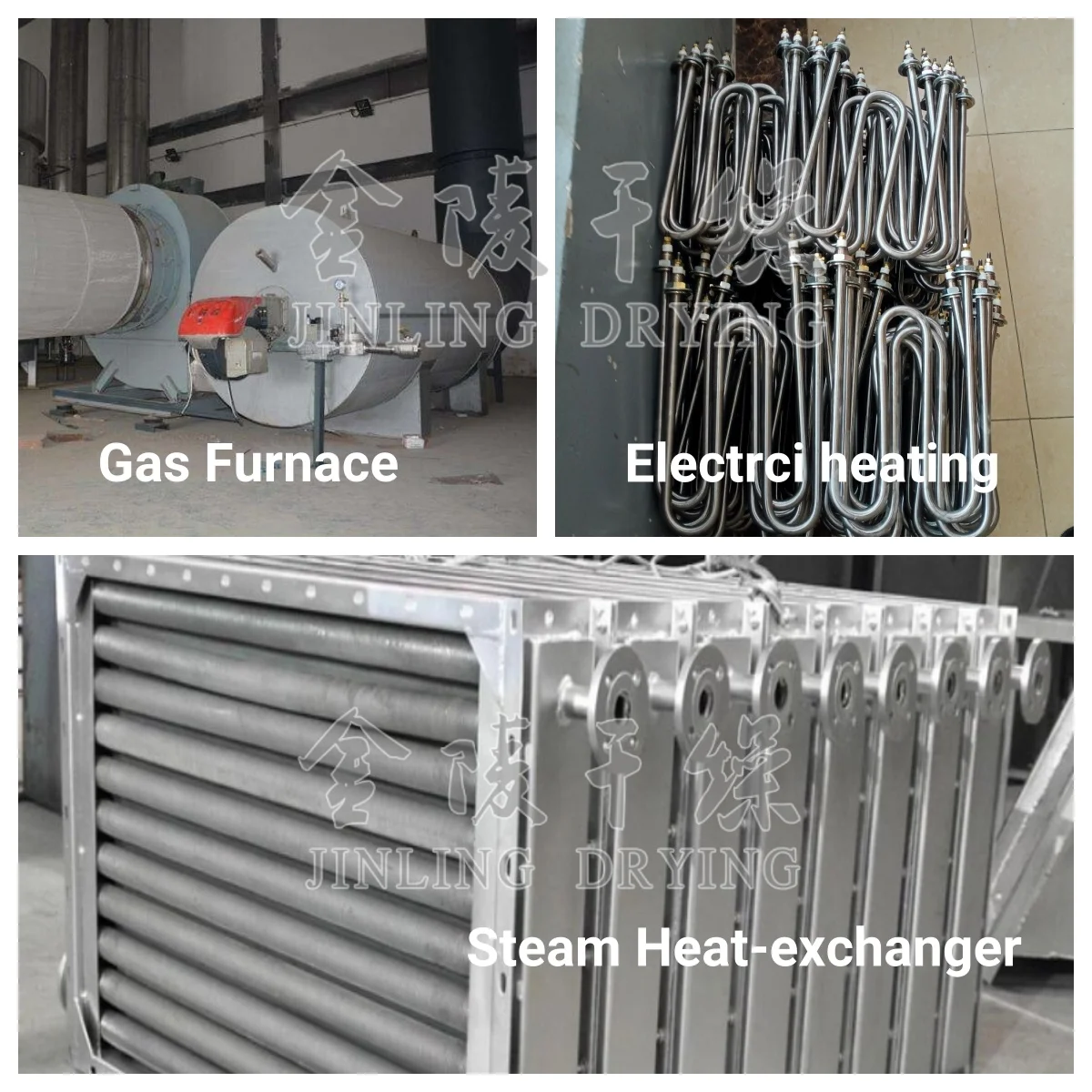

Heating Method Of Continuous Vibrating Fluid Bed dryer Fluidized Bed Dryer

Vibrating Fluid Bed Dryer Application

Vibratory fluid bed dryer is widely used in pharmaceutical, chemical, foodstuff, and electronic industries.

1. Vibratory Fluid Bed Dryers for the Petrochemical industry

Vibratory Fluid Bed Dryers for Inorganic

Ammonium hydrogen fluoride, potassium permanganate, sodium thiocyanate, cobalt sulfate, nickel sulfate, zinc sulfate heptahydrate, ammonium chloride, calcium, strontium chloride, sodium chlorate etc

Vibratory Fluid Bed Dryers for Organics

P-nitrobenzoic acid, fumaric acid, pentaerythritol, resorcinol, catechol, calcium hypochlorite, sodium silicate, GDL, sodium gluconate, thiourea, sorbitol, dicyandiamide.

Vibratory Fluid Bed Dryers for Pesticides

Imidacloprid granules, granules glyphosate

Vibratory Fluid Bed Dryers for Polymer

High-absorbent resin, a polystyrene resin, sodium polyacrylate

Vibratory Fluid Bed Dryers for Chemical additives

Methylcellulose, polyacrylamide, hydroxyethyl cellulose

2. Vibratory Fluid Bed Dryers for Food and beverage industry

trehalose, caramel, tartaric acid, coffee, bread crumbs, milk powder, citric acid, potassium citrate, sodium citrate, maltitol, xylose, and xylitol.

vibrating fluid bed dryer appliation.jpg

Why Our Vibrating Fluid Bed Dryer Stands Out

Jiangsu Jinling Drying Technology With advanced vibration technology, uniform hot air distribution, and robust construction, our dryer offers superior performance compared to traditional fluid bed dryers. It is ideal for continuous production, large-scale operations, and sensitive materials.
