Multi- Circulating Rotary Dryer

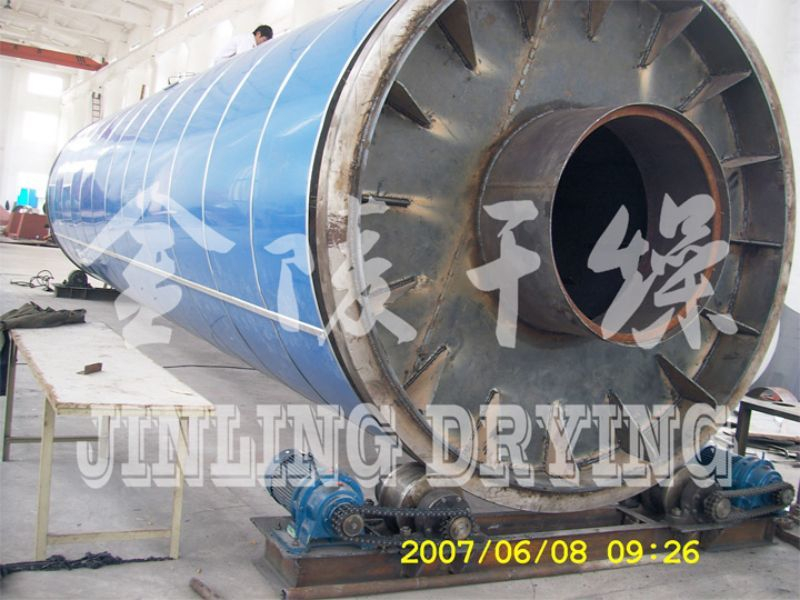

The rotary dryer has a cylindrical body that is slightly inclined. The rotation speed is adjustable within a certain range. The wet material is fed into the gylinder by the feeder. The material is evenly dispersed by the shoveling plates that are evenly distributed inside the cylinder. The hot air (cocurrent or countercurrent) passes through the gylinder and meets the material, which accelerates heat and mass transfer, so that the material can be dried in the end. Different shoveling plates will be used depending on the characteristics of the material. This machine has advantages such as simple structure, reliable operation, easy maintenance, and large processing capacity.

Model:
DZG
Brand:
JIANGSU JINLING DRYER

Availability:

Quantity:



Inquire

Product Description

Product Description

Multi-Circulating Rotary Dryer

Applications of Multi-Circulating Rotary Dryer

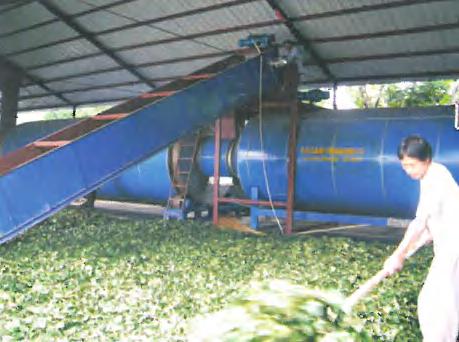

◆This production line has been widely used for drying flaky and fibrous materials such as marigold, ginkgo leaves, alcohol residuals, wood chips, straw, pasture, etc.

◆Professional manufacturing; advanced technology; integrated configurations.

◆Our company can provide diferent processing techniques according to the reQuirements of our customers, and determine the specifications of the equipment based on their needs. We would like the users to have the advanced processing technique, the excellent equipment, and the impeccable service provided by us.

Flow Chart of Multi-Circulating Rotary Dryer

Multi-Circulating Rotary Dryer

Technical Specifications of Multi-Circulating Rotary Dryer

Model	ø1.5x6-10	ø2x12-20	ø2.4x15-20
Evaporated Moisture(kg/h)	400-1200	700-1500	1000-2500
Driving Power(kw)	4x2	5.5x2	7.5x2
Temperature of Inlet Air(℃)	450x700	450x700	450x700
