As industries worldwide face stricter environmental regulations and rising waste disposal costs, efficient sludge treatment has become a top priority. Whether you're managing municipal wastewater, chemical by-products, food processing residues, or pharmaceutical waste, reducing sludge volume is essential for lowering transportation expenses, minimizing landfill usage, and improving sustainability.
One of the most efficient technologies available today is the sludge paddle dryer. Known for its high thermal efficiency, indirect heating design, and low operating costs, this equipment has become the preferred choice for industries requiring reliable and continuous sludge drying.
In this comprehensive guide, you'll learn what a sludge paddle dryer is, how it works, its advantages, applications, selection criteria, maintenance tips, and why it has become one of the most widely used industrial sludge drying systems.
A sludge paddle dryer is an indirect heating industrial drying machine specifically designed to remove moisture from high-moisture sludge, paste-like materials, and semi-solid waste. Unlike direct dryers that expose materials to hot air or combustion gases, a paddle dryer transfers heat through heated metal surfaces, making it more energy-efficient and environmentally friendly.

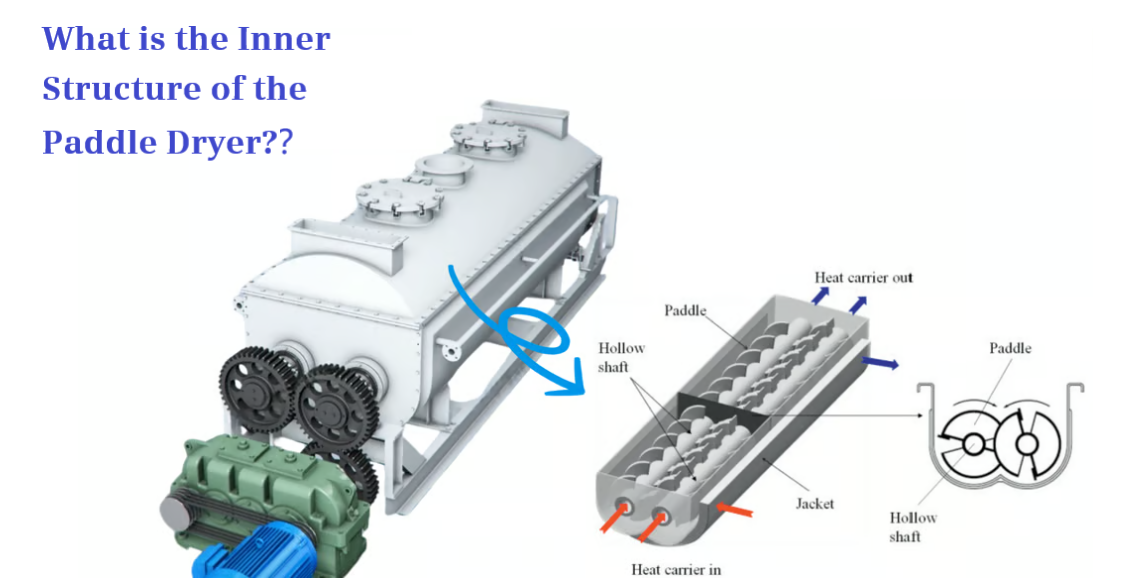

The dryer consists of one or two hollow shafts equipped with wedge-shaped paddles that rotate continuously inside a jacketed trough. Steam, thermal oil, or hot water flows through the hollow paddles and jacket, transferring heat directly to the sludge while preventing contamination from combustion gases.
This indirect drying process can reduce sludge moisture from 80–90% down to 10–30%, depending on the application and process requirements.
The working principle of a sludge paddle dryer is based on efficient indirect heat transfer combined with continuous agitation.
Instead of blowing hot air through the sludge, heat is transferred from the heated paddles and the jacket surrounding the drying chamber. The heating medium—typically steam or thermal oil—circulates inside these components, providing consistent and controlled heating.
This indirect method minimizes heat loss, reduces dust emissions, and improves overall energy efficiency.
The large heat transfer surface created by the hollow paddles allows heat to penetrate the sludge evenly. As moisture evaporates, the generated vapor is collected and removed through an exhaust system or condenser.
The result is faster drying with lower energy consumption compared to many direct drying technologies.
As the shafts rotate, the wedge-shaped paddles continuously stir, crush, and move the sludge forward. This action prevents material from sticking to the heated surfaces and ensures every particle comes into contact with the heating surface.
The combination of mixing and conveying allows the dryer to operate continuously while maintaining uniform product quality.
Understanding the main components helps explain why paddle dryers perform so efficiently.
The hollow shaft transports the heating medium while supporting the paddles. Because it also acts as a heating surface, it significantly increases the total heat transfer area.
These specially designed paddles maximize heat transfer while simultaneously mixing and transporting the sludge. Their self-cleaning motion reduces material buildup and improves drying consistency.

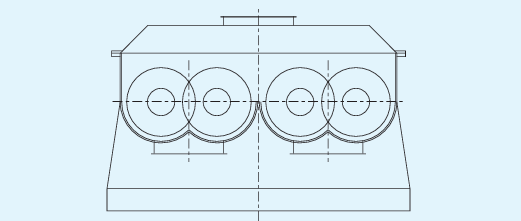

Jiangsu Jinling Drying Design the Round Plate paddles with high efficiency and better application on sludge drying.
The drying chamber is surrounded by a heated jacket, providing additional heat transfer and helping maintain a stable drying temperature throughout the process.
A heavy-duty motor and gearbox rotate the shafts at a controlled speed, ensuring smooth operation even when processing highly viscous or sticky sludge.
Automatic feeding systems introduce wet sludge into the dryer, while screw conveyors or discharge valves remove the dried product continuously, enabling efficient, uninterrupted operation.
Different industries require different drying solutions. The most common types include:
Single shaft models are suitable for smaller production capacities and materials with moderate viscosity. They are compact, easy to operate, and cost-effective.
Twin shaft paddle dryers feature two intermeshing shafts that provide more intensive mixing and higher heat transfer efficiency. They are ideal for sticky, high-moisture sludge and large-scale industrial applications.
Vacuum paddle dryers operate under reduced pressure, allowing moisture to evaporate at lower temperatures. They are commonly used for heat-sensitive materials, hazardous sludge, and products requiring solvent recovery.
Sludge paddle dryers offer several significant advantages over conventional drying systems.
High Thermal Efficiency: Large heated surfaces maximize heat transfer while minimizing energy consumption.
Low Operating Costs: Indirect heating reduces fuel usage and operating expenses.
Compact Design: Requires less installation space than many alternative drying systems.
Continuous Operation: Ideal for large-scale industrial production with consistent throughput.
Minimal Dust Generation: Since hot air is not the primary drying medium, dust emissions are greatly reduced.
Wide Material Compatibility: Suitable for sticky, pasty, granular, and semi-solid materials.
Low Maintenance: The robust design and self-cleaning paddles reduce maintenance requirements.
Environmental Compliance: Closed-system operation helps control odors and emissions.
Sludge paddle dryers are widely used across numerous industries.
Wastewater treatment plants use paddle dryers to reduce sludge volume before incineration, landfill disposal, or agricultural reuse.
Chemical manufacturers process hazardous and non-hazardous sludge safely while minimizing disposal costs.
The pharmaceutical industry relies on indirect drying to preserve product quality and safely handle sensitive waste materials.
Food processing facilities use paddle dryers for by-products such as starch residue, brewery waste, and fruit pulp, often converting them into animal feed or biofuel.
Oil refineries and petrochemical plants process oily sludge using paddle dryers to recover valuable hydrocarbons and reduce hazardous waste volumes.
Choosing the right drying technology depends on material characteristics, production capacity, and operating costs.
Belt dryers use hot air to dry sludge gently at lower temperatures, making them suitable for municipal sludge with relatively stable properties. Paddle dryers, however, generally offer higher thermal efficiency and require less installation space.
Rotary drum dryers provide high throughput but often consume more energy because they rely on direct hot gas heating. Paddle dryers achieve similar drying performance with lower energy consumption and better environmental control.
Fluid bed dryers excel at drying free-flowing powders and granules but are not ideal for sticky sludge. Paddle dryers are specifically designed to handle high-viscosity, paste-like materials with excellent mixing and heat transfer.
Selecting the right equipment requires careful evaluation of your process requirements.
Analyze particle size, viscosity, stickiness, abrasiveness, and chemical composition to determine the most suitable dryer configuration.
Both the initial and desired final moisture levels directly influence dryer size, heating requirements, and residence time.
Steam is the most common heating medium, but thermal oil or hot water may be more appropriate depending on your plant utilities and operating temperatures.
Consider both current production and future expansion plans when selecting the dryer's capacity to ensure long-term flexibility.
Energy consumption is one of the largest operating expenses in sludge drying. Paddle dryers reduce these costs through:
High heat transfer efficiency
Low heat loss
Reduced exhaust air volume
Heat recovery opportunities
Optimized residence time
Closed-system operation
These features contribute to a lower total cost of ownership over the equipment's lifetime.
Proper maintenance ensures reliable performance and extends equipment life.
Inspect bearings and seals regularly.
Monitor paddle wear and replace damaged components promptly.
Check heating medium pressure and temperature.
Clean condensate lines to maintain efficient heat transfer.
Lubricate moving parts according to the manufacturer's recommendations.
Verify the operation of sensors, PLC controls, and safety devices.
A preventive maintenance schedule minimizes downtime and helps maintain consistent drying performance.
The sludge drying industry continues to evolve with innovations aimed at improving efficiency and sustainability.
Emerging trends include:
AI-assisted process optimization
IoT-enabled remote monitoring
Smart predictive maintenance
Heat recovery systems
Low-carbon energy integration
Automated moisture control
Enhanced corrosion-resistant materials
Higher levels of process automation
These advancements enable manufacturers to reduce energy consumption, lower emissions, and improve operational reliability.
Most sludge paddle dryers can reduce moisture from approximately 80–90% to 10–30%, depending on the sludge type and process requirements.
Steam is the most widely used heating medium, although thermal oil and hot water are also common in specific applications.
Yes. Because of its enclosed indirect heating design, it is well suited for hazardous, toxic, or odorous sludge when equipped with appropriate vapor treatment systems.
Yes. Most industrial sludge paddle dryers are designed for continuous operation, making them ideal for large-scale manufacturing and wastewater treatment facilities.
Municipal wastewater, chemical processing, pharmaceuticals, food processing, mining, paper mills, and petrochemical industries all commonly use sludge paddle dryers.
A sludge paddle dryer is one of the most efficient and reliable solutions for reducing moisture in industrial and municipal sludge. Its indirect heating technology, high thermal efficiency, continuous mixing, and compact design make it an excellent choice for processing sticky, high-moisture materials while minimizing energy consumption and environmental impact.
Whether you operate a wastewater treatment plant, chemical factory, pharmaceutical facility, or food processing plant, investing in a well-designed sludge paddle dryer can significantly reduce disposal costs, improve resource recovery, and enhance operational efficiency.
When selecting a sludge paddle dryer, evaluate factors such as sludge characteristics, heating medium, processing capacity, automation level, and after-sales support. Partnering with an experienced manufacturer that offers customized engineering, reliable service, and proven drying technology will ensure long-term performance and maximize your return on investment.
By understanding how sludge paddle dryers work and the advantages they offer, you can make an informed decision that supports both your production goals and your environmental sustainability objectives.
