When you are looking for a Double Cone Vacuum Dryer Supplier in China, choosing the right manufacturer is critical to achieving stable drying performance, low energy consumption, reliable operation, and consistent product quality. A double cone vacuum dryer is widely used for drying heat-sensitive, oxidation-sensitive, solvent-containing, and high-value materials in the pharmaceutical, chemical, food, battery, and specialty material industries.
As an experienced vacuum dryer manufacturer in China, Jiangsu Jinling Drying Technology Co., Ltd. provides customized double cone vacuum drying machines for industrial production, pilot-scale applications, and specialized drying processes.
Our double cone vacuum dryers are designed to combine vacuum drying, gentle heating, uniform mixing, and efficient solvent removal in a single closed drying system. This makes them suitable for customers who require controlled drying conditions and reliable moisture reduction.
Whether you are an end user, distributor, equipment dealer, EPC contractor, engineering company, or system integrator, selecting a manufacturer with strong equipment design and customization capabilities can significantly reduce project risk.
A double cone vacuum dryer is a batch-type vacuum drying machine with a rotating double-conical vessel. During operation, the material is continuously lifted and mixed as the vessel rotates, while vacuum conditions reduce the boiling point of moisture or solvents.
This combination allows drying to take place at relatively low temperatures.
Low-temperature drying for heat-sensitive materials
Reduced oxidation under vacuum conditions
Efficient removal of moisture and solvents
Closed-loop processing for solvent-containing materials
Uniform material mixing during drying
Reduced risk of material overheating
Suitable for batch production
Easy adjustment of drying temperature and vacuum level
Suitable for pharmaceutical, chemical, food, and advanced material applications
Flexible customization according to material characteristics
For manufacturers processing valuable or temperature-sensitive materials, vacuum drying technology can provide better product protection than conventional atmospheric hot-air drying.

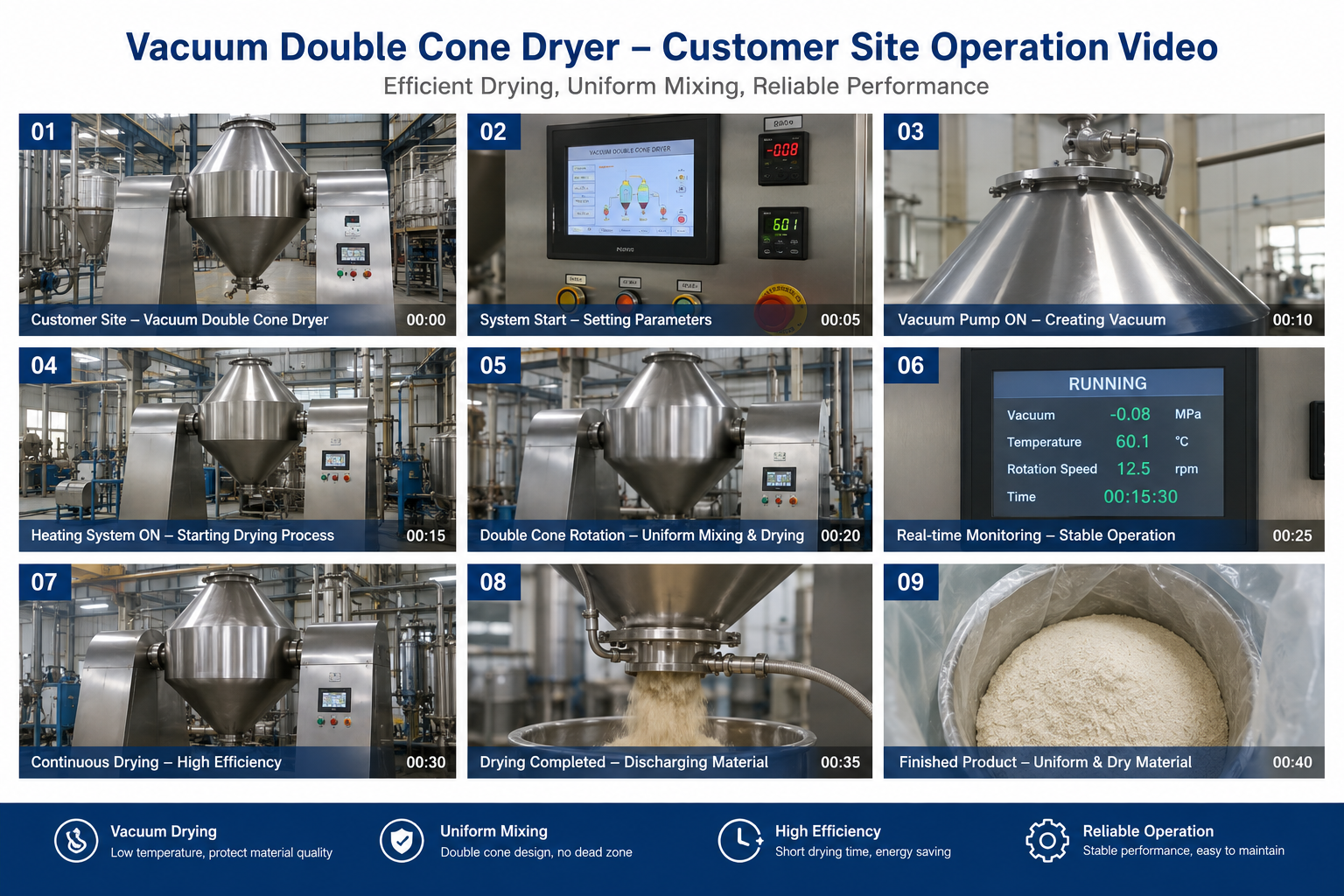

The double cone vacuum dryer machine consists mainly of a rotating double-conical drying chamber, heating system, vacuum system, transmission system, discharge system, control system, and associated accessories.
Wet material is loaded into the vacuum drying chamber. The appropriate filling ratio depends on the bulk density, particle size, stickiness, and flow characteristics of the material.
After the vessel is sealed, the vacuum system reduces the internal pressure.
Under reduced pressure, the boiling point of water and organic solvents decreases. Therefore, moisture can evaporate at a lower material temperature.
The jacket surrounding the drying chamber provides indirect heating.
At the same time, the double cone rotates slowly. The material moves continuously inside the vessel, creating a tumbling and mixing effect.
This helps improve heat transfer and reduces the possibility of local overheating.
As the material is heated under vacuum, moisture or solvent evaporates and is removed through the vacuum outlet.
Depending on the application, the vapor can pass through a condenser, receiver, dust separator, solvent recovery system, or other downstream equipment.
When the required moisture content is achieved, the vacuum is released and the dried product is discharged through the outlet.
This makes the system suitable for closed-batch vacuum drying processes.
When selecting a double cone vacuum dryer manufacturer, customers should look beyond the equipment price.
The most important factors include drying performance, equipment materials, vacuum tightness, heating design, internal surface finish, discharge configuration, control system, and after-sales technical support.
Jinling Drying Technology focuses on providing complete drying equipment solutions based on the customer's material and process requirements.
Different materials require different drying conditions.
For example, pharmaceutical powders may require sanitary construction and high surface finish, while chemical materials may require corrosion-resistant materials or solvent recovery.
We can customize equipment according to:
Material characteristics
Initial moisture content
Final moisture requirement
Processing capacity
Drying temperature
Vacuum level
Heating medium
Batch size
Product discharge requirements
Material contact materials
Solvent characteristics
Explosion-proof requirements
Cleaning requirements
Automation level
The flexibility of vacuum drying makes this equipment suitable for many industries.
In pharmaceutical manufacturing, double cone vacuum dryers can be used for drying pharmaceutical intermediates, APIs, powders, extracts, and other temperature-sensitive products.
A vacuum environment helps minimize oxidation while allowing moisture or solvents to be removed at relatively low temperatures.
For pharmaceutical applications, customers may require:
Stainless steel construction
High internal surface finish
Hygienic design
Closed discharge
Vacuum-tight sealing
CIP-compatible design
Controlled drying temperature
Automated process monitoring
The industrial vacuum dryer is widely used for chemical intermediates, pigments, dyes, catalysts, inorganic chemicals, and other specialty chemicals.
For chemical applications, equipment materials can be selected according to the corrosiveness of the product and process conditions.
Vacuum drying can be used for selected food ingredients, extracts, nutritional materials, and heat-sensitive food products.
Lower drying temperatures can help protect product characteristics while reducing exposure to oxygen.
With the rapid development of battery materials and advanced materials, controlled vacuum drying has become increasingly important.
Depending on the material, double cone vacuum drying equipment may be considered for drying powders, chemical intermediates, specialty materials, and other products requiring controlled moisture levels.
Double cone vacuum dryers can also be used in:
Fine chemicals
Agricultural chemicals
Biotechnology
Nutraceuticals
Mineral materials
Specialty chemicals
Laboratory and pilot-scale production
New material processing
The biggest difference between vacuum drying and conventional hot-air drying is the operating environment.
A hot-air dryer normally relies on heated air to transfer heat and remove moisture. A vacuum dryer reduces the pressure inside the drying chamber, allowing moisture to evaporate at a lower temperature.
For heat-sensitive or oxidation-sensitive materials, vacuum drying can therefore offer significant process advantages.
Feature | Double Cone Vacuum Dryer | Conventional Hot Air Dryer |
|---|---|---|
Operating pressure | Vacuum | Atmospheric |
Drying temperature | Relatively low | Generally higher |
Oxygen exposure | Low | Higher |
Solvent drying | Suitable with proper system design | More difficult |
Heat-sensitive materials | Very suitable | Application dependent |
Batch operation | Yes | Yes |
Material mixing | Continuous tumbling | Depends on dryer type |
Closed processing | Possible | Depends on system |
Solvent recovery | Can be integrated | More complex |
The best drying technology depends on the specific material and process. A professional vacuum dryer supplier should evaluate the material before recommending the final equipment configuration.
Selecting a supplier only by quotation price can create problems later.
A reliable supplier should have experience in designing and manufacturing industrial drying equipment rather than simply trading standard machines.
Look for a manufacturer capable of providing:
Equipment design
Process consultation
Material selection
Mechanical manufacturing
Electrical control
Factory testing
Installation guidance
Technical support
A good vacuum dryer manufacturer should understand the relationship between material characteristics and drying performance.
Important parameters include:
Initial moisture
Final moisture
Material temperature sensitivity
Particle size
Bulk density
Stickiness
Solvent content
Required batch capacity
Drying time
For difficult materials, laboratory or pilot testing can help determine the appropriate drying temperature, vacuum level, rotation speed, heating method, and drying time.
This is especially important for sticky, heat-sensitive, solvent-containing, or high-value materials.
The final configuration should be determined according to the customer's process requirements. Typical parameters considered during equipment selection include:
Parameter | Typical Consideration |
|---|---|
Equipment type | Double Cone Vacuum Dryer |
Operation | Batch |
Heating method | Jacket heating |
Heating medium | Hot water, thermal oil, steam, etc. |
Operating pressure | Vacuum |
Rotation | Variable or fixed speed according to design |
Contact material | SUS304 / SUS316L or customized |
Control | Manual, semi-automatic, or automatic |
Condensation | Optional |
Solvent recovery | Optional |
Discharge | Customized |
Vacuum system | Customized according to process |
The exact equipment size and specifications should be selected after evaluating the material, capacity, moisture content, drying temperature, and required drying cycle.
For engineering companies, EPC contractors, and system integrators, supplier capability is particularly important.
An engineering project may require more than a standalone dryer.
The complete system may include:
Double Cone Vacuum Dryer → Vacuum System → Condenser → Solvent Receiver → Vacuum Pump → Control System
Depending on the application, additional equipment may include dust filtration, solvent recovery, nitrogen protection, explosion-proof electrical components, weighing systems, and automated valves.
A manufacturer capable of supplying customized equipment can make project integration easier.
For distributors and equipment dealers, choosing a reliable China vacuum dryer supplier can create long-term business opportunities.
A professional manufacturer should provide:
Technical drawings
Product specifications
Installation dimensions
Commercial documentation
Technical support
Customized equipment
Factory inspection support
Export packaging
Spare parts support
This enables distributors to offer a complete drying solution to their customers rather than competing only on equipment price.
China has become an important global manufacturing center for industrial drying equipment.
Chinese manufacturers can provide competitive pricing while offering customized equipment for different industries and international markets.
However, not every supplier has the same manufacturing capability.
When sourcing from China, buyers should evaluate:
Manufacturer experience
Production facilities
Engineering capability
Quality control
Material certification
Factory testing
Export experience
Technical documentation
After-sales support
Customization capability
The objective should be to find a reliable double cone vacuum dryer supplier in China, rather than simply finding the lowest quotation.
Before shipment, industrial drying equipment should be inspected and tested according to the agreed technical requirements.
Depending on the project, factory inspection may include:
Dimensional inspection
Welding inspection
Surface finish inspection
Pressure or leak testing
Rotation testing
Vacuum testing
Heating system inspection
Motor and gearbox testing
Electrical control testing
No-load operation testing
For customized equipment, factory acceptance testing can help identify potential issues before installation at the customer's facility.
To receive an accurate quotation, buyers should provide as much process information as possible.
Please provide:
Material name
Initial moisture content
Target final moisture
Processing capacity
Batch size
Material temperature limitation
Drying temperature
Solvent content, if applicable
Required vacuum level
Heating medium
Material contact requirements
Whether nitrogen protection is required
Whether solvent recovery is required
Required automation level
Destination country
The more complete the information, the more accurately the double cone vacuum dryer supplier can select the equipment size and configuration.
A double cone vacuum dryer is a batch vacuum drying machine that uses indirect heating and continuous vessel rotation to dry materials under reduced pressure.
It can be used for many powders, granules, pharmaceutical intermediates, chemical products, food ingredients, specialty materials, and other products requiring controlled vacuum drying.
Yes. Vacuum operation lowers the boiling point of moisture and solvents, allowing many products to be dried at lower temperatures than conventional atmospheric drying.
It can be designed for solvent-containing materials. The complete system should be engineered according to the solvent properties, safety requirements, vacuum system, condenser, and applicable regulations.
Yes. Equipment capacity, material of construction, heating system, vacuum system, discharge configuration, control system, and other components can be customized according to the process.
A complete system can be configured with vacuum pumps, condensers, solvent receivers, control systems, and other auxiliary equipment according to project requirements.
Choosing the right double cone vacuum dryer supplier in China can have a direct impact on drying efficiency, product quality, energy consumption, and long-term operating costs.
Jiangsu Jinling Drying Technology Co., Ltd. focuses on the design and manufacture of industrial drying equipment and customized vacuum drying solutions.
Our double cone vacuum dryer can be configured for different capacities, materials, heating media, vacuum conditions, and application requirements.
Whether you are a direct end user, distributor, equipment dealer, EPC contractor, engineering company, or system integrator, we can evaluate your material and process requirements and recommend a suitable vacuum drying solution.
Send us your material name, capacity, initial moisture, final moisture, drying temperature, and other available process information.
Our engineering team can then evaluate the application and provide a suitable double cone vacuum dryer configuration, technical proposal, and quotation.
