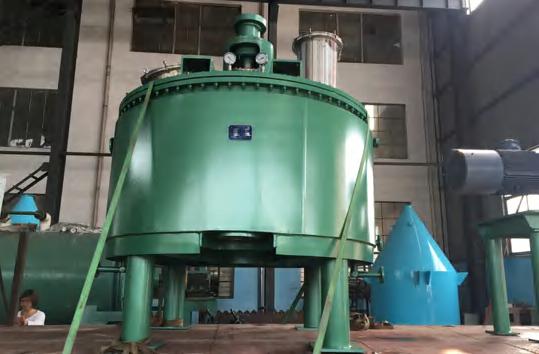

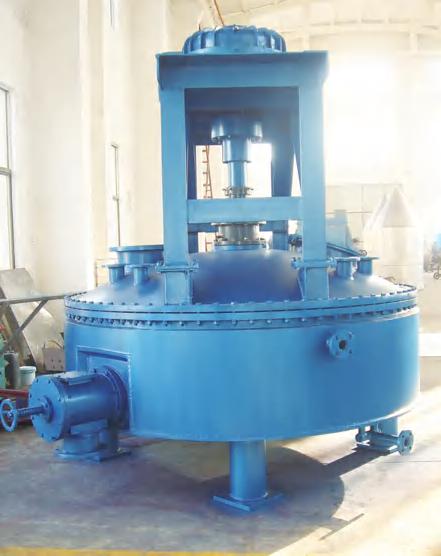

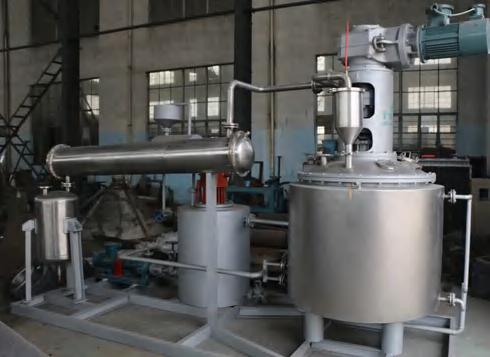

Agitated Pan Dryer

Features

◆Simple structure; easy to clean and maintain; small space required;

◆Jacket heating; low energy consumption with high drying eficiency;

◆Especially for the drying and cooling of pasty materials;

◆Operation under a sealed environment; high vacuum level; long service life for mechanical seal; easy to recycle solvent;

◆According to diferent requirements, different speeds, sealing forms, and stiring blades can be set;

◆Optional materials such as 316L, dual-phase steel, titanium, and ceramic lining are available.

Principle

◆This is a patented product developed, designed, and produced by linling in 2008, and it has been successfully used for battery materials, and materials that are highly viscous or corrosive.

◆The objective of this invention is to propose a vertical mixing vacuum drying method. In the sealed container with jacket heating, under the vacuum condition, as the vertical mixing paddle iscontinuously strring the material added to the system, more surface of the material is exposed, which accelerates the drying speed. The wet air is drawn out by the vacuum pump. The dried material is discharged via the port on the side or on the bottom after a certain amount of time.

Technical Specifications

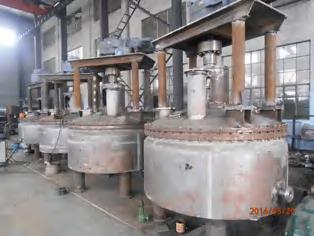

Shipping pictures
