Product Description

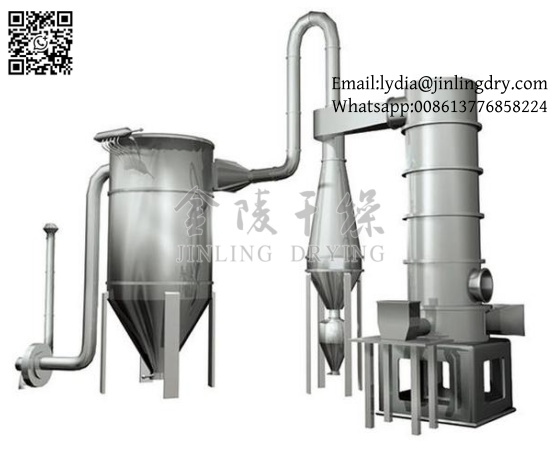

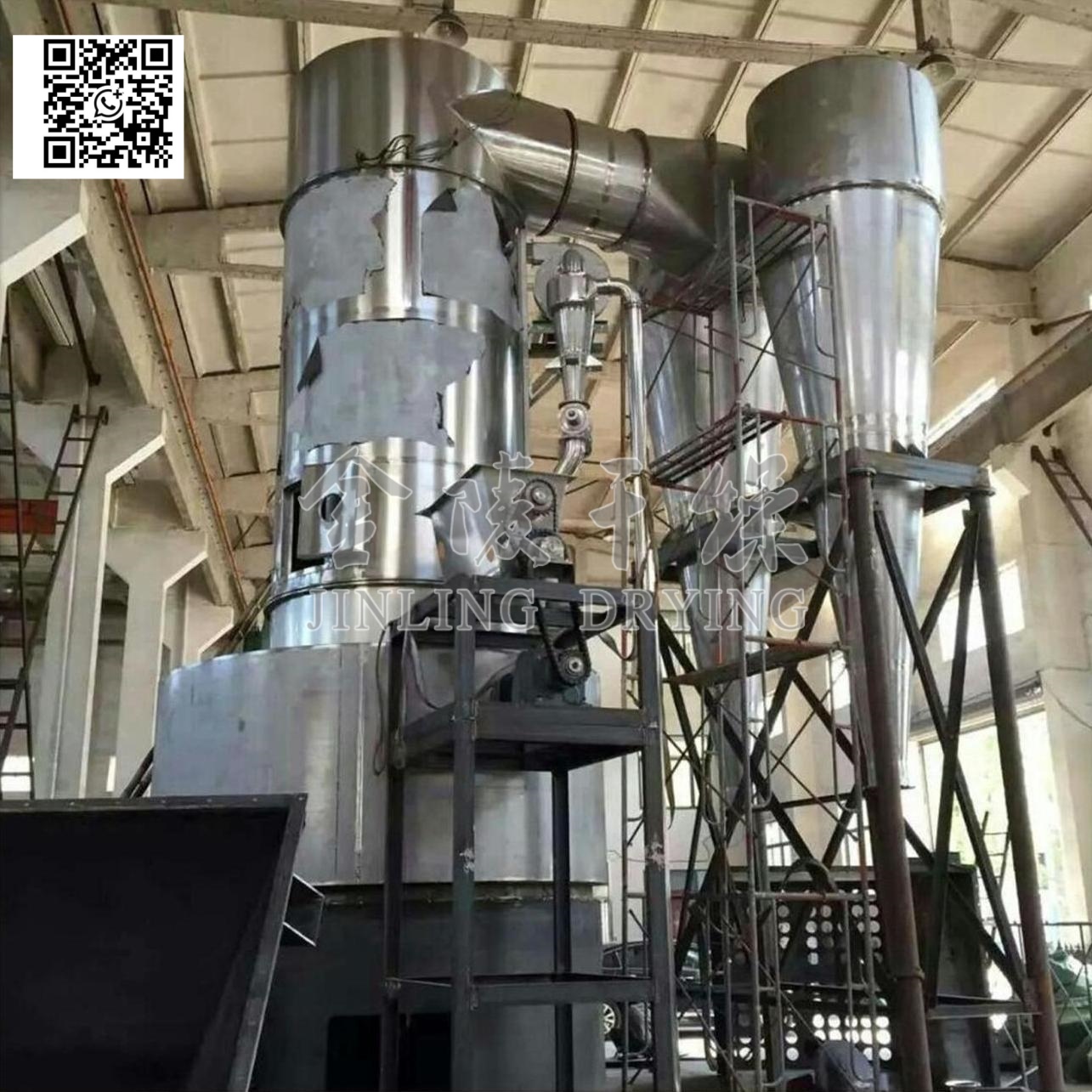

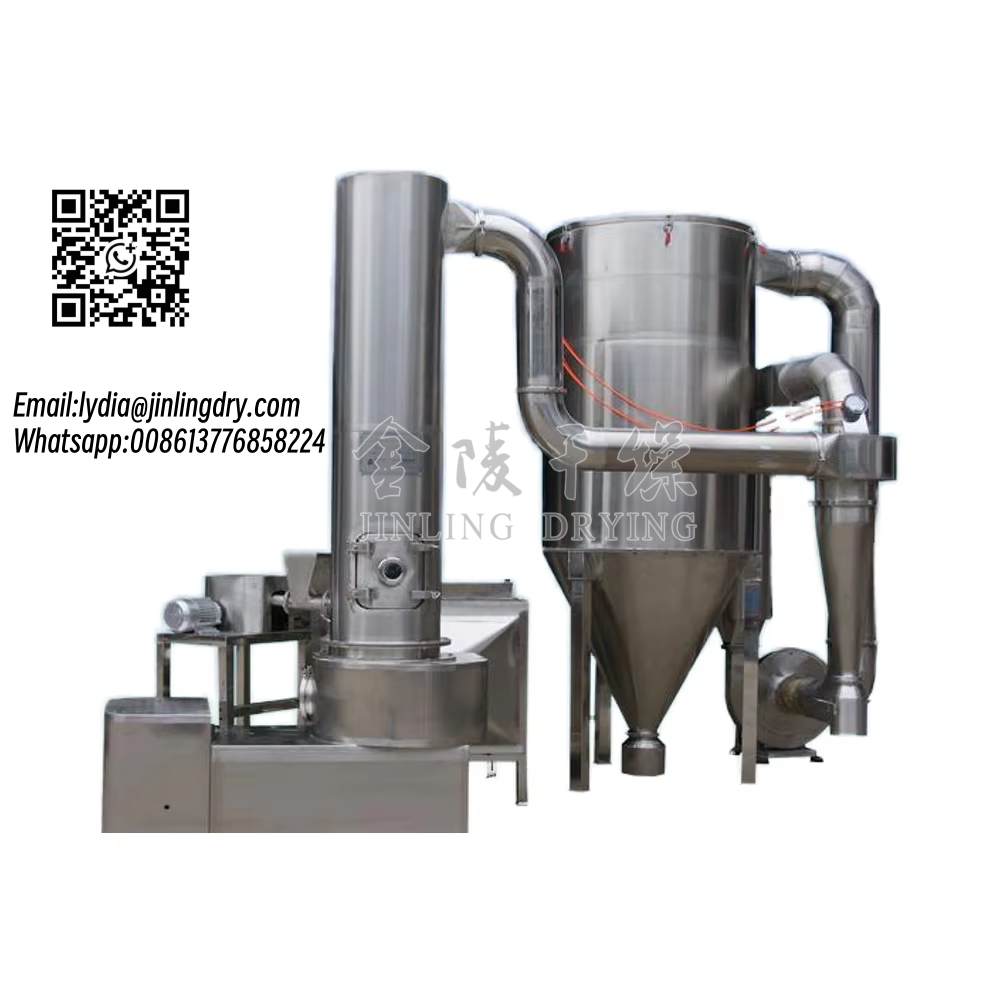

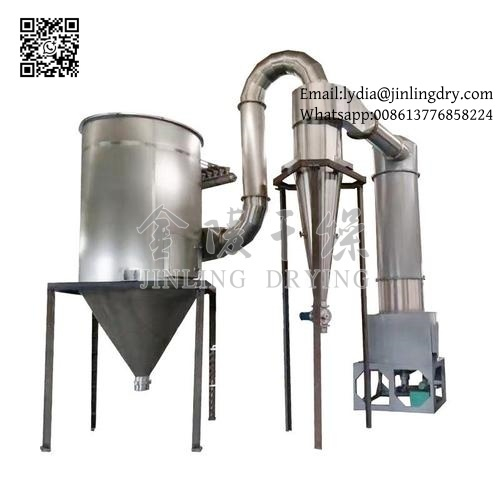

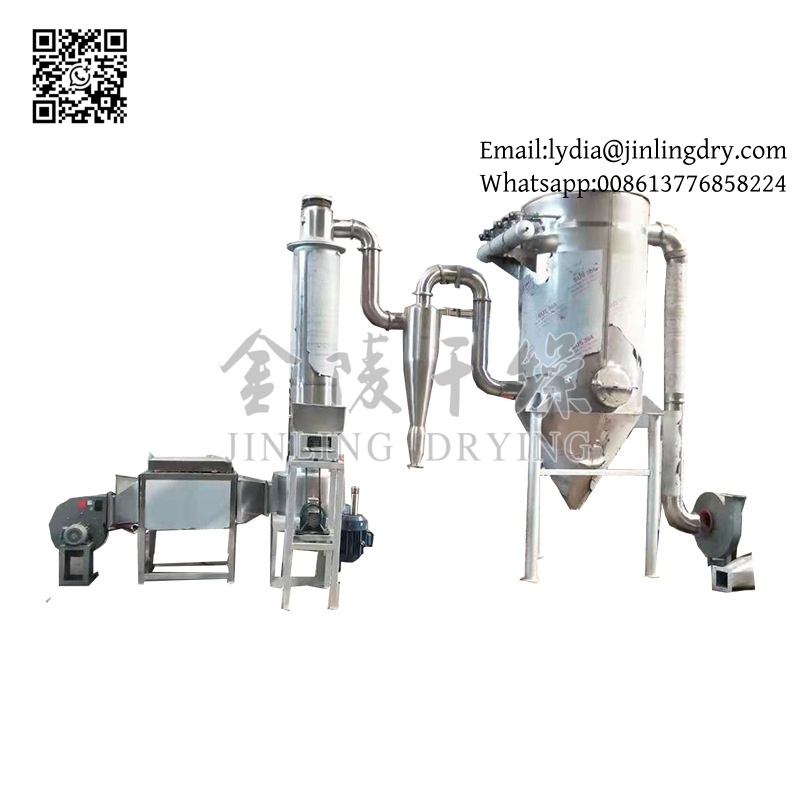

A Spin Flash Dryer is a highly efficient continuous drying system designed for drying filter cakes, pastes, slurries, and wet powders. It combines drying, crushing, dispersing, and classifying into a single compact unit, making it an ideal solution for chemical, pharmaceutical, food, mineral, and environmental protection industries.
The wet material enters the drying chamber where it is rapidly dispersed by a high-speed agitator. Hot air simultaneously contacts the material, resulting in fast moisture evaporation and uniform drying. Fine dried particles are carried away by the airflow and collected through a cyclone separator and bag filter.
The combination of strong turbulence and high-temperature airflow enables moisture to evaporate within seconds, significantly reducing drying time.
The built-in rotor effectively breaks up lumps and agglomerates, ensuring uniform particle size and improved drying efficiency.
Unlike batch dryers, the Spin Flash Dryer provides continuous processing, increasing production capacity and reducing labor costs.
Optimized airflow and heat transfer maximize thermal efficiency while minimizing energy consumption.
The integrated design combines multiple processing functions into one system, saving valuable factory space.

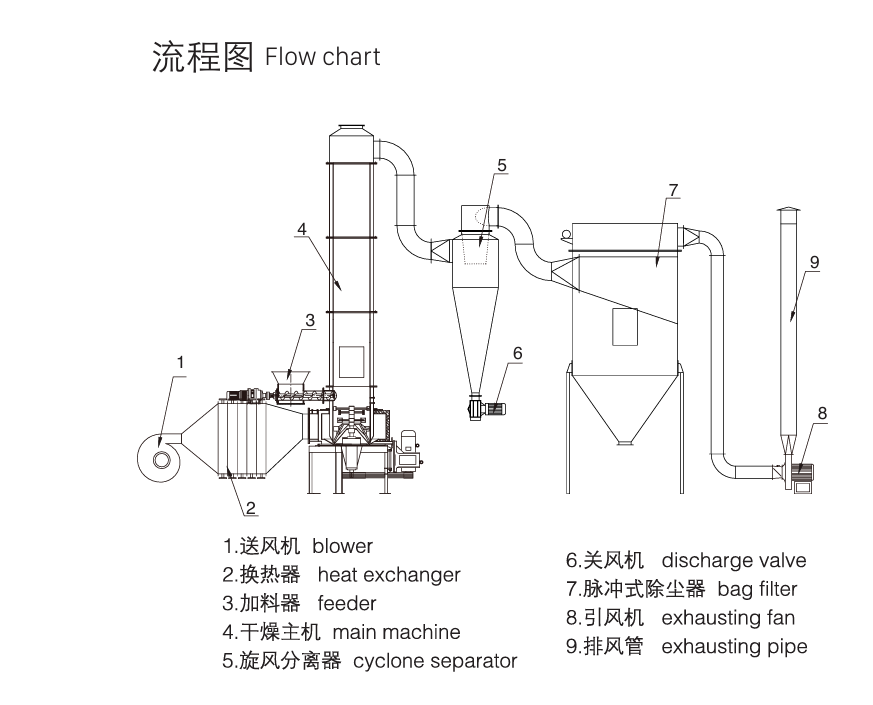

Wet materials are continuously fed into the drying chamber through a screw feeder or conveyor system.
A high-speed rotating blade at the bottom of the drying chamber crushes and disperses the wet material into fine particles.
Heated air enters the dryer tangentially, creating a strong vortex. The dispersed particles are suspended in the airflow and rapidly dried through intensive heat transfer.
The built-in classifier controls particle size. Oversized particles remain in the chamber for further drying and crushing, while qualified particles are discharged.
Dried materials are collected through cyclone separators and pulse bag filters, ensuring high product recovery rates.
Component | Function |
|---|---|
Feeding System | Continuous material feeding |
Drying Chamber | Main drying and dispersion zone |
High-Speed Agitator | Crushing and dispersing wet material |
Air Heater | Provides hot drying air |
Classifier | Controls final particle size |
Cyclone Separator | Primary product collection |
Bag Filter | Fine powder recovery |
Induced Draft Fan | Maintains airflow and negative pressure |
Control System | Automatic operation and monitoring |
The intense turbulence generated inside the drying chamber provides rapid heat and mass transfer.
Precise control of drying temperature and residence time ensures consistent moisture content.
The short drying time minimizes thermal degradation of sensitive products.
PLC and touchscreen controls can be integrated for fully automated operation.
Dust collection systems effectively reduce emissions and meet environmental standards.
Titanium dioxide
Calcium carbonate
Zinc oxide
Pigments
Dyes
Catalysts
Organic intermediates
API powders
Pharmaceutical intermediates
Herbal extracts
Fine chemicals
Protein powders
Starch products
Food additives
Nutritional ingredients
Sludge treatment
Waste recycling materials
Industrial by-products
Kaolin
Bentonite
Clay powders
Mineral concentrates
Material | Initial Moisture | Final Moisture |
|---|---|---|
Calcium Carbonate | 20-40% | ≤0.5% |
Titanium Dioxide | 25-35% | ≤0.5% |
Zinc Oxide | 20-30% | ≤1% |
Pigments | 20-50% | ≤1% |
Starch | 15-30% | ≤2% |
Filter Cake Materials | 30-70% | Customized |
Actual drying performance depends on material characteristics and process requirements.
Suitable for combustible dust applications with ATEX-compliant components.
Designed for solvent-containing and oxygen-sensitive materials.
Real-time monitoring of temperature, airflow, pressure, and product moisture.
Available in SS304, SS316L, duplex stainless steel, or special corrosion-resistant alloys.
Jiangsu Jinling Drying Technology specializes in the design and manufacture of advanced industrial drying equipment. Our Spin Flash Dryers are engineered to deliver:
High drying efficiency
Stable continuous operation
Customized solutions for various industries
Energy-saving performance
Reliable after-sales support
Global installation and commissioning services
With extensive experience in drying technology, we help customers achieve improved product quality, reduced operating costs, and increased production efficiency.
Spin Flash Dryers are ideal for filter cakes, pastes, slurries, powders, pigments, chemicals, minerals, food additives, and pharmaceutical intermediates.
Depending on the material, moisture can typically be reduced from 20–70% down to less than 1%.
Yes. It is specifically designed for continuous industrial processing and large-scale production lines.
Yes. Air temperature, capacity, construction materials, control systems, and explosion-proof features can all be customized according to customer requirements.
Please provide material name, moisture content, processing capacity, final moisture requirement, and heating source. Our engineers will recommend the most suitable model and process design.
Whether you process chemicals, pharmaceuticals, food ingredients, minerals, environmental waste, or battery materials, Jinling Drying Technology can provide a tailor-made Spin Flash Dryer to improve productivity, reduce energy costs, and deliver consistent product quality.
Contact our engineering team today for a free material evaluation, process consultation, and customized quotation.
