Views: 0 Author: Site Editor Publish Time: 2024-07-18 Origin: Site

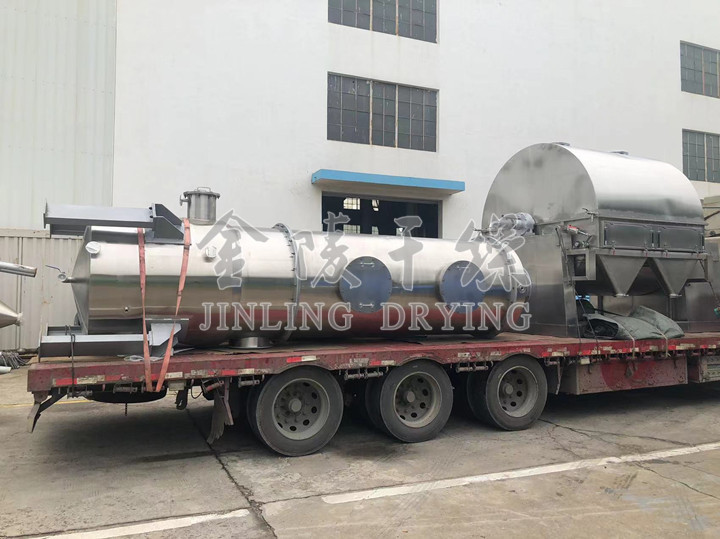

Recently, Jiangsu Jinling Drying successfully delivered a non-standard drum dryer to a customer. This delivery not only showcases the company's strong capabilities in customized equipment manufacturing but also highlights its excellence in meeting diverse customer needs. The non-standard drum dryer was meticulously designed according to specific customer requirements, ensuring optimal performance in real-world production environments.
A drum dryer is a type of internal heating conduction rotary continuous drying equipment. It adheres a certain thickness of material film to its rotating drum through lower, middle, or upper material troughs. The outer wall of the drum is heated using a heat carrier, which then conducts heat to the material film, causing moisture within the film to evaporate quickly. Dehumidified vapor is discharged via an induced draft fan, while the dried material is scraped off the drum by a scraper device and transported out by a screw conveyor.
Adjustable Parameters for Optimal Performance
Drum dryers offer significant flexibility by allowing adjustments to parameters such as feed concentration, film thickness, medium temperature, and drum speed. These adjustments enable optimal drying efficiency across various materials and production requirements. Whether you are processing food products, chemicals, or pharmaceutical ingredients, a properly configured drum dryer can significantly enhance your production process.
Internal Conduction Direct Heating
One of the standout features of drum dryers is their high thermal efficiency. With all heat dedicated to evaporating moisture from the drum film, these systems achieve efficiencies of 80% to 90%. This makes them not only environmentally friendly but also highly cost-effective for long-term use.
Quick Moisture Evaporation
The typical drying cycle for materials in a drum dryer lasts only 10 to 15 seconds, making it incredibly fast compared to other drying methods. Furthermore, due to the thinness of the film applied to the drum wall (generally between 0.3 to 1.5mm), the surface can maintain an evaporation rate of 10 to 50 kg.H2O/m².h.
Single or Double Drum Configurations
Design options for drum dryers include single or double drum configurations, inner drum or jacket heating structures, and materials like stainless steel, cast steel, or carbon steel with chrome plating. Additionally, steam or thermal oil heating forms can be selected based on the specific needs of the application.
Flexible Scraping Mechanisms
Depending on the characteristics of the materials being processed, different fabric structures and scraping mechanisms—such as upper or lower scraping methods—are employed. Scrapers can be flexible or hard, with adjustment methods ranging from manual to pneumatic structures. Optional accessories like feeding pumps, agitators, discharging machines, dust collectors, and washing towers can further customize the system to meet specific operational needs.
Professional Experience and Innovation
Jiangsu Jinling Drying boasts strong technical capabilities, and its design and manufacturing team have over ten years of professional experience. Their products are renowned for being simple yet durable, easy to operate, and adaptable to different materials. Each structure is tailored to pursue the best possible performance, ensuring customers receive solutions that perfectly match their unique requirements.
Consultation and Collaboration Opportunities
For manufacturers seeking innovative drying solutions, Jiangsu Jinling Drying stands ready to provide exceptional service and support. Whether you require custom designs, technical consultations, or comprehensive after-sales services, they are prepared to deliver. Contact them today to explore how their advanced drum dryer technologies can revolutionize your production processes.
This successful delivery of a non-standard drum dryer marks a significant step forward for Jiangsu Jinling Drying in meeting personalized customer needs. In the future, the company will continue to focus on technological innovation and service optimization, helping more enterprises achieve efficient production and sustainable development.
