DWF
JIANGSU JINLING DRYER
84193990
| Quantity: | |
|---|---|
Product Description

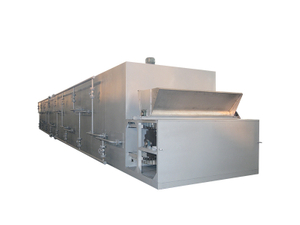

◆The material is evenly spread on the mesh belt by the feeder. The mesh belt is generally made from 12 -60 mesh stainless steel wire, which is dragged and moved in the dryer by the transmission device. The dryer is composed of several units, and each unit is independently heated by the circulation of hot air. The hot air passes through the mesh belt covered with the material from bottom to top or from top to bottom, in order to complete the process of heat conduction and mass transfer. During this process, the water contained in the materialis removed, and some of the exhaust gas is discharged by the dehumidifying fan. The mesh belt moves slowly inside the chamber, and the moving speed can be adjusted according to the moisture level of the material. The number of the circulation units for drying and the number of the layers can be determined according to the requirements of our customers.
◆linling is a professional manufacturer of belt dryer In 2016, our company produced the belt dryer that is designed with our innovations for processing graphene specifically, and the application of this dryer achieved great success.
◆This machine is widely used for drying materials with good air permeability such as flakes, strips and granules. It is particularly suitablefor materials that have high moisture content, but require low drying temperature, such as dehydrated vegetables, and Chinese herbal medicines.
◆These dryers have the advantages such as fast drying speed, high level of automation and low energy consumption.
◆For materials such as sludge and filter cake, they need to be granulated before being uniformly dried.
◆Depending on the material, different heating, air distribution, feeding and circulation methods can be selected. Diferent materials such as wire mesh, conveying chain mesh, non-stick mesh belt, PTFE mesh belt, punching mesh plate can be used for making the mesh belt.
◆According to the requirements of our customers , optional cleaning device, sweeping device, distributing device and dust removal device can be added to the dryer.
Technical Specifications of DWF Belt Dryer
| Model | 1.2-8 | 1.2-10 | 1.6-8 | 1.6-10 | 2-8 | 2-10 |
| Unit number | 4 | 5 | 4 | 5 | 4 | 5 |
| Belt width(m) | 1.2 | 1.2 | 1.6 | 1.6 | 2 | 2 |
| Drying section length (m) | 8 | 10 | 8 | 10 | 8 | 10 |
| Thickness of the material(mm) | 10-80 | |||||
| Temperature(℃) | 60-150 | |||||
| Steam pressure(Mpa) | 0.2-0.8 | |||||
| Steam consumption(kg/h) | 120-300 | 150-375 | 150-375 | 170-470 | 180-500 | 225-600 |
| Drying time(h) | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 |
| Drying strength (kgH,O/h) | 60-160 | 80-220 | 75-220 | 95-250 | 100-260 | 120-300 |
| Total power of the blower(kw) | 8.8 | 11 | 12 | 15 | 16 | 20 |
| Total power of the dryer(kw) | 10.1 | 12.3 | 13.3 | 16.3 | 17.3 | 21.3 |
Pre-service
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;
Sale service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents meet customer’s requirements.
After-sale service
Provide considerate services to minimize clients’ worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.
Service commitment
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you
Jiangsu Jinling Drying Technology Co., Ltd. was founded in 2000, as an innovation-oriented enterprise specialized in advanced technology.We have over 30 years of experience in machine manufacturing. We have achieved more than fifty national level patents and ten provincial level certificates for new high-tech products. There are more than 120 employees in our factory, Jinling is professionally engaged in designing, manufacturing over 30 series of drying equipment, environmental protection equipment, evaporation & concentration equipment and dry granulation equipment which are widely used for environmental protection field, chemical field, food field, national defense field etc.
Jinling is the qualified manufacturer of special pressure vessel, established the biggest drying & granulating testcenter in China, and passed the examination of ISO 9001, ISO 14001, OHSAS18001 and CE certification.Jinling's equipment has been spread all over China and has been exported to over 40 countries.
