Product Description
A Vacuum Conical Dryer (VCD) is an advanced drying system designed for low-temperature drying of heat-sensitive, oxidizable, and high-value materials. By operating under vacuum conditions, it significantly reduces boiling points, enabling efficient moisture removal without degrading product quality.
This equipment is widely used in pharmaceutical, chemical, food, and battery material industries, ensuring uniform drying, minimal contamination, and energy efficiency.
Operates under vacuum to reduce drying temperature
Ideal for heat-sensitive materials and solvents recovery
Conical structure ensures complete material movement
Prevents dead zones and improves drying consistency
Lower energy consumption compared to conventional dryers
Supports closed-loop solvent recovery systems
Fully enclosed system prevents contamination
Suitable for GMP pharmaceutical production
The vacuum conical dryer operates by:
Loading wet material into the conical chamber
Applying vacuum to reduce pressure
Heating the jacket to evaporate moisture
Condensing and collecting vapor for reuse
Equipped with an agitator or screw system
Ensures continuous mixing for uniform heat transfer
| Parameter | Specification Range |
|---|---|

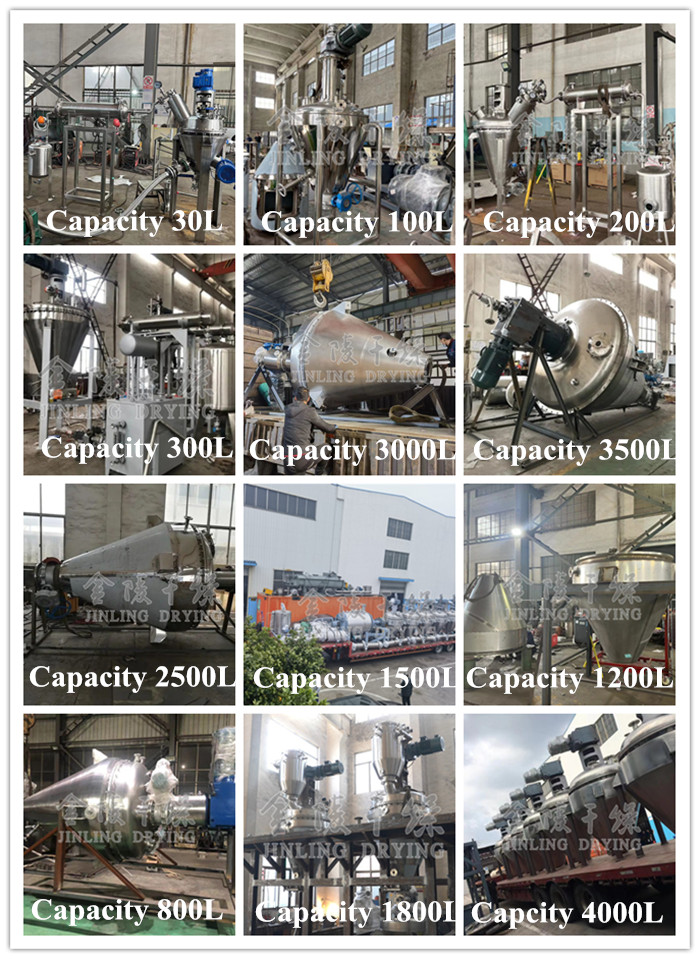

| Total Volume | 100 – 5000 L |
| Working Volume | 50% – 70% of total volume |
| Heating Method | Steam / Hot water / Thermal oil |
| Vacuum Degree | -0.096 to -0.099 MPa |
| Drying Time | 2 – 10 hours (depending on material) |
| Material Contact Parts | SS304 / SS316L |
| Motor Power | 2.2 – 30 kW |
Active pharmaceutical ingredients (API)
Intermediates and fine chemicals
Organic solvents
Resins and polymers
Nutritional powders
Flavorings and additives
Lithium battery powders
Cathode and anode materials
Faster drying time
Better uniformity
Reduced labor costs
Lower operating temperature
Suitable for high-purity materials
Less product degradation
We specialize in designing and manufacturing high-performance vacuum drying equipment, offering customized solutions for different industries.
Optimized heat transfer system
Robust mechanical structure
Long service life
Capacity and material customization
Explosion-proof design (optional)
PLC automatic control system
PLC + HMI control
Real-time monitoring of temperature and pressure
Integrated condenser and receiver tank
Improves sustainability and reduces waste
Electric heating
Steam heating
Thermal oil system
Check seals and vacuum system
Ensure agitator runs smoothly
Use CIP (Clean-In-Place) system if required
Maintain strict hygiene standards
It is ideal for heat-sensitive, toxic, or easily oxidized materials, including pharmaceuticals, chemicals, and food powders.
Vacuum lowers the boiling point of liquids, enabling faster drying at lower temperatures, preserving product quality.
Yes, it can be equipped with a condenser system to recover valuable solvents.
The Vacuum Conical Dryer is a reliable, energy-efficient, and versatile drying solution for modern industrial applications. With its uniform drying performance, low-temperature operation, and GMP compliance, it is the preferred choice for high-value materials.
